EATON 300AA00082A Contactor Coil

Description

EATON 300AA00082A Contactor Coil

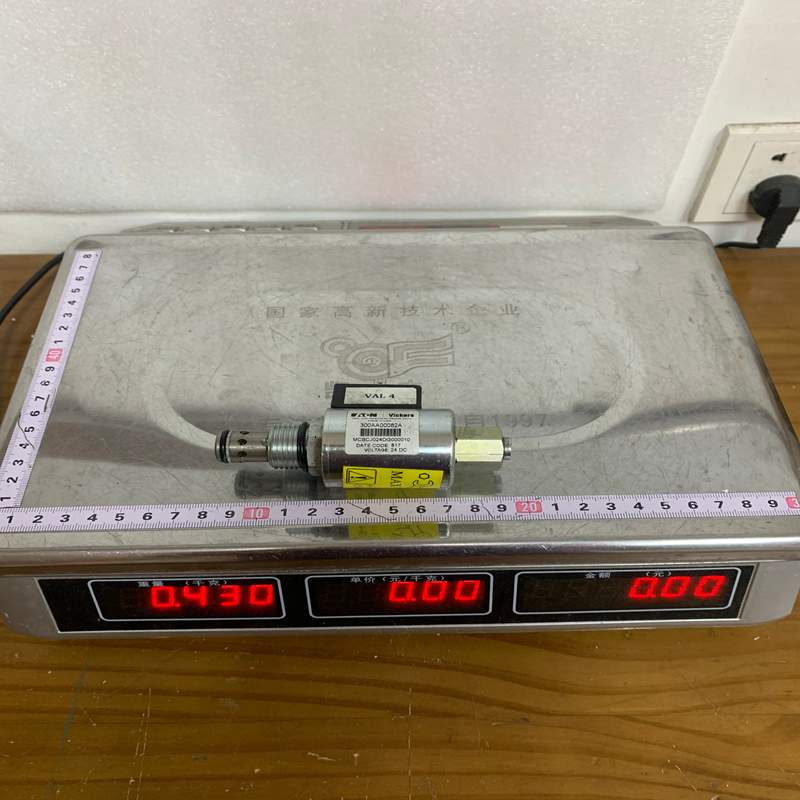

The Eaton 300AA00082A (Model Code: MCSCJ024DG000010, part of the Vickers/Danfoss ToughCoil™ series) is a heavy-duty hydraulic solenoid valve coil. It generates an electromagnetic force to actuate screw-in cartridge valves (SICV) used in hydraulic manifold blocks and fluid power systems.

Detailed Description

Constructed with a glass-filled nylon encapsulation, this coil is engineered to withstand extreme environmental conditions, severe thermal shocks, and continuous vibration. It features a standard 13 mm inner diameter (ID) bore designed to slide directly onto the armature tubes of Eaton Vickers J-Series (as well as S, P, and H series) cartridge valves.

Technical Parameters

Key Advantages

• Thermal Shock Resistance: Tested to withstand rapid temperature drops (e.g., “Thermal Shock Dunk” tests from 100°C directly down to 0°C) without cracking or dielectric failure.
• High Ingress Protection: Excellent seal against moisture, dust, high-pressure washdowns, and chemical exposure in harsh environments.
• Compact One-Piece Design: Space-saving profile allows easy installation in high-density valve manifolds.
• Internally Rectified Option Integration: Maintains stable magnetic pull and low operating temperatures over continuous, multi-hour operations.

Important Considerations (Precautions)

• Voltage Rating Matching: Ensure the control circuit delivers a stable 24V DC. Operating consistently above 110% nominal voltage will cause excessive heat build-up and premature coil burnout.
• Do Not Energize Unmounted: Never apply power to the coil unless it is installed over a valve tube core/armature. Operating an unmounted solenoid coil leads to rapid thermal buildup and destruction of the coil.
• Proper Gasketing: Always ensure the DIN 43650 connector plug is equipped with its rubber seal gasket and retaining screw to maintain its IP65/IP67 rating.
• Retaining Nut Torque: Hand-tighten or torque the coil retaining nut to the manufacturer’s specified limit; overtightening can deform the coil sleeve housing.

Product Applications

• Mobile Hydraulics: Agricultural harvesters, construction equipment, refuse trucks, and earthmovers.
• Industrial Hydraulics: Stamping presses, injection molding machinery, and automated assembly systems.
• Material Handling: Hydraulic lift platforms, forklifts, and crane control valves.
