Cutler-Hammer 10-6530-3 Contactor

Description

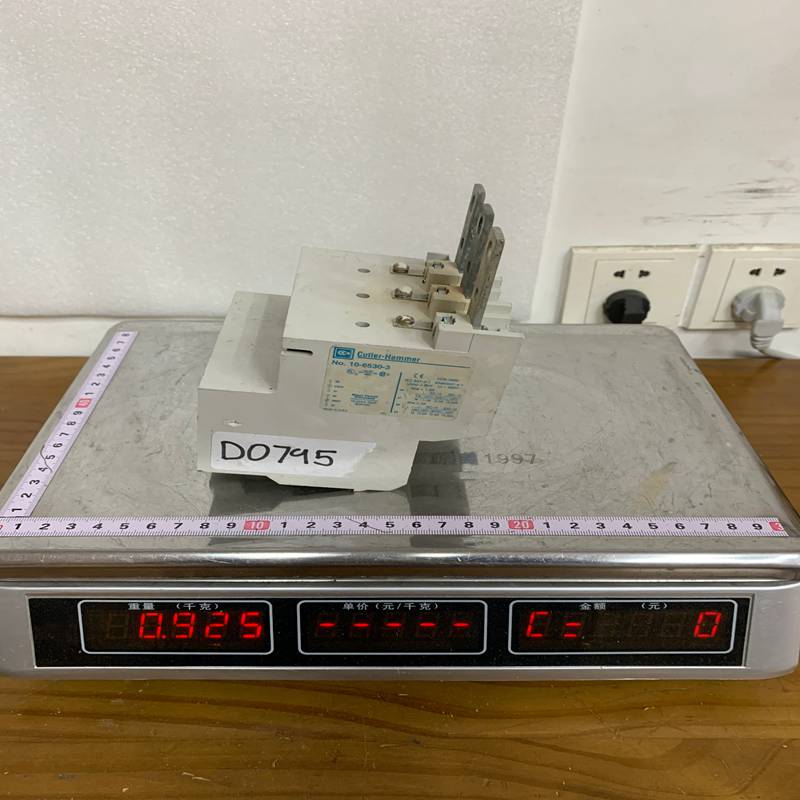

Cutler-Hammer 10-6530-3 Contactor

Product Dimensions：

The Cutler-Hammer 10-6530-3 (now under the Eaton brand) is a high-power Power Supply Board or Gate Driver Board specifically designed for use in heavy-duty industrial motor control systems, most notably the AMPGARD medium-voltage starters and legacy DSV/ISV variable frequency drive systems.

Product Detailed Description

The 10-6530-3 serves as a critical interface between the control logic and the power electronics. Its primary function is to provide the isolated gate signals required to trigger high-current power semiconductors (such as SCRs or GTOs). It ensures precise timing and voltage levels to maintain efficient and safe operation of large-scale motor control equipment.

Technical Parameters

Product Advantages

• Precision Timing: Provides extremely accurate firing pulses, which is essential for maintaining the balance and efficiency of high-power motor starters.
• Ruggedized Design: Built to withstand the harsh electrical environments of industrial plants, including high electromagnetic interference (EMI) and temperature fluctuations.
• High-Voltage Safety: Features extensive isolation barriers to protect sensitive low-voltage control circuits from the high-voltage power sections of the motor drive.
• Direct Compatibility: As an OEM part, it ensures “drop-in” compatibility with legacy Cutler-Hammer hardware, requiring no modifications to the existing chassis.

Important Considerations & Precautions

• Electrostatic Discharge (ESD): This board contains sensitive CMOS components. Always use an antistatic wrist strap and handle the board only by its edges during installation.
• Component Aging: Since these boards are often used in older legacy systems, inspect surrounding electrolytic capacitors and connectors for signs of heat damage or corrosion when replacing this board.
• Safety Lockout: Ensure all medium-voltage sources are locked out and tagged out (LOTO). Wait for the DC bus capacitors in the drive system to fully discharge before accessing the board.
• Configuration: Verify that the jumper settings or DIP switches on the new board match the original board exactly before applying power.

Product Applications

The 10-6530-3 is primarily found in heavy industrial infrastructure:

• Medium Voltage Starters: Used in Eaton’s AMPGARD systems to control large motors in pumping stations and cooling towers.
• Mining & Metals: Control of large conveyor drives, crushers, and mill motors where high-torque starting is required.
• Oil & Gas: Integration into compressor drives and large fan controls in refinery environments.
• Legacy Drive Support: Maintaining and repairing older Eaton/Cutler-Hammer variable speed drive systems that are still in active service.
