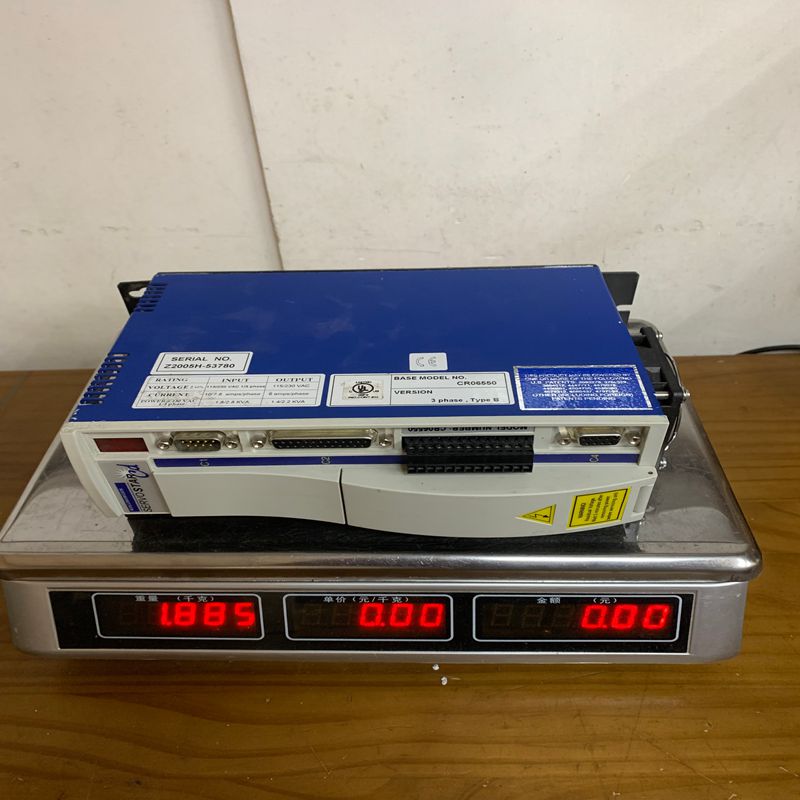

CR06550 Kollmorgen servo driver

Description

CR06550  Kollmorgen servo driver

Product Dimensions：

Product Description

Product Detailed Description

The Kollmorgen CR06550 is a high-performance servo drive amplifier from the SERVOSTAR® CD Series, designed for precise control of acceleration, speed, and operation in industrial servo systems. It is part of Kollmorgen’s CD Servostar line, which is backward compatible with earlier CD Series 2 units, ensuring seamless integration in existing setups. This compact, single- or three-axis drive supports synchronous and industrial motors, incorporating advanced features like analog communication modules, sine encoders, extended I/O interfaces, and encoder emulation for enhanced flexibility. Manufactured in Israel, the CR06550 achieves up to 95% efficiency and is built for reliable, long-term operation in demanding environments, with a lifespan exceeding seven years under optimal conditions. It includes resolver-based feedback for accurate position and speed data, making it suitable for applications requiring high-resolution control.

Product Parameters

Product Advantages

• High Precision and Reliability: Provides accurate control with high-resolution feedback systems, ensuring precise position, speed, and acceleration management for superior performance in dynamic applications.
• Energy Efficiency: Operates at 95% efficiency, reducing energy consumption and heat generation while supporting extended operation (over 7 years) without breakdowns.
• Versatility and Compatibility: Supports a wide range of Kollmorgen motors and motion control systems, with backward compatibility and flexible interfaces (analog, I/O, encoder emulation) for easy integration into new or legacy setups.
• Compact and Robust Design: IP20-rated housing fits in tight spaces, with options for external enclosures; handles peak currents up to 30 A for demanding loads.
• Cost-Effective: Economic addition to the SERVOSTAR family, offering advanced features at a competitive price point for industrial automation.

Notes/Cautions

• Installation and Operation: Only qualified personnel familiar with Kollmorgen products and the drive’s documentation should perform configuration, wiring, installation, or operation to avoid risks of electrical shock, fire, or equipment damage.
• Environmental Protection: The IP20 housing allows penetration by liquids and small solids; always install in an external enclosure meeting at least IP54 standards to prevent ingress and ensure safety.
• Wiring and Grounding: Use proper wiring diagrams from the SERVOSTAR CD Installation Manual. Connect drive and motor grounds in a “star” configuration to minimize noise and ground currents. Adhere to EN55082-2 standards for electromagnetic compatibility.
• Maintenance: Avoid exposure to temperatures outside 5–45°C. Regularly inspect for wear, and consult the CD-Lite Quick Start manual or Variable and Command Reference for troubleshooting.
• Safety Symbols: Heed all alert symbols in the manual to prevent personal injury. Do not exceed voltage/current ratings to avoid overheating or failure.

Product Applications

The CR06550 excels in industrial automation scenarios requiring precise motion control, including:

• Manufacturing and Assembly Lines: For accurate positioning in robotics, pick-and-place systems, and conveyor automation.
• Packaging Machinery: Controls speed and torque in filling, sealing, and labeling equipment for high-throughput operations.
• Material Handling: Drives AGVs (Automated Guided Vehicles) and hoists with reliable acceleration and feedback.
• Printing and Textile Industries: Ensures synchronized motion in high-speed presses and weaving machines.
• CNC and Machine Tools: Supports multi-axis servo systems for milling, turning, and engraving with resolver feedback.
• General Industrial Servo Systems: Ideal for synchronous motor applications in heavy-duty environments like automotive production or food processing (with appropriate enclosures).
