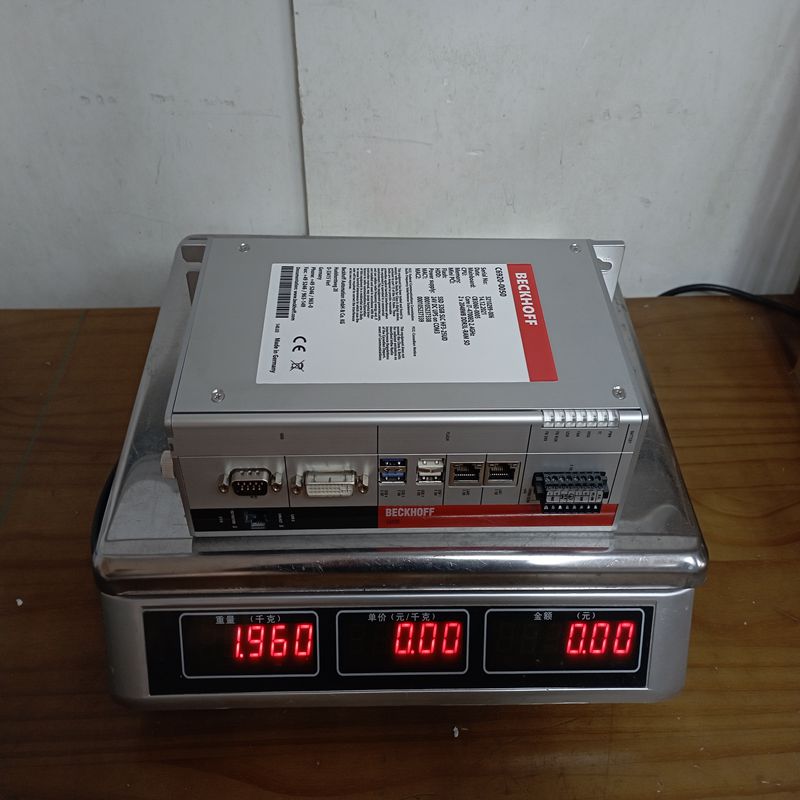

C6920-0050 BECKHOFF control module

Description

C6920-0050 BECKHOFF control module

Product Dimensions：

The C6920-0050 is a specific configuration of Beckhoff’s C69xx series of Control Cabinet Industrial PCs (IPCs). These devices are designed for reliable use in control cabinets in industrial environments.

1. Product Detailed Description

The BECKHOFF C6920 series is a compact industrial PC designed for installation in a control cabinet. It offers high performance within a small footprint, making it suitable for demanding automation and control tasks.

• Design: Extremely compact and space-saving construction, designed for mounting on a mounting plate within an electrical enclosure (control cabinet).

• Operating System: Typically supports industrial operating systems like Windows 10 IoT Enterprise, Windows Embedded Standard, or TwinCAT/BSD.

• Cooling: Often relies on a fan-less design (depending on the exact CPU configuration) for increased reliability and reduced maintenance in harsh environments. The C6920 model is generally known for its robust, passively-cooled aluminum housing.

2. Product Parameters (Typical Specifications for the C6920 Series)

While the -0050 might denote a specific CPU/memory configuration, here are the typical high-level specifications for the C6920 base unit:

3. Product Advantages

• Compactness: Its small physical size saves valuable space within the control cabinet.

• Robustness & Reliability: The rugged, often fan-less design (passive cooling) reduces moving parts, significantly increasing MTBF (Mean Time Between Failures) and making it highly resistant to dust, vibration, and temperature fluctuations common in industrial settings.

• Performance: Uses modern Intel processors, providing excellent performance for complex automation and visualization tasks, especially when running Beckhoff’s TwinCAT automation software.

• Integrated I/O: Designed to seamlessly integrate with Beckhoff’s modular I/O system (Bus Terminals and EtherCAT Terminals).

• Long-Term Availability: Industrial PCs are often designed for long-term availability to ensure consistency for machine builders and large projects.

4. Important Notes (Precautions)

• Ventilation: Although often passively cooled, ensure adequate airflow within the control cabinet to maintain the operating temperature within the specified range, especially if running high-load applications.

• Grounding: Proper grounding of the unit to the control cabinet’s mounting plate is critical for electrical safety and electromagnetic compatibility (EMC).

• Power Supply: Use a stable and regulated 24 V DC industrial power supply that meets the IPC’s maximum current draw requirement.

• Software Backups: Regularly back up the system image/application software stored on the CFast/SSD, as data loss in industrial environments can lead to significant downtime.

• IP Rating: The IP20 rating means it is protected against solid objects larger than 12.5mm but not against water. It must be installed within a properly rated enclosure (control cabinet).

5. Product Applications

The BECKHOFF C6920-0050 is an ideal solution for high-performance machine and plant control across various industries:

• Machine Control: Serving as the central controller (PLC/Motion Control) for complex machinery in packaging, printing, or textile industries.

• Process Automation: Used for controlling and monitoring continuous processes in chemical or pharmaceutical plants.

• Visualization/HMI: Running human-machine interface (HMI) and SCADA applications alongside the control logic.

• Distributed Systems: Acting as a powerful node for data acquisition, logging, and pre-processing in larger, distributed automation networks.

• Industrial IoT (IIoT): Used as an edge device to run analytics, cloud communication, and data aggregation services at the plant floor level.
