B&R X20S06300 Digital Output Module

Description

B&R X20S06300 Digital Output Module

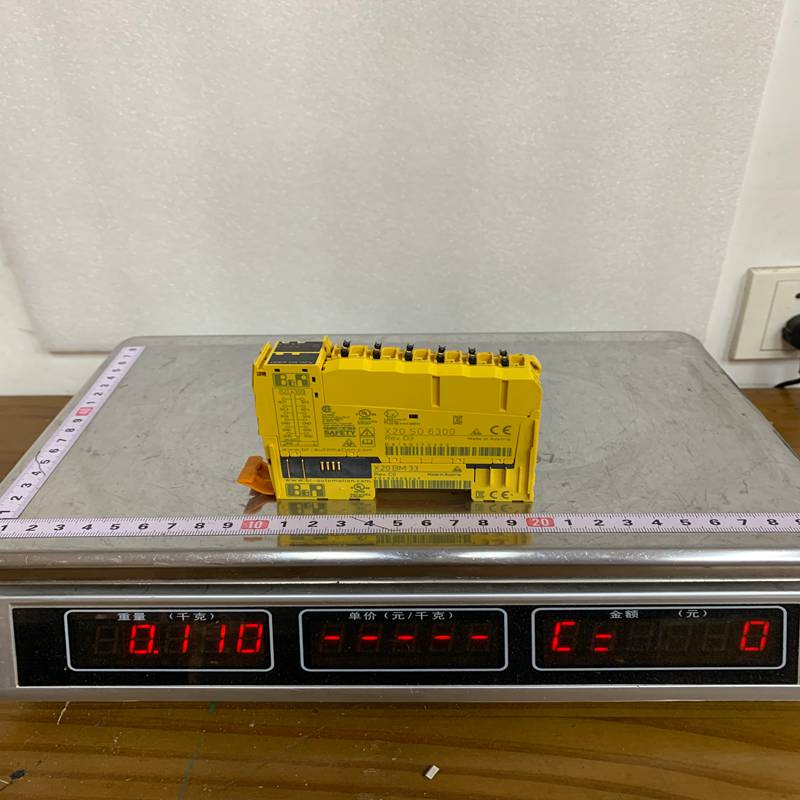

Product Dimensions：

The B&R X20SO6300 is a high-performance Digital Output Module from the X20 System series. It is designed for applications requiring high-density switching of 24 V DC signals with integrated protection and diagnostic features.

Product Detailed Description

The X20SO6300 features 6 digital outputs designed for a 1-wire connection scheme. It is a modular component that snaps onto an X20 bus module and terminal block. Each output is capable of handling up to 2 A of nominal current, making it suitable for driving larger inductive loads like heavy-duty solenoids or small DC motors.

Technical Parameters

Product Advantages

• High Current Density: Unlike standard 0.5 A modules, the X20SO6300 provides 2.0 A per channel, allowing it to drive more powerful actuators without needing intermediate relays.
• Intelligent Diagnostics: The module monitors for short circuits and overloads. If a fault occurs, the module can report the specific channel error to the CPU via the X20 backplane.
• Modular X20 Design: The 3-part construction (Bus module, Base, and Electronics) allows for “Permanent Wiring,” meaning you can replace the electronic module without disconnecting any wires.
• Configurable Response: Through B&R Automation Studio, users can define the “Safe State” behavior of the outputs (e.g., Hold Last State, Switch OFF, or Switch ON) in the event of a network loss.

Important Considerations & Precautions

• Thermal Management: When running all 6 channels at the maximum 2.0 A load simultaneously, ensure the control cabinet has adequate ventilation to prevent overheating.
• Inductive Loads: While the module includes internal protective diodes, extremely large inductive loads may require an external freewheeling diode to prevent voltage spikes from shortening the module’s lifespan.
• Terminal Block Selection: Ensure you use a compatible 12-pin or 6-pin X20 terminal block (e.g., X20TB12) that can handle the total 12 A current throughput.
• Voltage Drop: At 2 A per channel, ensure the wire gauge is sufficient to prevent significant voltage drops over long cable runs to the field device.

Product Applications

• Heavy Actuators: Driving large pneumatic or hydraulic solenoid valves in plastic injection molding or packaging machinery.
• DC Motors: Controlling small 24V brushed DC motors or brake releases on servo motors.
• Heating Elements: Switching small resistive heating cartridges in industrial processing equipment.
• Signal Distribution: Serving as a high-power trigger for remote sirens, strobes, or high-intensity LED lighting systems in automated warehouses.
