Description
B&R 8LSA43.E1030C600-0 Servo Motor

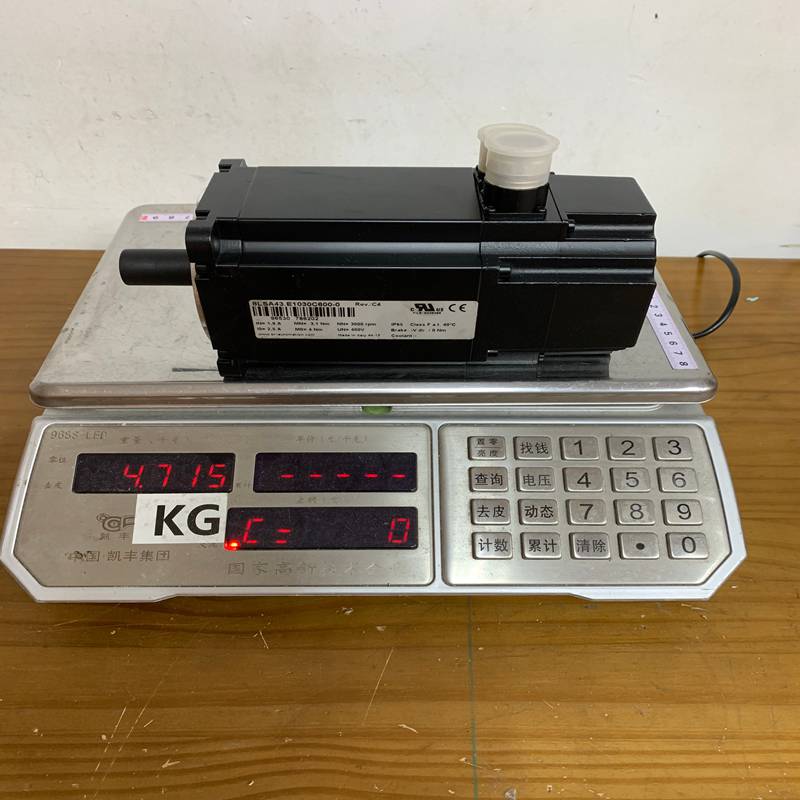

Product Dimensions：
The B&R (Bernecker + Rainer) 8LSA43.E1030C600-0 is a high-performance Synchronous Three-Phase Servo Motor from the 8LSA series. These motors are designed for high-end industrial automation tasks that require exceptional dynamic response, precision, and a compact form factor.
Product Detailed Description
The 8LSA43.E1030C600-0 is a brushless permanent-magnet servo motor. The “8LSA4” indicates the size and power class, while the specific suffixes define its winding type, encoder system, and mechanical interface. It is typically paired with B&R ACOPOS multi or ACOPOS P3 servo drives to achieve high-precision motion control through the Powerlink or CANopen networks.
Technical Parameters
| Feature | Specification |
| Model Number | 8LSA43.E1030C600-0 |
| Rated Speed | 3000 rpm (Typical for 1030 winding) |
| Stall Torque | Approx. 4.0 Nm to 5.5 Nm (Depends on cooling/drive) |
| Encoder Type | EnDat 2.2 (Optical/Inductive high-resolution) |
| Shaft Design | Cylindrical shaft with keyway (Standard) |
| Brake Option | Holding brake integrated (indicated by specific digits) |
| Connection Type | 270° swiveling double-angle plug (Power/Signal) |
| Protection Class | IP64 (Standard), IP65 with optional shaft seal |
| Insulation Class | Class F (up to 155°C) |
Product Advantages
- High Dynamic Performance: Low rotor inertia allows for extremely fast acceleration and deceleration cycles, reducing machine cycle times.
- Precision Feedback: Equipped with an EnDat high-resolution encoder, providing absolute position data and ensuring maximum control accuracy even at low speeds.
- Compact Power Density: The advanced winding technology allows for a smaller physical footprint without sacrificing torque or power output.
- Flexible Installation: The swiveling plug connectors (270°) allow for easy cable routing and installation in tight mechanical spaces.
- Thermal Stability: Designed for efficient heat dissipation, allowing for reliable operation under high-load industrial conditions.
Important Considerations (Precautions)
- Drive Pairing: For optimal performance and safety (including electronic nameplate recognition), this motor should be used with B&R ACOPOS drives.
- Cable Handling: Use original B&R pre-assembled cables. High-frequency interference can occur if signal and power cables are not properly shielded or separated.
- Shaft Loading: Do not exceed the specified radial and axial forces on the motor shaft. Excessive force can lead to premature bearing failure or encoder misalignment.
- Temperature Monitoring: Ensure the integrated temperature sensor (KTY or PT1000) is correctly wired to the drive to prevent winding burnout during overload conditions.
Product Applications
The 8LSA series is widely used in high-speed, high-precision machinery:
- Packaging Technology: Used for pick-and-place robots, capping machines, and high-speed labeling.
- Printing & Paper: Maintaining precise tension and registration in printing presses.
- Metalworking: Driving feed axes in CNC machines or synchronized movements in bending machines.
- Textile Machinery: Controlling spinning, weaving, and high-speed knitting processes.
- Assembly Automation: Serving as the main drive for rotary indexing tables and specialized assembly lines.
