B&R 7CP474.60-1 Central Processing Unit (CPU) Module

Description

B&R 7CP474.60-1 Central Processing Unit (CPU) Module

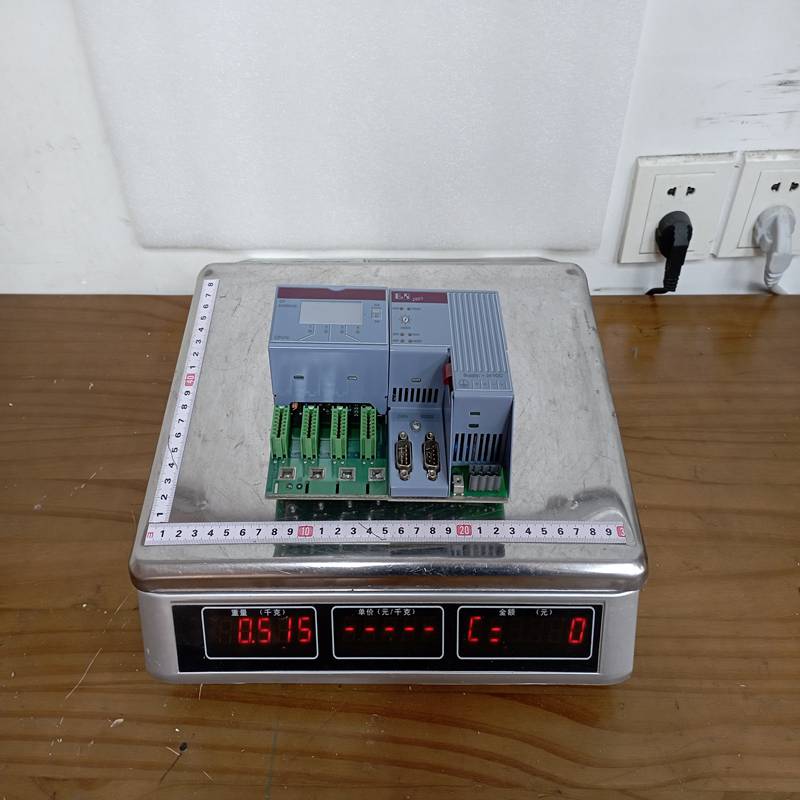

Product Dimensions：

The B&R (Beckhoff & Ritz) CP474.60-1 is a high-performance Compact CPU module from the System 2005 family. Although the System 2005 series is a legacy line, it remains a critical component in many existing industrial plants due to its reliability and specialized processing capabilities.

Product Detailed Description

The CP474.60-1 serves as the “brain” of the control system. It is a modular CPU designed to be inserted into a System 2005 rack. It handles logic processing, data management, and communication between the central controller and distributed I/O modules. The “60-1” variant typically indicates a specific memory configuration and clock speed optimized for medium-to-complex machine control.

Technical Parameters

Product Advantages

• Integrated CAN Interface: Unlike many CPUs of its era, it features a built-in CAN interface, allowing for direct communication with motion drives and remote I/O without extra modules.
• Expandable Storage: The PCMCIA slot allows for easy memory expansion or the use of removable storage cards for program updates and data logging.
• Rugged Longevity: Known for extreme durability in high-vibration and high-temperature environments, common in older manufacturing facilities.
• Seamless Automation Studio Integration: Fully programmable and diagnosable via the B&R Automation Studio software environment, providing powerful debugging tools.

Important Considerations & Precautions

• Battery Maintenance: This module relies on a lithium battery to retain the user program in SRAM and the real-time clock. If the “BATT” LED turns red, the battery must be replaced immediately to avoid data loss during a power cycle.
• Legacy Status: As a legacy component, the CP474.60-1 may have limited availability for new projects. It is primarily used as a spare part or for maintaining existing machines.
• Cooling: Ensure the rack is mounted vertically to allow for natural convection cooling. Dust buildup on the module’s ventilation slats can lead to overheating and processor throttling.
• Firmware Versions: When replacing a module, ensure the hardware revision and firmware version are compatible with your existing project file in Automation Studio.

Product Applications

The CP474.60-1 is widely used in synchronized, high-speed industrial processes:

• Plastics Industry: Controlling injection molding machines and blow molding equipment.
• Packaging Machinery: Managing high-speed labeling, filling, and wrapping lines.
• Textile Industry: Coordinating complex multi-axis movements in spinning or weaving machines.
• Metal Processing: Used in CNC-related tasks and automated metal forming presses.
