B&R 5PP320.1043-39 Operator Panel

Description

B&R 5PP320.1043-39 Operator Panel

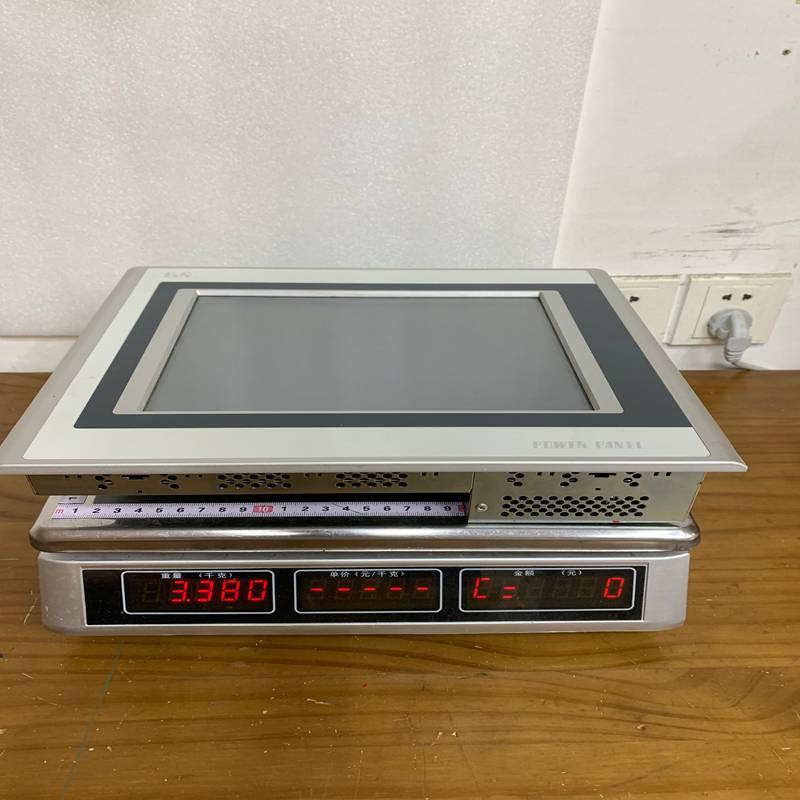

Product Dimensions：

The B&R 5PP320.1043-39 is a high-performance industrial panel PC from the Power Panel 300 series. It serves as an integrated HMI (Human Machine Interface) and controller, designed for demanding automation tasks that require both visualization and logic execution in a single, compact unit.

Product Detailed Description

The 5PP320.1043-39 belongs to the “BIOS-based” Power Panel family. It features a high-quality 10.4-inch VGA Color TFT display with a resistive touchscreen. This unit is built to be fanless, utilizing specialized heat dissipation technology, which makes it highly reliable for industrial environments where dust and vibration are common.

Technical Parameters

Product Advantages

• Integrated Control & Visualization: Combines a PLC and an HMI into one device, reducing wiring complexity and saving space inside the control cabinet.
• Fanless & Diskless Operation: By using CompactFlash for storage and a low-power processor, the unit has no moving parts, which significantly extends its lifespan.
• Modular Communication: Supports various fieldbus expansion modules (e.g., CAN, PROFIBUS, Powerlink) via the integrated expansion slots on the back.
• Longevity: B&R is known for long-term product availability, ensuring that these panels can be maintained or replaced in existing machines for many years.
• Ease of Engineering: Fully integrated into the B&R Automation Studio software environment, allowing for streamlined programming of both the logic and the screen.

Important Considerations & Precautions

• Storage Media: The CompactFlash card containing the operating system and user software must be ordered separately. Ensure you use industrial-grade CF cards to prevent data corruption.
• Touchscreen Care: Avoid using sharp objects (screwdrivers, pens) on the resistive screen; use only fingers or specialized styluses to prevent scratching the protective film.
• Thermal Management: While fanless, ensure there is adequate clearance around the back of the panel within the cabinet to allow for natural convection cooling.
• Gasket Inspection: During installation, ensure the front seal/gasket is properly seated to maintain the IP65 rating against water and dust ingress.

Product Applications

The 5PP320.1043-39 is widely used in medium-to-complex machinery across several sectors:

• Packaging Machinery: Controlling high-speed wrapping, labeling, and filling lines.
• Plastics Industry: Serving as the primary interface and control unit for injection molding or extrusion machines.
• Textile Industry: Managing complex patterns and motor synchronization in weaving and knitting machines.
• Food & Beverage: Used in processing plants where high-resolution visualization and wash-down protection (IP65 front) are required.
• General Motion Control: Acting as a master controller for multi-axis servo systems via Powerlink or CANopen.
