B&R 5PC600.SX02-01 Main Module

Description

B&R 5PC600.SX02-01 Main Module

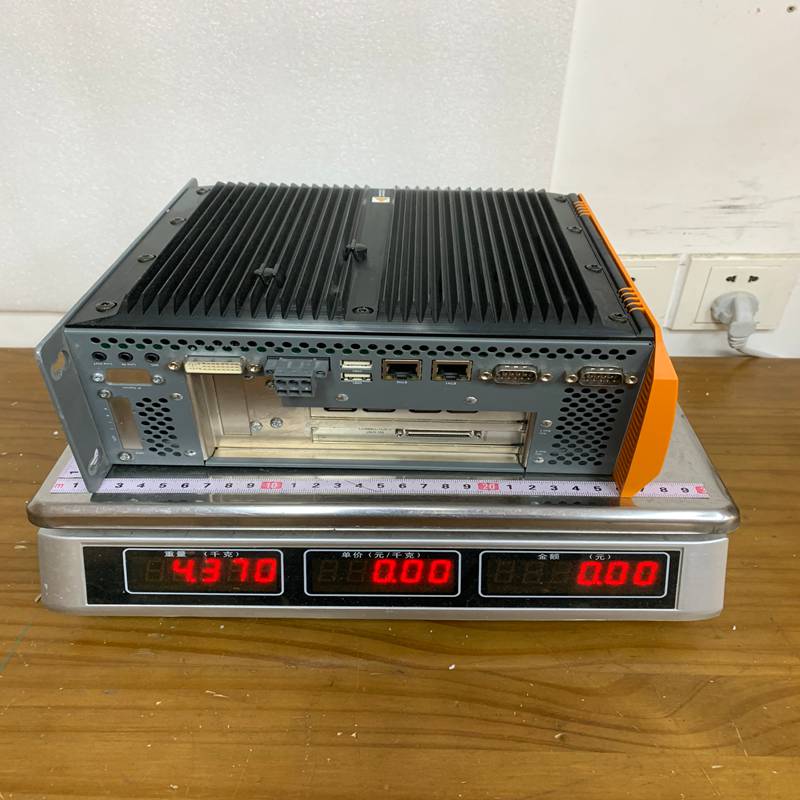

Product Dimensions：

The B&R (Bernecker + Rainer) 5PC600.SX02-01 is a high-performance System Unit belonging to the Automation PC 600 series. This industrial PC (IPC) is designed to serve as the backbone for complex automation tasks, offering a modular architecture that balances robust processing power with industrial-grade reliability.

Product Detailed Description

The 5PC600.SX02-01 is the “base” system unit of the APC600 series. It acts as the housing and main circuit board carrier for the processor (CPU), memory (RAM), and various interface modules. Its modular design allows users to customize the PC with different performance classes of CPUs and different types of slots (PCI or PCI Express) depending on the specific application requirements.

Technical Parameters

Product Advantages

• Modular Architecture: The system is highly scalable. You can swap CPU boards to upgrade performance without replacing the entire PC housing or wiring.
• Industrial Ruggedness: Engineered to withstand high vibration, shock, and electromagnetic interference (EMC) common in factory floors.
• Long-term Availability: B&R designs the APC600 series for longevity, ensuring that replacement parts and identical units are available for years, which is critical for industrial lifecycles.
• Fanless Operation: Depending on the CPU choice, the unit can operate without moving parts, significantly reducing maintenance and increasing the Mean Time Between Failures (MTBF).
• Integrated Graphics & Networking: Designed to handle complex HMI (Human Machine Interface) visualizations while simultaneously managing high-speed fieldbus communication.

Important Considerations (Precautions)

• CPU Board Requirement: Note that the 5PC600.SX02-01 is a System Unit. It requires a separate CPU board (e.g., 5CP600 series) and RAM to be functional.
• Heat Dissipation: Ensure adequate clearance around the unit for airflow. If using high-performance CPUs in high-ambient temperatures, additional fan modules may be required.
• CompactFlash/Storage: Industrial PCs typically use CompactFlash or SSDs. Ensure the storage medium used is “Industrial Grade” to prevent data corruption during power loss.
• BIOS Configuration: Changing BIOS settings without proper knowledge can lead to system instability or failure to boot into the Real-Time Operating System (RTOS).

Product Applications

The 5PC600.SX02-01 is widely used in high-end automation scenarios:

• Machine Control: Acting as the central controller for high-speed packaging, printing, or textile machinery.
• SCADA & Visualization: Running complex HMI software to monitor and control entire production lines.
• Data Gateway: Collecting data from the plant floor (via POWERLINK or Ethernet) and transmitting it to higher-level ERP or Cloud systems.
• Vision Systems: Processing high-resolution images for quality inspection and robotic guidance.
