Description
B&R 4PP065.0571-X74F HMI Controller

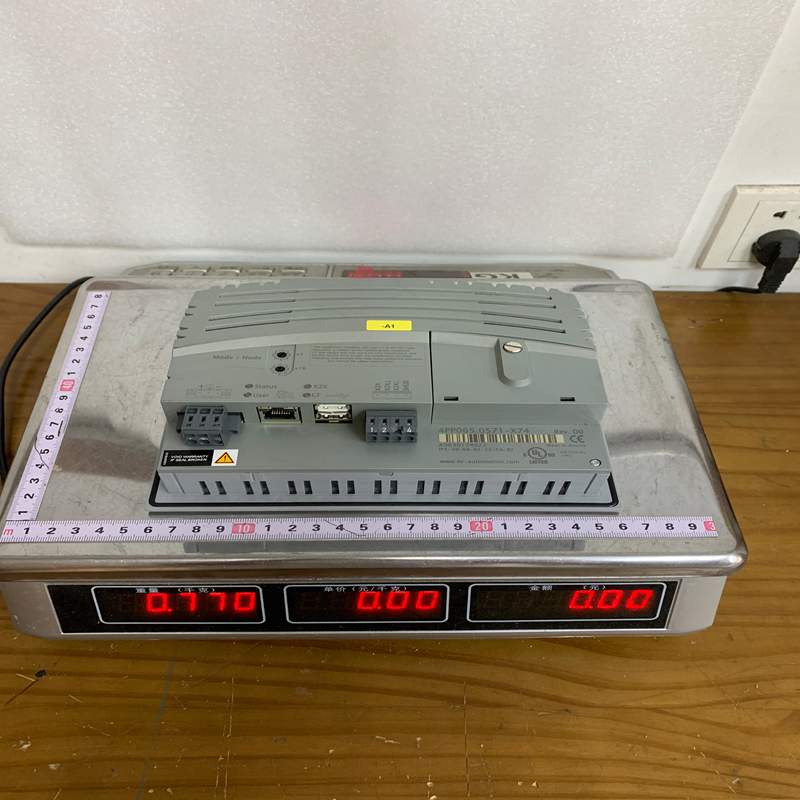

Product Dimensions：
The B&R 4PP065.0571-X74F is a compact Power Panel 65 operator terminal manufactured by B&R Industrial Automation. It integrates a Human-Machine Interface (HMI) with control functionality, making it a space-saving solution for small-to-medium industrial machinery.
Product Detailed Description
The 4PP065.0571-X74F is a panel-mounted HMI unit belonging to B&R’s Power Panel 65 series. Designed for visualization and machine control, it combines a 5.7-inch QVGA color display with integrated soft/function keys. It runs on B&R’s Automation Studio engineering environment, enabling seamless communication with B&R controllers, remote I/O systems (such as X20 I/O), and third-party automation equipment.
Technical Parameters
| Feature | Specification |
| Model Number | 4PP065.0571-X74F |
| Product Line | Power Panel 65 (PP65) |
| Display Diagonal | 5.7 inches |
| Display Type | CSTN / TFT Color LCD |
| Resolution | 320 x 240 pixels (QVGA) |
| Input Method | Keypad / Function Keys (with LED indicators) |
| Processor | x86-compatible processor |
| Supply Voltage | 24 V DC (\pm 20\%) |
| Interfaces | Ethernet (10/100 Mbit/s), POWERLINK / RS232 / USB (model-variant dependent) |
| Front IP Rating | IP65 (when properly gasketed/installed) |
| Rear IP Rating | IP20 |
| Operating Temperature | 0°C to +50°C |
Product Advantages
- Compact All-in-One Design: Combines display and operator input into a single depth-saving unit, reducing enclosure footprint.
- Unified Engineering Environment: Fully integrated into B&R Automation Studio, simplifying screen design, logic programming, and diagnostics under one software tool.
- High Durability: The IP65-rated front overlay protects against dust, moisture, and mild splashes common in factory floor environments.
- Tactile Keypad Feedback: Integrated mechanical keys provide clear tactile feedback for operators wearing industrial gloves, ideal for harsh plant conditions.
Important Considerations (Precautions)
- Gasket Seal: Ensure the front sealing gasket is clean and seated correctly during mounting; improper installation compromises the IP65 ingress protection.
- Power Supply Quality: Use a stabilized 24 V DC SELV/PELV power supply to protect sensitive internal logic board components against voltage spikes.
- Flash Memory & Project Backups: Project data and firmware reside on internal/card memory—always keep a backup of the original
.brproject files in Automation Studio prior to hardware replacement. - Cleanroom/Chemical Exposure: Avoid aggressive chemical solvents when cleaning the front membrane to prevent discoloration or degradation of the keys.
Product Applications
- Packaging Machinery: Local operator panel for baggers, labelers, and pouch-filling equipment.
- Plastics & Injection Molding: Auxiliary control interface for temperature monitoring and cycle adjustments.
- Material Handling: Small conveyor line status displays, sorting stations, and palletizer controls.
- Special-Purpose Machines: Custom OEM machinery requiring a rugged, compact key-operated HMI display.
