B&R 4PP055.0571-K30 5.7″ Color Touchscreen

Description

B&R 4PP055.0571-K30 5.7″ Color Touchscreen

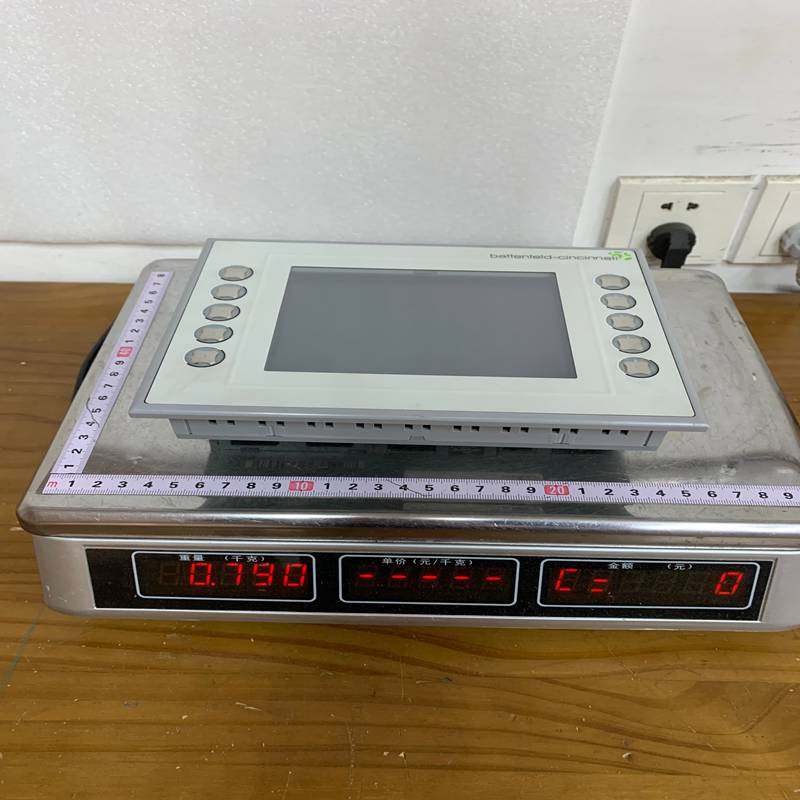

Product Dimensions：

The B&R (Bernecker + Rainer) 4PP055.0571-K30 is an integrated Power Panel 55, combining an HMI (Human-Machine Interface) and a PLC (Programmable Logic Controller) into a single, compact unit. Part of the Power Panel 50 series, it is designed for cost-effective automation tasks where space is at a premium.

Product Detailed Description

The 4PP055.0571-K30 features a 5.7-inch QVGA color display with a resistive touch screen. It acts as both the visualization terminal and the central processing unit for the machine’s control logic. It is optimized for the B&R Automation Studio environment, supporting real-time communication via POWERLINK and standard Ethernet.

Technical Parameters

Product Advantages

• All-in-One Solution: By merging the HMI and PLC, it reduces wiring complexity, saves cabinet space, and simplifies inventory management.
• Fanless Design: The device uses passive cooling, which increases reliability and longevity in industrial environments by eliminating moving parts that can fail.
• Maintenance-Free Storage: Uses CompactFlash (CF) cards for the operating system and user projects, allowing for quick hardware replacement without a PC.
• High-Speed Connectivity: Integrated Ethernet and USB ports allow for easy integration into factory networks and the connection of peripheral devices like barcode scanners.
• Seamless Integration: Fully compatible with B&R’s “Generic Device Profile,” ensuring easy configuration within the Automation Studio software.

Important Considerations (Precautions)

• Touch Screen Handling: Use only your finger or a specialized touch pen. Sharp objects (screwdrivers, pens) can permanently damage the resistive overlay.
• Power Supply: Always use a PELV (Protective Extra Low Voltage) 24V DC supply. Ensure the polarity is correct to avoid blowing the internal fuse.
• Data Persistence: While the SRAM is battery-backed, ensure the battery is checked periodically (typically every 4–5 years) to prevent data loss during power cycles.
• CompactFlash Usage: Use only industrial-grade B&R CompactFlash cards. Standard consumer-grade cards may fail due to high write cycles or temperature fluctuations.

Product Applications

• Packaging Machinery: Controlling small-scale filling, sealing, and labeling machines.
• Plastic Processing: Acting as the main controller for small injection molding auxiliary equipment or temperature control units.
• Building Automation: Managing HVAC systems, lighting, and access control in smart building infrastructures.
• Textile Industry: Monitoring and controlling tension and feed rates in spinning or weaving machines.
• Modular Machine Units: Serving as the local controller for a specific module within a larger, distributed production line.
