Bently 3500/50 133388-02R Monitoring Module

Description

Bently 3500/50 133388-02R Monitoring Module

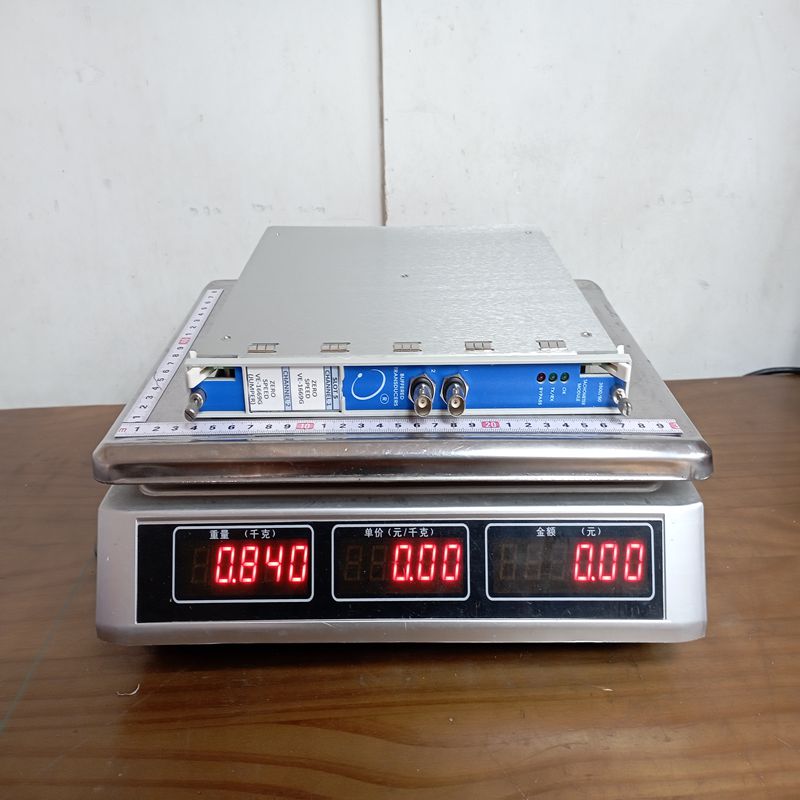

Product Dimensions：

1. Product Detailed Description

The 133388-02 is the Main Monitor Board for the 3500/50 Tachometer. It is a 2-channel module designed to process signals from proximity probes or magnetic pickups. Its primary role is to convert transducer pulses into digital timing measurements to determine:

• Shaft Rotative Speed (RPM)

• Rotor Acceleration

• Rotor Direction (Reverse Rotation)

It compares these values against user-programmable alarm setpoints and provides conditioned Keyphasor® signals to the rack backplane, allowing other modules in the system (like vibration monitors) to synchronize their data.

2. Product Parameters (Specifications)

3. Product Advantages

• Integrated Keyphasor Functionality: Can act as a phase reference source for the entire 3500 rack, saving space and cost by eliminating the need for a separate Keyphasor module.

• Peak Hold Feature: Automatically records and stores the highest speed, highest reverse speed, or number of reverse rotations reached, which is invaluable for post-event analysis.

• Multi-Mode Configuration: Supports four distinct monitoring modes:

  1. Speed & Speed Band Alarming

  2. Speed & Zero Speed Notification

  3. Speed & Rotor Acceleration Alarming

  4. Speed & Reverse Rotation Notification

• High Reliability: Designed for harsh industrial environments with robust self-diagnostics (OK LED) and high electromagnetic interference (EMI) resistance.

4. Cautions & Precautions

• Not for Primary Control: This module is for monitoring and protection only. It must not be used as a primary speed control system or as a dedicated overspeed protection system due to its response timing.

• Magnetic Pickup Limitations: Do not use magnetic pickups for “Reverse Rotation” or “Zero Speed” options, as they require a minimum speed (approx. 3.3 Hz) to generate a signal.

• Module Hot-Swapping: While 3500 modules are generally hot-swappable, always ensure the “Rack Lock” is in the correct position and follow site safety protocols to avoid accidental trips.

• Configuration: The module must be programmed via the 3500 Rack Configuration Software before it will function correctly.

5. Product Applications

The 3500/50 133388-02 is essential for critical rotating machinery in:

• Power Plants: Monitoring steam and gas turbines, as well as high-speed generators.

• Petrochemical/Oil & Gas: Tracking centrifugal compressors, expanders, and large scale pumps.

• Mining & Metal: Monitoring large fans, blowers, and motor-driven shafts.

• Aerospace Testing: Used in test stands for high-speed rotational measurements.
