Bently 3500/33 149986-01D Relay Output Module

Description

Bently 3500/33 149986-01D Relay Output Module

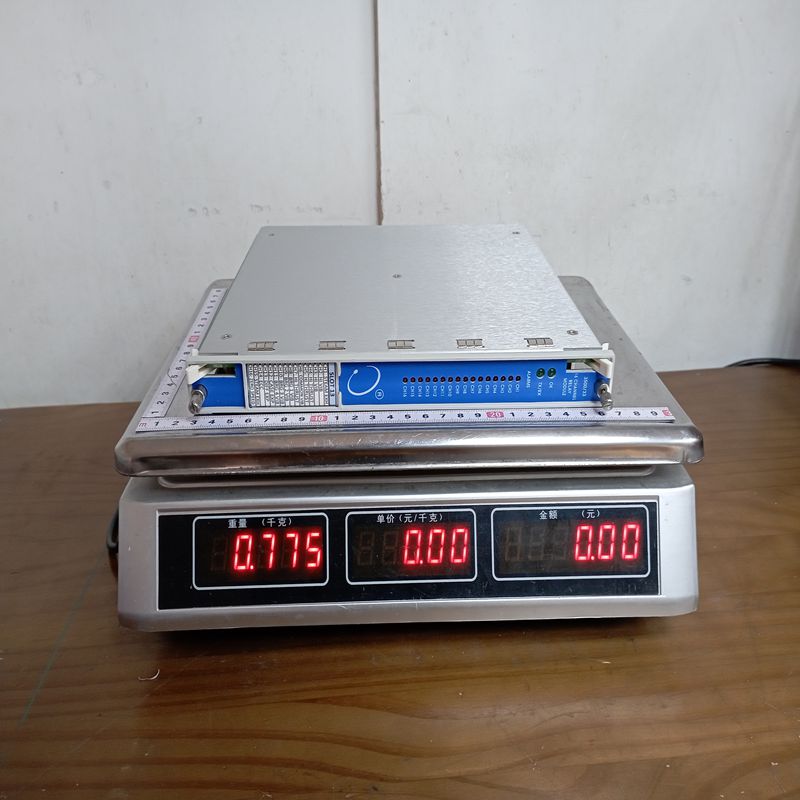

Product Dimensions：

1. Product Detailed Description

The 3500/33 16-Channel Relay Module acts as the “logical output” of the 3500 rack. While the monitors (vibration, speed, etc.) detect machine health, this module executes the response.

• Alarm Drive Logic: Each relay can be independently programmed using AND/OR logic to trigger based on Alert (Alarm 1) or Danger (Alarm 2) statuses, “Not-OK” signals, or individual measured variables from any other module in the rack.

• Architecture: It consists of two parts: the Control Module (149986-01), which contains the processor and logic, and the I/O Module (located at the rear), which contains the physical relays.

2. Product Parameters (Specifications)

Contact Ratings (Standard Relays)

• Max Switched Voltage: 250 Vac / 125 Vdc

• Max Switched Current: 5 A (at 30 Vdc or 120 Vac)

• Max Switched Power: 150 VA (AC) / 120 W (DC)

3. Product Advantages

• High Density: 16 channels in a single rack slot maximize space compared to the 4-channel 3500/32 relay module.

• Complex Voting Logic: Allows for sophisticated protective schemes (e.g., “2-out-of-3” voting) to prevent false trips.

• Hot-Swappable: Can be replaced while the rack is powered (with proper safety bypasses in place).

• Flexible Configuration: Channels are selectable for Normally De-energized (ND) or Normally Energized (NE) operation in groups of four.

• Reliability: Built-in arc suppressors and epoxy-sealed relays ensure long-term stability in harsh industrial environments.

4. Cautions & Precautions

• Bypass During Maintenance: Ensure the “Rack Lock” or specific relay bypasses are active before servicing to prevent accidental machine trips.

• Wiring Voltage: Verify that the field wiring voltage does not exceed the module’s contact rating (especially for DC inductive loads).

• Failsafe Selection: Carefully choose between Normally Energized (failsafe – trips on power loss) and Normally De-energized based on your facility’s safety standards.

• Backplane Communication: This module depends on the Rack Interface Module (RIM) or TDI for communication; ensure the rack bus is healthy.

5. Product Applications

The 3500/33 is used to interface machinery protection systems with Emergency Shutdown Systems (ESD) or Distributed Control Systems (DCS) in:

• Gas & Steam Turbines: To trigger auto-shutdown on high vibration or overspeed.

• Centrifugal Compressors: For surge protection and vibration-based safety interlocks.

• Hydroelectric Generators: Monitoring for structural or rotational faults.

• Large Motors and Pumps: Providing local alarm signals to operators or PLC inputs.
