Bently 3500/05-01-03-00-00-00 Displacement monitor

Description

Bently 3500/05-01-03-00-00-00 Displacement monitor

Product Dimensions：

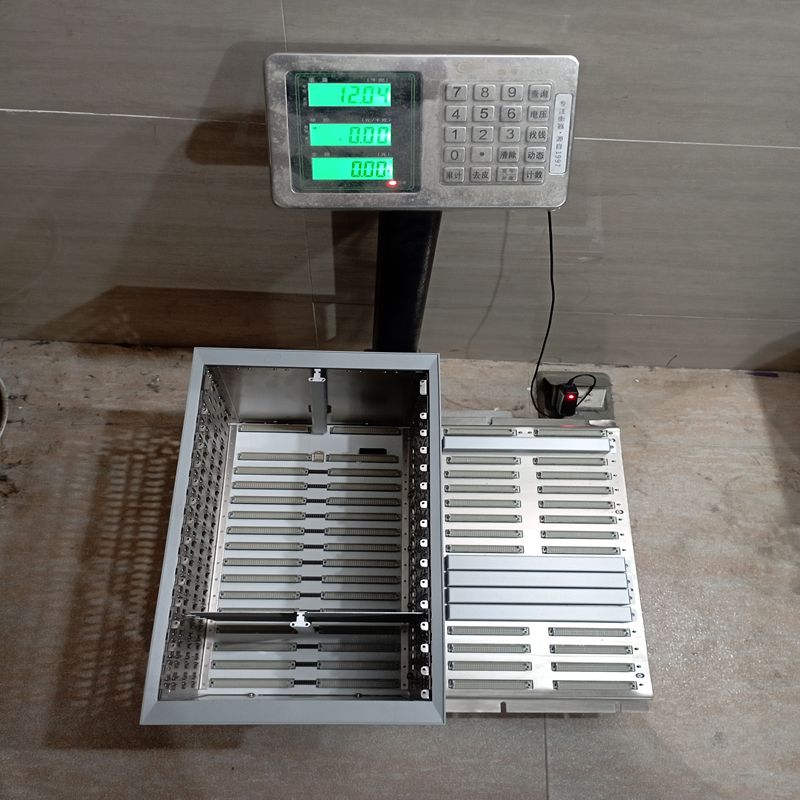

The Bently Nevada 3500/05-01-03-00-00-00 is a specific configuration of the 3500 System Rack, which serves as the physical and electrical foundation for the 3500 Series Machinery Protection System. This system is the industry standard for monitoring and protecting critical rotating machinery.

1. Detailed Product Description

The 3500/05 rack is a high-availability housing designed to hold the power supplies, monitors, and interface modules required for vibration monitoring and machinery protection.

The specific part number 3500/05-01-03-00-00-00 breaks down into these specifications:

• 01 (Rack Size): 19-inch Full-Size Rack (holds up to 14 monitor modules).

• 03 (Mounting Options): Bulkhead Mount (designed to be mounted against a flat surface or wall).

• 00 (Agency Approval): None (Standard/Base certification).

• 00 (Reserved): Standard.

• 00 (Reserved): Standard.

2. Product Parameters

3. Product Advantages

• Modular Design: Allows for easy expansion and hot-swapping of modules without shutting down the entire system.

• Redundancy Support: Supports dual power supplies (AC or DC) to ensure the system remains operational if one power source fails.

• Robust Protection: Designed to meet API 670 standards, providing high-reliability protection for multi-million dollar assets.

• High Density: The full-size rack can monitor dozens of points (vibration, thrust, temperature) within a single 19-inch footprint.

4. Important Considerations (Precautions)

• Grounding: Ensure the rack is properly grounded to the cabinet or bulkhead to prevent electrical noise from interfering with sensitive vibration signals.

• Ventilation: Maintain adequate clearance around the rack for airflow; overheating can lead to premature component failure.

• Power Loading: When configuring the rack, calculate the total power consumption of all modules to ensure the 3500/15 power supplies are not overloaded.

• Static Discharge: Always use an ESD (Electrostatic Discharge) wrist strap when handling or inserting modules into the rack backplane.

5. Product Applications

The 3500/05 rack is used across various industries to protect large-scale rotating equipment, including:

• Oil & Gas: Gas turbines, centrifugal compressors, and steam turbines.

• Power Generation: Steam turbines and hydroelectric generators.

• Water Treatment: Large pumps and motors.

• Mining & Metal: Gearboxes, fans, and blowers.
