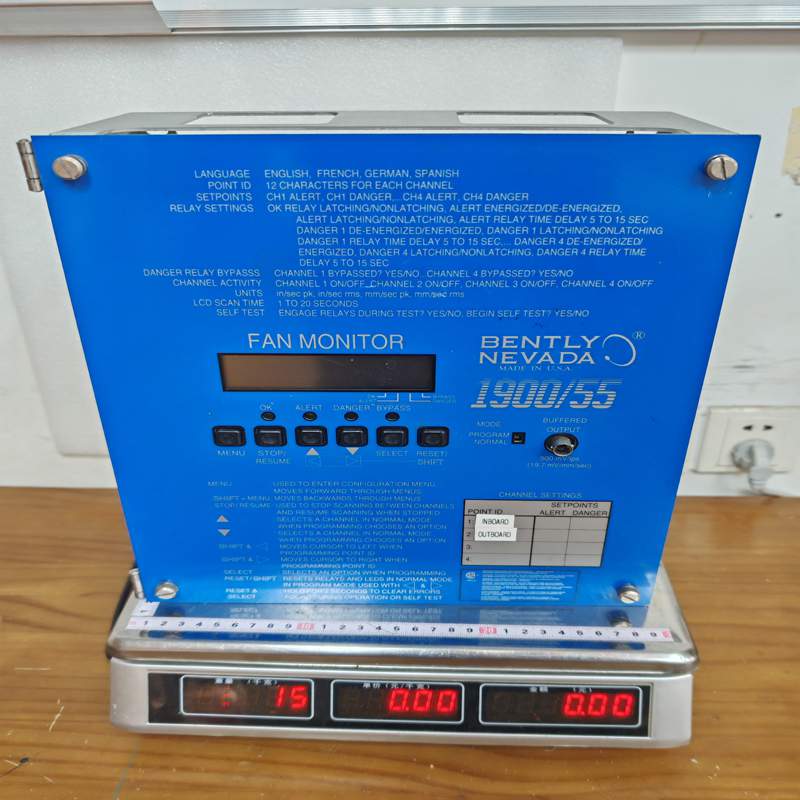

Bently 1900/55-01-00-01-01 190201-01 Fan Vibration Monitor

Description

Bently 1900/55-01-00-01-01 190201-01 Fan Vibration Monitor

Product Dimensions：

The Bently Nevada 190201-01 is a high-performance Interconnect Cable Assembly designed for industrial machinery protection systems. It belongs to Bently Nevada’s extensive portfolio of proximity transducer systems, primarily used to connect proximity sensors/proximitor units to the main monitoring racks (such as the 3500 series).

Product Detailed Description

The 190201-01 is a specialized, rugged coaxial extension cable. In vibration and proximity monitoring, the exact length and electrical properties (capacitance and impedance) of the cable are critical components of the tuned circuit that measures microscopic movements of a machine shaft. The “-01” suffix designates a specific, factory-calibrated length and connector configuration tailored for high-reliability applications.

Technical Parameters

Product Advantages

• High Precision Calibration: Engineered to maintain strict electrical capacitance tolerances, ensuring accurate conversion of physical eddy current variations into voltage signals without distortion.
• Extreme Temperature Resistance: The FEP jacket allows the cable to operate continuously in the extreme heat of gas turbines or the sub-zero conditions of outdoor compressor stations.
• Chemical and Fluid Resistance: Resistant to typical industrial contaminants, including synthetic lubricating oils, moisture, and mild corrosive agents.
• Robust Connectors: Equipped with high-quality miniature connectors that resist loosening or signal degradation due to continuous machine vibration.

Important Considerations & Precautions

• Strict Length Matching: Never cut, splice, or shorten this cable. Proximity systems (like the 3300 XL series) require an exact total system length (usually 5 meters or 9 meters combined for probe and extension cable) to calibrate correctly. Altering the length will cause severe measurement errors.
• Bend Radius: Observe the minimum bend radius specifications during installation. Kinking or over-bending the coaxial cable can damage the internal shielding and alter its electrical properties.
• Connector Isolation: Ensure that the connector junctions are protected. Use Bently Nevada connector protectors or silicone self-vulcanizing tape to prevent grounding out if the connection touches a metallic conduit or machine casing.
• Conduit Routing: Route the cable away from high-voltage power lines or variable frequency drives (VFDs) to avoid electromagnetic interference (EMI) on the sensitive low-voltage vibration signal.

Product Applications

The 190201-01 cable is utilized exclusively in condition monitoring and asset protection loops:

• Steam and Gas Turbines: Connecting proximity probes monitoring shaft vibration and axial thrust position.
• Centrifugal Compressors: Transmitting radial vibration data in high-speed oil and gas pipelines.
• Industrial Pumps & Fans: Linking displacement sensors on critical fluid pumps in power generation plants.
• Gearboxes: Monitoring shaft alignment and thermal expansion in heavy manufacturing machinery.
