Bently 184389-01 Power Supply Module Backplane

Description

Bently 184389-01 Power Supply Module Backplane

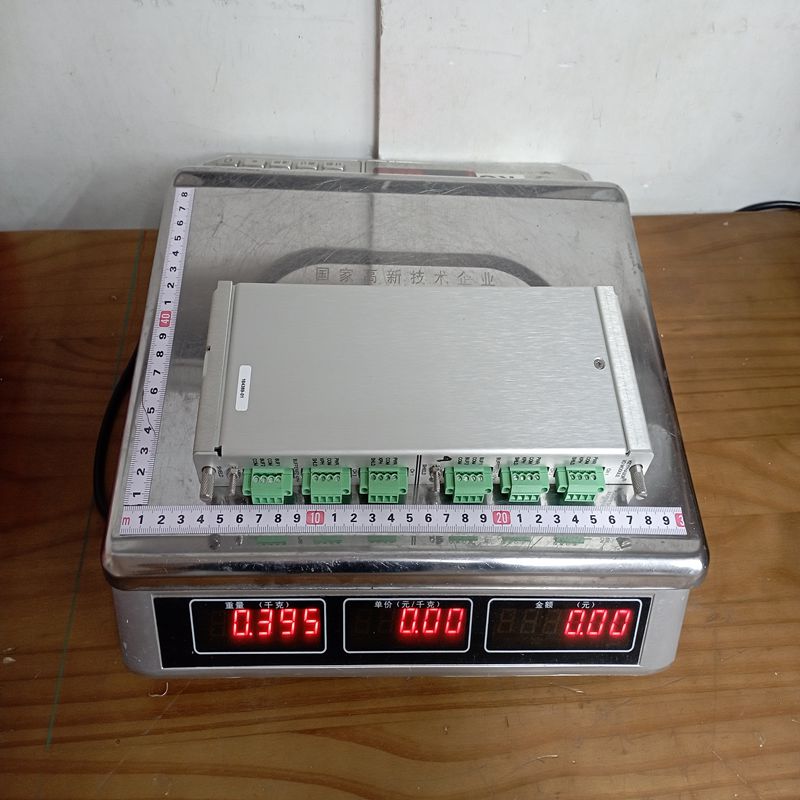

Product Dimensions：

The Bently Nevada 184389-01 is a specific I/O (Input/Output) Module used within the 3500/25 Enhanced Keyphasor Module system. This module is a critical component of the Bently Nevada 3500 Series Machinery Protection System, primarily used for providing pulse signals to the rest of the rack for speed and phase measurements.

1. Product Detailed Description

The 184389-01 is the internal Printed Wiring Assembly (PWA) or I/O module part number for the 3500/25 Enhanced Keyphasor. It is designed to receive input signals from proximity probes or magnetic pickups. These signals are “Keyphasor” signals—once-per-turn or multiple-event-per-turn pulses used to measure:

• Shaft Rotational Speed: Real-time RPM of the machine.

• Phase Angle: Determining the timing of vibration events relative to a fixed point on the shaft.

This module is “Enhanced,” meaning it offers better signal processing and supports more channels compared to legacy Keyphasor modules.

2. Product Parameters

3. Product Advantages

• High Precision: Provides extremely accurate timing signals necessary for advanced vibration analysis (1X, 2X, and phase-locked data).

• Rack Universal Access: Once the signal is processed by the 184389-01, the Keyphasor data is available to every other module in the 3500 rack via the backplane.

• Enhanced Reliability: Designed for 24/7 continuous operation in harsh industrial environments with high Mean Time Between Failure (MTBF).

• Configuration Flexibility: Fully programmable via the 3500 Rack Configuration Software to set trigger levels and hysteresis.

4. Precautions & Maintenance

• Proper Grounding: Ensure the shield of the Keyphasor cable is grounded only at the 3500 rack end to prevent ground loops.

• Trigger Levels: Incorrectly set “Threshold” or “Hysteresis” settings in the software can cause “missed pulses” or “double-triggering,” leading to incorrect RPM readings.

• Hot Swapping: While the 3500 system supports hot-swapping, it is recommended to bypass any linked protection logic before removing the module to avoid nuisance trips.

• Environmental: Keep the module in a climate-controlled enclosure (IP54 or better) if the plant environment is dusty or corrosive.

5. Product Applications

The 184389-01 is used across various heavy industries involving large rotating machinery:

• Power Generation: Steam turbines, gas turbines, and generators.

• Oil & Gas: Centrifugal compressors, pumps, and expanders.

• Chemical/Petrochemical: High-speed mixers and industrial fans.

• Mining & Metal: Large motors and gearboxes.
