BENTLY 176449-09 Monitoring Module

Description

BENTLY 176449-09 Monitoring Module

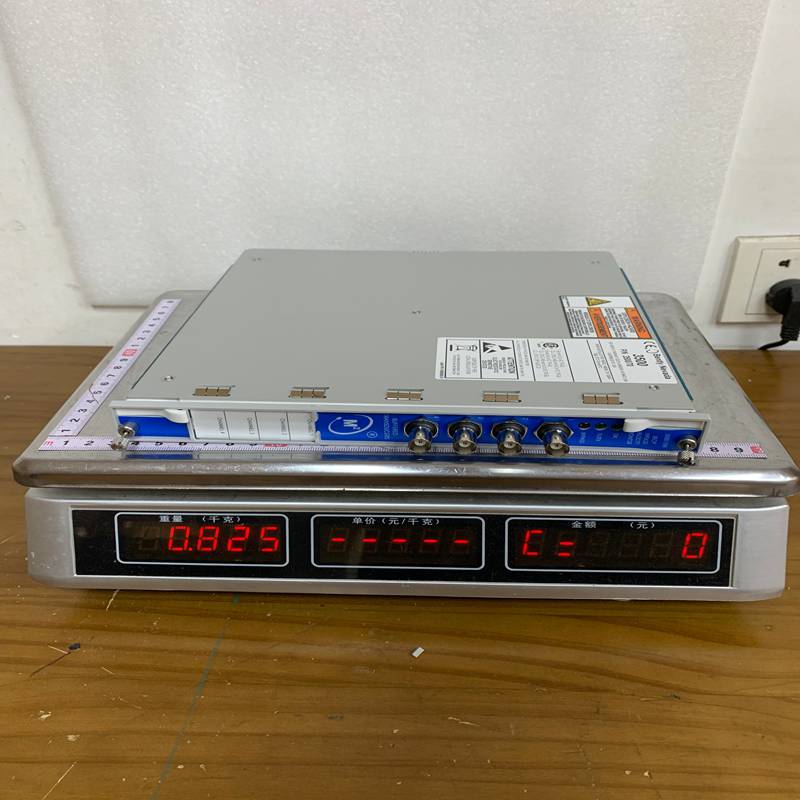

Product Dimensions：

The Bently Nevada 176449-09 is the part number for the 3500/70M Reciprocating Impulse Velocity Monitor module. It is a core component of the Bently Nevada 3500 Series Machinery Protection System, specifically engineered to monitor and protect reciprocating compressors.

Product Detailed Description

The 176449-09 is a four-channel monitor that accepts inputs from seismic transducers (velocity sensors or accelerometers). Its primary role is to detect mechanical looseness and impacts in reciprocating machinery—such as cracked rods, loose bolts, or excessive crosshead clearance—by measuring “Impulse Velocity.” It processes vibration signals to derive peak and average values, comparing them against user-defined alarm setpoints.

Technical Parameters

Product Advantages

• Specialized Reciprocating Protection: Unlike standard vibration monitors, this module uses impulse velocity algorithms specifically tuned for the unique “knocking” signatures of reciprocating compressors.
• Early Fault Detection: Capable of identifying “impact” events that standard RMS vibration monitoring might miss, preventing catastrophic mechanical failure.
• High-Density Monitoring: Provides four independent channels in a single 3500 rack slot, maximizing system capacity.
• Integrated Safety: Fully integrates with the 3500 system’s relay and communication modules, allowing for automatic machinery shutdown (Trip) during dangerous conditions.

Important Considerations & Precautions

• Transducer Pairing: Ensure the input configuration (Jumpers/Software) matches the connected transducer type (e.g., a 200 mV/in/s velocity sensor vs. a 100 mV/g accelerometer).
• Software Configuration: This module requires the 3500 Rack Configuration Software for setup. It cannot be configured manually via hardware switches alone.
• I/O Module Compatibility: The 176449-09 must be paired with the correct 3500/70M I/O module (e.g., 135489-01 or 135489-02) installed in the back of the rack.
• Hot-Swap Procedure: While the 3500 system supports hot-swapping, ensure the “Rack Keylock” is in the “Program” or “Service” position to avoid nuisance trips during replacement.

Product Applications

The 176449-09 is essential in heavy industrial sectors using reciprocating equipment:

• Oil & Gas Refineries: Monitoring crankcase and crosshead vibration on high-pressure hydrogen or process gas compressors.
• Chemical Processing: Protecting large reciprocating pumps and compressors from rod-drop or mechanical looseness.
• Natural Gas Transmission: Monitoring pipeline booster station compressors located in remote areas.
• Power Plants: General vibration monitoring for reciprocating backup generators.
