Bently 136294-01 I/O Module

Description

Bently 136294-01 I/O Module

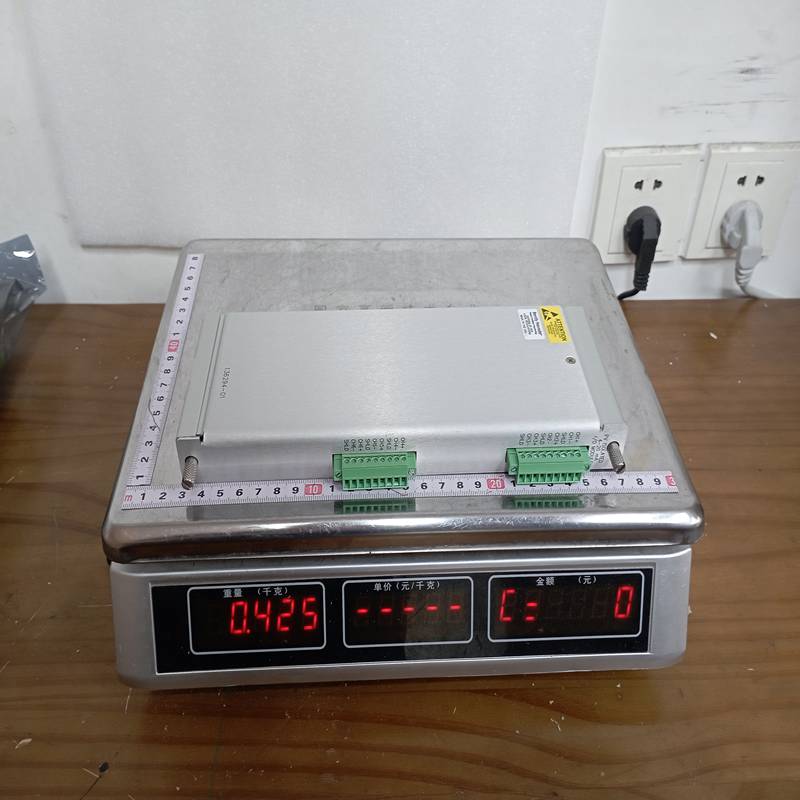

Product Dimensions：

the Bently Nevada 136294-01 is a high-performance Proximity Probe Interface Module from the 3500/42M Proximitor Seismic Monitor series. It is a critical component of the 3500 Machinery Protection System, used to interface vibration and position sensors with the monitoring rack.

Product Detailed Description

The 136294-01 is specifically the I/O Module with Internal Terminations for the 3500/42M monitor. It resides in the rear of the 3500 rack and provides the physical connection points for Proximitor sensors, seismic transducers, and accelerometers. This module processes the raw analog signals from the field and passes them to the 3500/42M main processor card for vibration, thrust, and eccentricity analysis.

Technical Parameters

Product Advantages

• High-Density Monitoring: Provides four independent channels in a single slot, allowing for efficient use of rack space.
• Internal Terminations: The “-01” version uses internal terminal blocks, which simplifies installation by eliminating the need for external termination blocks and extra cabling.
• Hot-Swappable: Designed to be replaced without powering down the entire 3500 rack, ensuring continuous machinery protection for other channels.
• Precision Signal Conditioning: Engineered to minimize signal noise and interference, which is critical when measuring sub-mil (micrometer) levels of vibration on high-speed turbines.

Important Considerations & Precautions

• Sensor Matching: Ensure the I/O module is correctly configured in the 3500 Rack Configuration Software to match the specific transducer type (e.g., 8mm Proximitor vs. Velomitor). Incorrect settings will result in invalid data.
• Wiring Integrity: Ensure that shielded twisted-pair cabling is used for all field connections. The shield should be grounded only at the 3500 rack to prevent ground loops.
• Electrostatic Discharge (ESD): Like all Bently Nevada cards, this module is sensitive to ESD. Always use a grounded wrist strap when handling or installing the card.
• Redundancy: If used in a safety-critical shutdown loop, ensure the monitoring logic and power supplies are configured for the required level of redundancy.

Product Applications

The 136294-01 is used in critical machinery protection systems across several industries:

• Power Generation: Monitoring radial vibration and axial thrust on steam and gas turbines to prevent catastrophic failure.
• Oil & Gas: Tracking the mechanical health of centrifugal compressors and large pumps in refineries and pipelines.
• Mining & Heavy Industry: Vibration monitoring for large gearboxes, cooling tower fans, and motors.
• Hydroelectric: Measuring shaft orbit and position in vertical hydro-turbines.
