Beckhoff ES5101 Terminal Module

Description

Beckhoff ES5101 Terminal Module

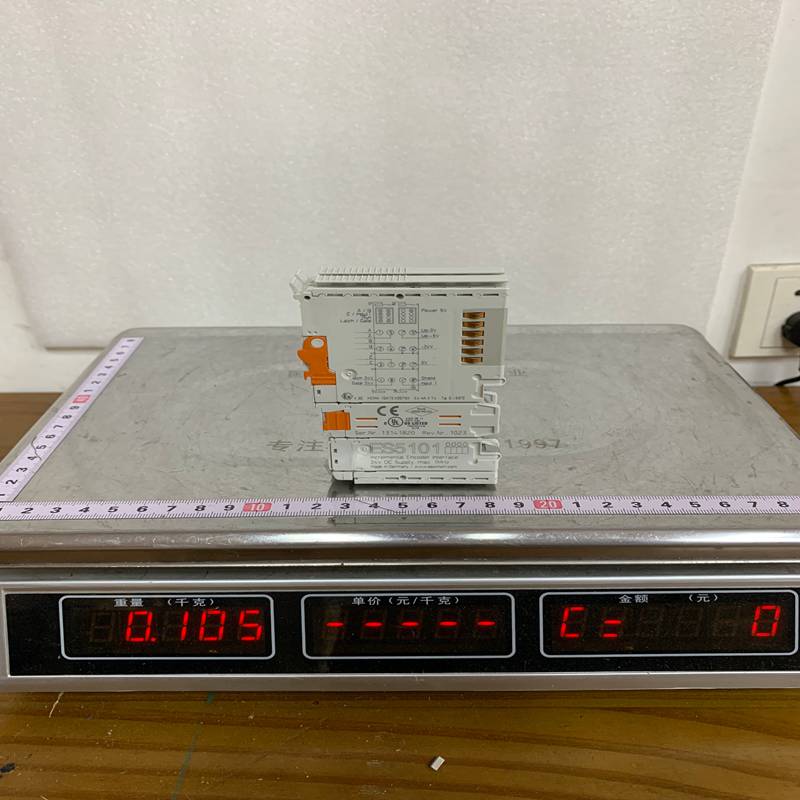

Product Dimensions：

The Beckhoff ES5101 is a specialized high-precision Incremental Encoder Interface from the EtherCAT Terminal series. It is designed for use in environments requiring functional safety, specifically within the Beckhoff TwinSAFE system.

Product Detailed Description

The ES5101 allows the direct connection of incremental encoders with differential signals (RS422). It functions as a safety-related input terminal that evaluates the position and velocity of a motor or moving mechanical component. By integrating this into an EtherCAT network, users can implement safety functions like Safely Limited Speed (SLS) or Safe Stop 1 (SS1) directly in the control architecture.

Technical Parameters

Product Advantages

• Integrated Safety: Eliminates the need for separate safety monitoring hardware by processing encoder signals directly within the EtherCAT I/O rack.
• High Resolution: Supports 4-fold evaluation of the quadrature signals, providing highly accurate position feedback for precision motion control.
• Flexible Power: Provides a switchable power supply for the encoder, allowing compatibility with both 5V and 24V sensors.
• Compact Form Factor: The standard 12mm housing width saves significant space in the control cabinet compared to traditional standalone safety relays.

Important Considerations (Precautions)

• Shielding: To maintain safety integrity and signal accuracy, it is mandatory to use shielded cables for the encoder signals. The shield should be connected to the functional earth (FE) at the terminal.
• TwinSAFE Logic: This module must be used in conjunction with a TwinSAFE Logic terminal (like the EL6910) to execute the safety program. It cannot function as a standalone safety controller.
• Frequency Limits: Ensure the encoder’s pulse frequency at maximum mechanical speed does not exceed the 400 kHz limit of the terminal to avoid “loss of count” errors.
• Signal Quality: Use differential (RS422) encoders rather than single-ended ones to ensure high noise immunity, especially in industrial environments with heavy electromagnetic interference.

Product Applications

The ES5101 is typically found in high-performance machinery where operator safety is paramount:

• Robotics: Monitoring the joint speed and position of industrial robots to ensure they stay within safe operational limits when humans are nearby.
• CNC Machining: Implementing Safely Limited Speed (SLS) during manual intervention or setup modes.
• Material Handling: Ensuring that automated guided vehicles (AGVs) or high-speed conveyors come to a safe stop if an emergency light curtain is breached.
• Wind Turbines: Monitoring the rotational speed of the main shaft or pitch system to prevent overspeed conditions.
