Beckhoff CX5020-0122 CPU Module

Description

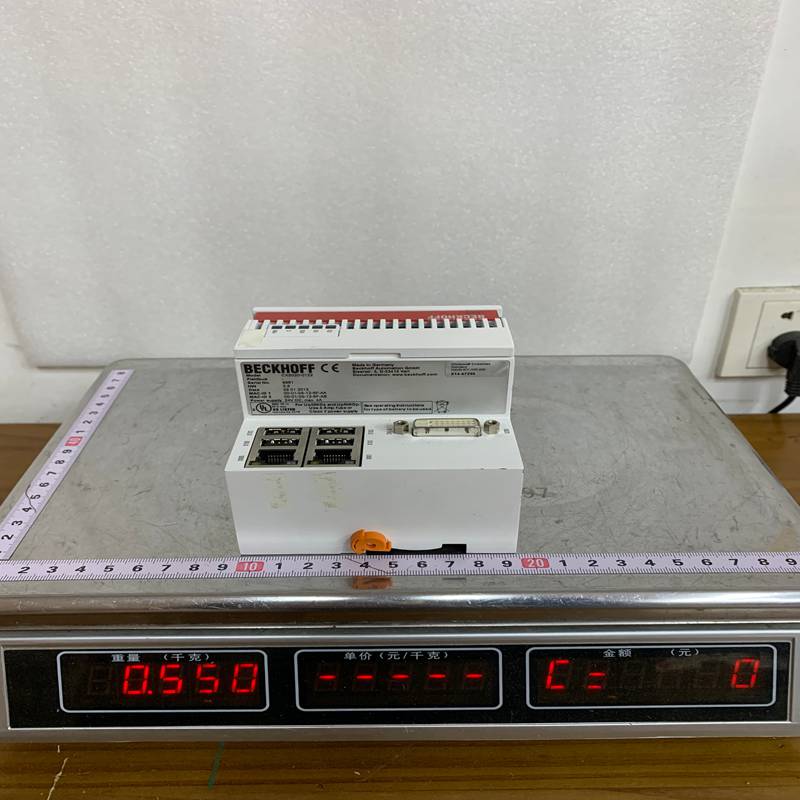

Beckhoff CX5020-0122 CPU Module

Product Dimensions：

The Beckhoff CX5020-0122 is a compact, DIN rail-mountable Embedded PC designed for mid-range automation tasks. It bridges the gap between small-scale controllers and high-performance industrial PCs, offering a fanless design and high energy efficiency.

Product Detailed Description

The CX5020 series utilizes the Intel® Atom™ Z530 processor. The specific model CX5020-0122 is characterized by its hardware configuration, typically featuring an integrated DVI-D interface and a dual-port Ethernet switch. It is designed to run TwinCAT automation software, allowing it to act as both a PLC and a Motion Control system on a single hardware platform.

Technical Parameters

Product Advantages

• Fanless & Compact: With no moving parts, the CX5020 is highly resistant to vibration and requires zero maintenance for cooling fans, making it ideal for tight control cabinets.
• Flexible I/O Interface: The device automatically detects whether Bus Terminals (K-bus) or EtherCAT Terminals (E-bus) are connected, allowing for easy migration of legacy systems to high-speed EtherCAT.
• Low Power Consumption: The Intel Atom architecture provides sufficient processing power for complex PLC and Motion tasks while maintaining a very low thermal footprint.
• Direct Monitoring: Features an integrated 1-line LCD display with two push-buttons for displaying status messages, IP addresses, or custom diagnostic data.

Important Considerations & Precautions

• CompactFlash Usage: The OS and user data are stored on a CF card. Ensure you use “Industrial Grade” CF cards to prevent data corruption from frequent read/write cycles.
• Proper Shutdown: Always use a 1-second UPS or software-controlled shutdown to prevent file system errors on the CompactFlash card during sudden power loss.
• Expansion Limits: While powerful, the Z530 processor has limits. For high-axis count motion control or complex HMI visualization, monitor the CPU load within TwinCAT System Manager.
• Mounting Position: To ensure optimal passive cooling, the unit should be mounted horizontally on a DIN rail with sufficient clearance above and below for airflow.

Product Applications

The CX5020-0122 is a “workhorse” for various industrial sectors:

• Mechanical Engineering: Controlling CNC machines, packaging lines, and assembly stations requiring precise timing.
• Renewable Energy: Used in wind turbine control systems and solar tracking arrays due to its wide operating temperature and ruggedness.
• Building Automation: Managing HVAC, lighting, and access control systems via integrated Ethernet and optional fieldbus modules (BACnet, LonWorks).
• Smart Warehousing: Controlling high-speed sorters and automated storage/retrieval systems (ASRS) using EtherCAT real-time communication.
