Beckhoff CX1100-0910 Interface Module

Description

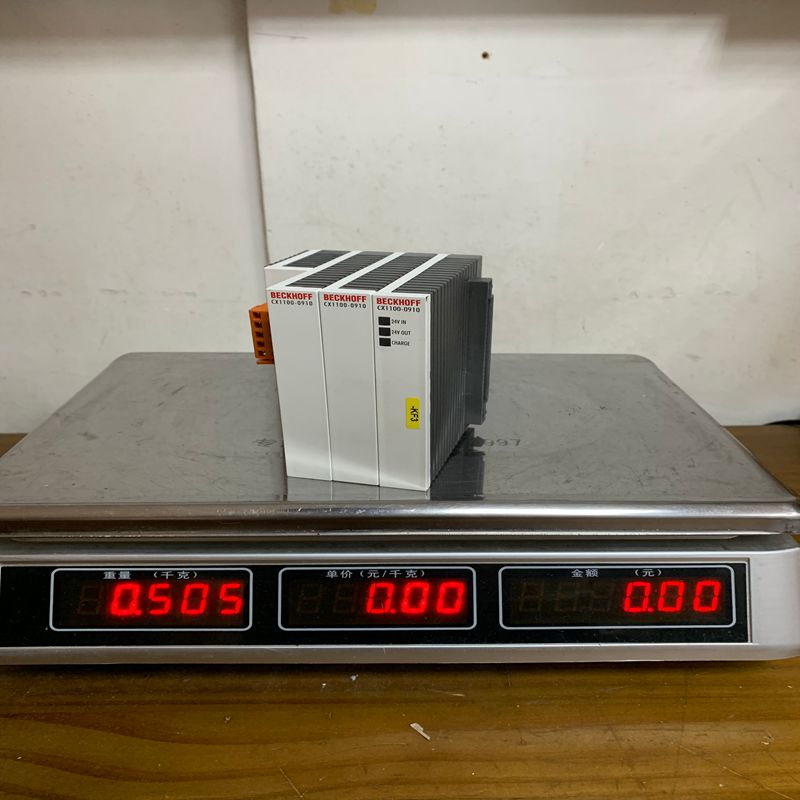

Beckhoff CX1100-0910 Interface Module

Product Dimensions：

The Beckhoff CX1100-0910 is a specialized UPS (Uninterruptible Power Supply) module designed for the CX1010, CX1020, and CX1030 Embedded PC series. It serves as a power supply unit that integrates charging electronics for external battery packs to ensure data integrity during power failures.

Product Detailed Description

The CX1100-0910 is more than a standard power supply; it is a communication-capable interface between the CX CPU module and the power source. It is designed to be clipped onto the left side of a CX10xx CPU. In the event of a power outage, the module switches to battery power, allowing the Embedded PC to perform a controlled shutdown or save “Retain Data” to the persistent memory (CompactFlash) to prevent file system corruption.

Technical Parameters

Product Advantages

• Data Security: Prevents “Blue Screen” errors or OS corruption by providing enough bridge time to save the TwinCAT runtime state and close open files.
• Integrated Display: Features a built-in LCD screen that allows technicians to check the IP address, system status, and error messages without needing a monitor.
• Seamless TwinCAT Integration: The UPS status (battery health, charging level) is available as variables within the TwinCAT PLC environment for intelligent power management logic.
• Modular Design: Clips directly into the CX system, maintaining a small footprint and simplifying the control cabinet layout.

Important Considerations & Precautions

• Battery Maintenance: The CX1100-0910 requires an external battery pack (such as the CX1100-0910 battery module). These batteries have a finite lifespan and should be tested periodically.
• Heat Dissipation: Ensure proper ventilation in the cabinet. While the module is efficient, the charging process can generate heat that may affect the adjacent CPU if airflow is restricted.
• Configuration: The “Shutdown” behavior must be configured in the TwinCAT UPS software driver. Without this software configuration, the hardware will keep the PC running until the battery dies, which does not prevent data loss.
• Polarity: Always double-check the 24V DC input polarity. While protected, reverse polarity can cause fuse failures in the internal circuitry.

Product Applications

The CX1100-0910 is essential for high-availability industrial systems:

• Complex Machinery: Where a sudden power loss could cause mechanical damage or require a lengthy, manual recalibration process.
• Data Logging: Ensuring that production data or sensor logs are safely written to the storage media during a utility failure.
• Remote Stations: In locations with unstable power grids, providing enough time for the system to send a “Power Lost” alert via a gateway before shutting down.
• Process Industry: Maintaining the control state of valves or heaters to ensure a safe chemical or thermal transition during outages.
