BAE CBI2410A Battery Charger

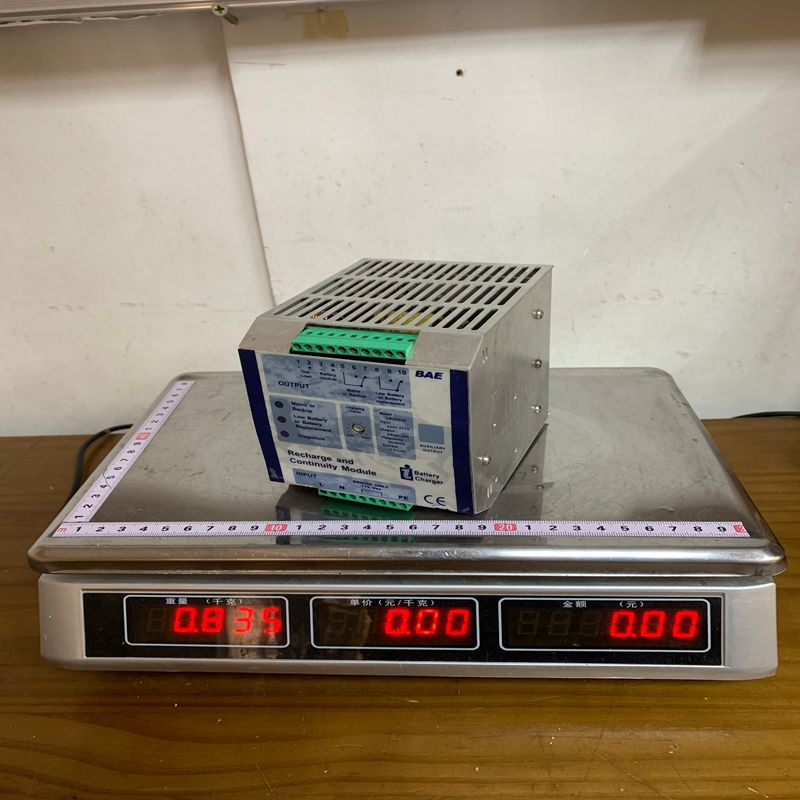

Product Dimensions：
The BAE CBI2410A is a versatile, “All-In-One” industrial device that combines the functions of a power supply, a battery charger, and a DC UPS (Uninterruptible Power Supply) into a single compact DIN rail module.
Designed by Adel system (often distributed by BAE), it is known for its Battery Care technology, which optimizes battery life and performance.
1. Key Technical Specifications
The CBI2410A is designed for 24V systems and features high efficiency and robust protection.
| Parameter | Specification |
| Input Voltage | 115 – 230 – 277 VAC |
| Output Voltage (Load) | 24 VDC |
| Output Current (Load) | 10 A |
| Max Current (Total) | 10 A (Shared between load and battery charging) |
| Battery Voltage | 24 VDC |
| Charging Current | Adjustable up to 10 A |
| Efficiency | $\ge 91\%$ |
| Mounting | DIN Rail (Easy installation) |
| Protection Degree | IP20 |
2. Product Advantages
-
Battery Care Technology: It performs automatic diagnostic checks for battery efficiency, detects shorted cells, and prevents deep discharge. It uses four charging stages: Recovery, Boost, Absorption, and Float.
-
Dual Output Management: The device intelligently distributes current. It prioritizes power to the load (your equipment) and uses the remaining current to charge the battery.
-
Universal Compatibility: It works with various battery types, including Open Lead Acid, Sealed Lead Acid, AGM, and Gel batteries, via selectable jumpers.
-
Compact Design: Replaces three separate components (Power Supply, Charger, and UPS Controller), saving significant space in electrical cabinets.
-
Diagnostic Alerts: Includes relay contacts for “Low Battery” and “Replacement Battery” (Battery Fault) to ensure system reliability.
3. Product Applications
The CBI2410A is ideal for mission-critical applications where power downtime is not an option:
-
Industrial Automation: Powering PLCs, HMIs, and sensors in factories.
-
Telecommunications: Ensuring backup power for remote communication towers.
-
Fire & Safety Systems: Maintaining power for fire alarms and emergency lighting.
-
Renewable Energy: Used in solar or wind control systems to manage battery storage.
-
Security: Powering surveillance cameras and access control systems during grid failure.
4. Important Considerations (Precautions)
-
Ventilation: Ensure there is adequate space (at least 20mm) around the unit for cooling, as it relies on natural convection.
-
Battery Sizing: Ensure the battery capacity matches the charging current settings to avoid overheating or undercharging.
-
Correct Polarity: Double-check battery polarity before connection; though protected, reversed polarity can cause system stress.
-
Wiring Gauge: Use appropriately rated cables for 10A current to prevent voltage drops and fire hazards.
5. Summary Table: Why Choose CBI2410A?
| Feature | Benefit |
| All-in-One | Reduces wiring complexity and hardware costs. |
| Automatic Test | Detects battery aging before a failure occurs. |
| Temperature Compensation | Adjusts charging voltage based on ambient temperature (with optional probe). |
