Bachmann DIO280 80-Channel Digital Input/Output Module

Description

Bachmann DIO280 80-Channel Digital Input/Output Module

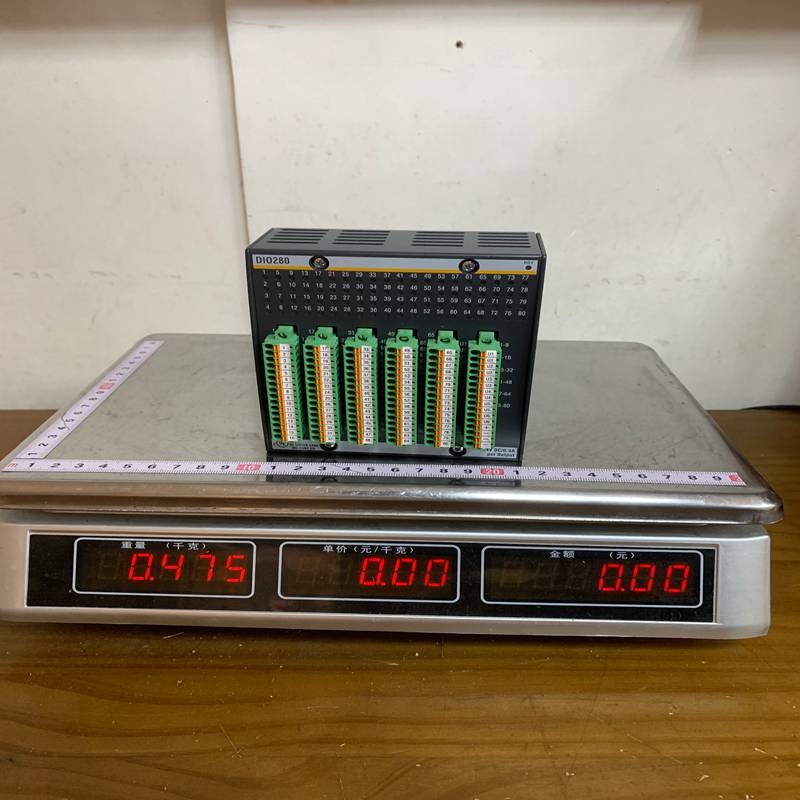

Product Dimensions：

The Bachmann DIO280 is a high-performance digital input/output module designed for the M1 automation system. It is widely recognized for its high density, flexibility, and robust performance in demanding industrial environments.

Here is a detailed breakdown of the product in English.

## Product Overview

The DIO280 is a versatile digital module that combines both inputs and outputs in a single, compact unit. It features 16 digital channels that can be individually configured as either inputs or outputs, providing maximum flexibility for system integrators.

## Technical Parameters

## Key Product Advantages

• High Flexibility: The “any-channel-any-function” design means you don’t waste unused ports. If you need 10 inputs and 6 outputs, you don’t need two separate modules.

• Space Efficiency: By packing 16 configurable channels into a slim profile, it significantly reduces the footprint within the control cabinet.

• Integrated Diagnostics: Each channel features comprehensive monitoring. It can detect short circuits, wire breaks, and overloads, reporting them directly to the controller.

• Robustness: Built to withstand harsh industrial conditions, including high vibration and extreme temperature fluctuations common in energy and maritime sectors.

• Ease of Maintenance: The status LEDs provide immediate visual feedback on the floor, allowing for rapid troubleshooting without needing a laptop.

## Important Precautions (Notes)

Wiring Integrity: Ensure that the 24V supply is stable and filtered. Reverse polarity protection is included, but persistent incorrect wiring can cause heat stress.

Current Limits: While each channel handles 0.5A, pay close attention to the total module current (8A). If all 16 channels are used as outputs at full load simultaneously, ensure your thermal management is adequate.

Configuration: The channel direction (Input vs. Output) must be defined in the Bachmann SolutionCenter software before commissioning to prevent hardware conflicts with connected peripherals.

## Product Applications

The DIO280 is a “workhorse” module used across various high-stakes industries:

• Wind Power: Controlling pitch systems, yaw drives, and monitoring safety sensors.

• Maritime & Offshore: Managing deck machinery, valve controls, and alarm systems on ships.

• Industrial Automation: General machine building, packaging lines, and assembly robots.

• Energy Management: Monitoring circuit breakers and controlling switchgear in power distribution.
