AutomationDirect D2-12TR PLC Relay Output Module

Description

AutomationDirect D2-12TR PLC Relay Output Module

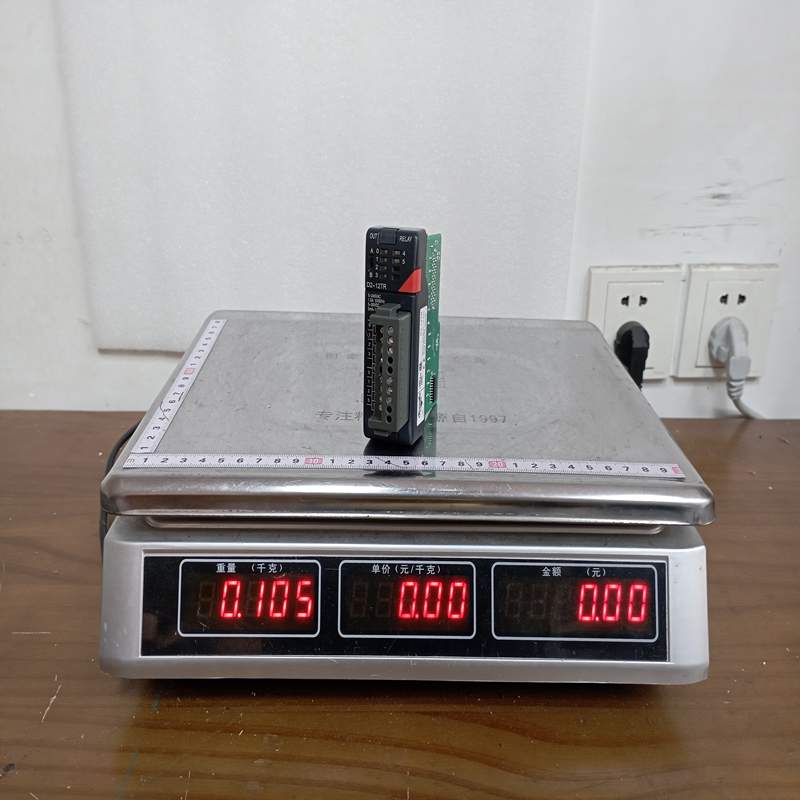

Product Dimensions：

Product Overview

The AutomationDirect D2-12TR is a relay output expansion module designed for the DirectLOGIC 205 (DL205) Programmable Logic Controller (PLC) series. It provides 12 isolated relay output points for switching AC and DC loads in industrial automation systems.

This module installs directly into any available slot of a DL205 base (except the CPU slot), expanding the physical I/O capacity of the system.

Technical Specifications

Key Advantages

• High Voltage & Current Flexibility: Can switch both AC and DC loads up to 240 V AC / 30 V DC at 1.5 A per point without needing external interposing relays for small-to-medium loads.
• Isolated Commons: Organized into two separate commons (6 channels each), allowing the control of mixed voltage circuits (e.g., 24 V DC on one group and 120 V AC on the other).
• Removable Terminal Block: Facilitates quick field replacement of modules without disconnecting individual field wiring.
• Clear LED Status: Dedicated logic-side LEDs show the real-time state of each relay output point for easy troubleshooting.
• Compact DL205 Form Factor: High I/O density within the standard DL205 base footprint.

Important Usage & Installation Precautions

• Inductive Load Protection: Relay contacts driving inductive loads (solenoids, contactor coils, relays) produce high-voltage inductive spikes when switching OFF. External flyback diodes (for DC loads) or RC snubbers/varistors (for AC loads) must be installed across the load to prevent contact arcing and premature contact failure.
• Common Current Limits: Do not exceed the 7 A maximum total current per common group, even if individual channel ratings permit higher cumulative loads.
• Power Supply Sourcing: Ensure the DL205 base power supply can deliver the required 250 mA at 5 V DC consumed by this module when all output points are energized.
• Minimum Load Requirement: Ensure connected loads draw at least 5 mA @ 5 V DC to guarantee reliable contact closure and self-cleaning.
• Hot-Swapping Prohibited: Power off the PLC base power supply before removing or inserting the module or terminal block to avoid damaging internal components.

Applications

• Actuator & Solenoid Control: Driving 24 V DC and 120/230 V AC pneumatic and hydraulic directional valves.
• Motor Starters & Contactors: Interfacing directly with smaller motor starters, contactor coils, and safety interlocks.
• Indication & Annunciation: Controlling panel indicator lights, warning beacons, and audible alarms.
• General On/Off Control: Switching heaters, fan starters, and auxiliary power supplies in industrial control cabinets.
