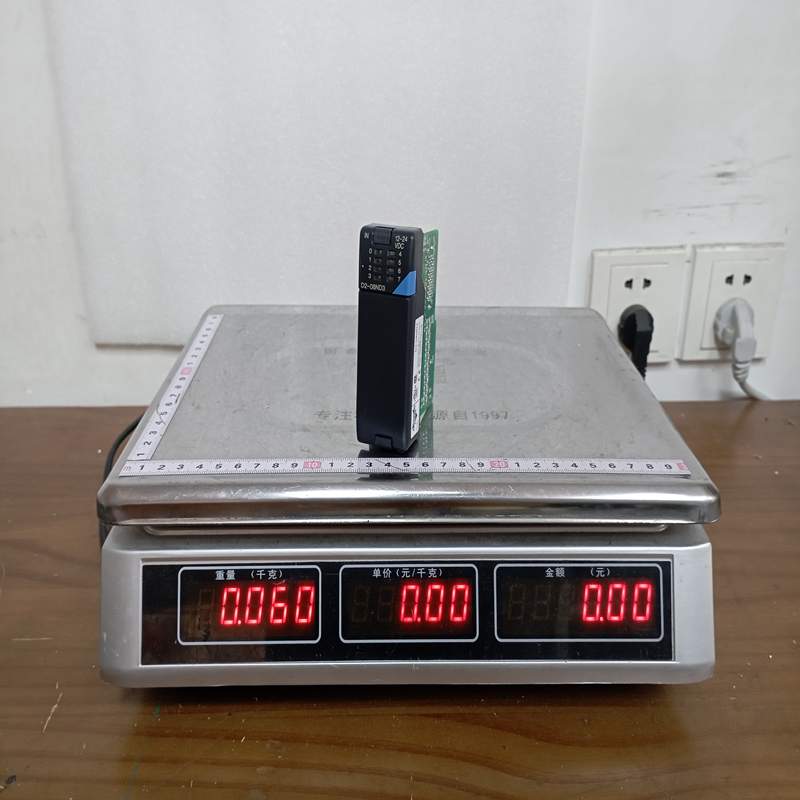

AutomationDirect D2-08ND3 PLC Digital Input Module

Description

AutomationDirect D2-08ND3 PLC Digital Input Module

Product Overview

The AutomationDirect D2-08ND3 is an 8-point DC sink/source input module belonging to the DirectLOGIC 205 (DL205) micro-modular PLC system. It converts external 12–24 V DC discrete field signals from devices such as limit switches, sensors, and selector switches into internal logic-level signals processed by the DL205 CPU or Ethernet Remote Master unit.

Featuring flexible common wiring, each input channel can be independently configured as either sinking or sourcing to accommodate various field devices.

Technical Specifications

Key Advantages

• Bi-Directional Flexibility: Supports both sinking (NPN) and sourcing (PNP) sensor field connections on the same module by changing the common wire configuration.
• Hot-Swappable Terminal Strip: Uses a removable 10-point terminal block, allowing module replacement without disconnecting individual field wires.
• Status Visibility: Bright, logic-side LED indicators for every point provide immediate status diagnostics during installation and troubleshooting.
• Cost-Effective Scalability: Compact form factor fits into any standard DL205 base slot, allowing density expansion without increasing panel space.
• Optocoupler Isolation: Provides optical isolation between field-side high voltage spikes and sensitive CPU logic circuits.

Important Usage & Installation Precautions

• Single Common Limitation: All 8 input channels share a single common terminal (C). This means all inputs connected to this module must share the same voltage reference polarity.
• Input Voltage Limits: Operating above the 26.4 V DC continuous rating or exceeding 30 V DC peak can cause permanent damage to the input optocouplers.
• External Power Supply Requirement: The module relies on an external 12–24 V DC field power supply to drive input currents; it does not supply loop power from the PLC base.
• Response Time Considerations: The fixed 8 ms response delay makes this module suitable for general discrete automation, but not for high-speed counter applications or high-frequency pulse detection (use a dedicated High-Speed Counter module for fast pulses).
• Wiring Safety: Always turn off field supply power before removing or attaching the removable terminal block to avoid accidental short circuits.

Applications

• Assembly & Packaging Machinery: Reading proximity sensor signals, optical eye triggers, and mechanical limit switches.
• Conveyor Systems: Monitoring product presence switches, pallet position sensors, and emergency stop/gate switch inputs.
• Pneumatic & Hydraulic Actuators: Processing end-of-stroke reed switches and cylinder position feedback signals.
• Control Panels & Operator Interfaces: Interfacing selector switches, panel pushbuttons, and auxiliary relay contacts to the PLC.
