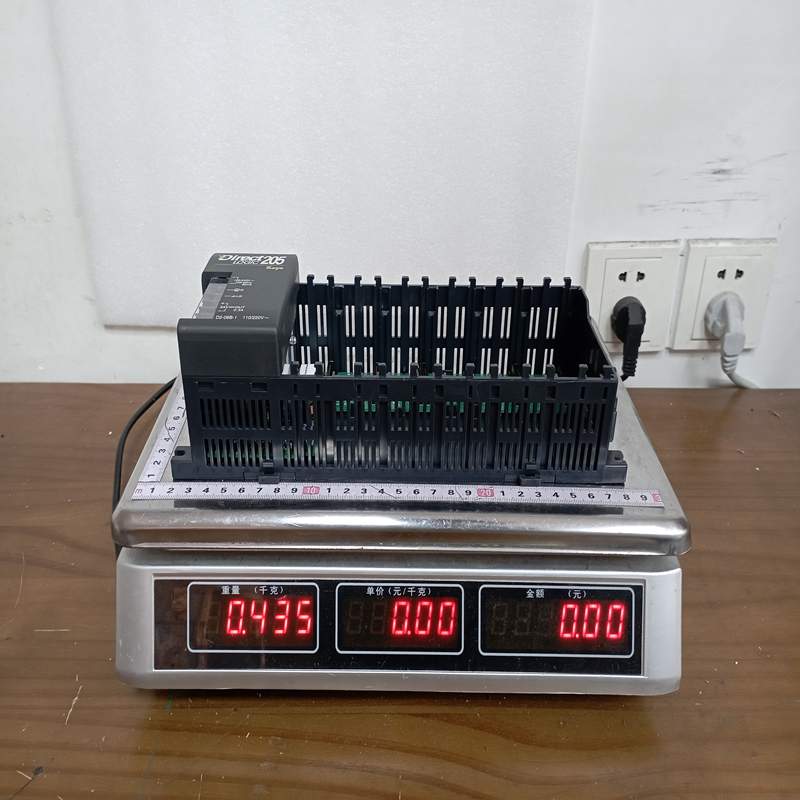

AutomationDirect D2-06B-1 PLC Base (6-slot)

Description

AutomationDirect D2-06B-1 PLC Base (6-slot)

Product Overview

The AutomationDirect D2-06B-1 is a 6-slot base (rack/chassis) belonging to the DirectLOGIC 205 (DL205) micro-PLC series. It provides the mechanical mounting and backplane communication pathways for a DL205 CPU (or interface module) and up to five I/O or specialty modules.

Equipped with a built-in AC power supply, it powers the CPU and internal logic circuits of all installed expansion modules via the backplane.

Technical Specifications

Key Advantages

• All-in-One Power Integration: Features an integrated wide-range AC power supply (100–240 V AC), eliminating the need for a separate external power chassis.
• Flexible Expansion: Provides 5 available slots for discrete, analog, or specialty I/O modules alongside the CPU module.
• Auxiliary 24V DC Supply: Includes a built-in 24V DC/300 mA power tap, suitable for powering field sensors or input loops directly.
• Dual Mounting Options: Supports both standard 35 mm DIN rail snapping and direct backpanel screw mounting for easy enclosure installation.
• Cost-Effective Scalability: Serves as a compact yet scalable chassis for small-to-medium industrial automation applications.

Important Usage & Installation Precautions

• Power Consumption Calculation: Always calculate the total 5V DC current draw of all installed modules (CPU + I/O). The combined current must not exceed the base’s 2600 mA capacity.
• Auxiliary 24V Current Limit: The onboard 24V DC supply is limited to 300 mA. Exceeding this limit will cause power supply shutdown or degradation.
• Proper Grounding: Ensure the frame ground terminal (FG) is connected to a clean earth ground to mitigate electrical noise and protect sensitive electronics.
• Module Insertion: Always power off the main supply before inserting or removing CPU and I/O modules to prevent backplane or module damage (no hot-swapping).
• Thermal Management: Maintain adequate vertical clearance (at least 2 inches above and below) inside the enclosure to ensure proper convection cooling.

Applications

• Small-to-Mid Industrial PLC Systems: Acts as the central hardware foundation for machine control using DL205 CPUs (e.g., D2-250-1, D2-260, D2-262).
• Distributed I/O Nodes: Combined with Ethernet or Serial remote I/O base controllers (e.g., H2-EBC100) for decentralized control architectures.
• Packaging & Material Handling: Used in conveyor routing, cartoning, palletizing, and sorting machines.
• Pumping & HVAC Control: Suitable for multiplex pump control, water treatment panels, and fan systems.
