AutomationDirect D0-06DR Relay

Description

AutomationDirect D0-06DR Relay

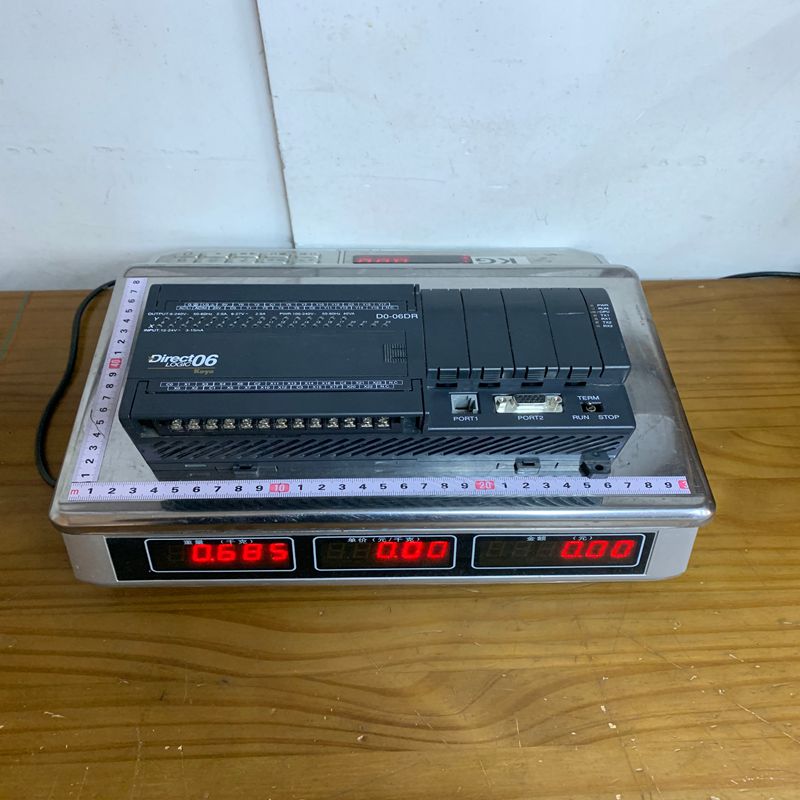

Product Dimensions：

The AutomationDirect D0-06DR is a highly versatile and compact Micro PLC from the DirectLOGIC 06 (DL06) series. It is widely recognized for combining a fixed I/O footprint with the flexibility of expansion slots, making it a “powerhouse” in a small package.

1. Product Detailed Description

The D0-06DR features a sleek, all-in-one design. It integrates a power supply, CPU, and 36 fixed I/O points into a single chassis. What sets this model apart is the inclusion of four option card slots, allowing users to add discrete I/O, analog modules, or communication ports as needed.

Key Components:

• Built-in I/O: 20 DC inputs and 16 Relay outputs.

• Communication: Two built-in RS-232C serial ports.

• Memory: 7.6k words of total program memory.

• Expansion: Supports up to 4 option modules.

2. Technical Specifications (Parameters)

3. Product Advantages

• Cost-Effectiveness: High I/O density at a low price point compared to modular PLCs.

• Hybrid Expandability: Combines the simplicity of a fixed PLC with the scalability of a modular system via the 4 expansion slots.

• Versatile Relay Outputs: The relay outputs allow you to switch both DC and AC loads without needing external interposing relays for many applications.

• Ease of Use: Uses the proven DirectSOFT programming environment, which is intuitive for ladder logic developers.

4. Important Considerations (Precautions)

• Relay Lifespan: Since this model uses mechanical relays, it is not suitable for high-frequency switching (e.g., PWM for heaters). For high-speed switching, consider a transistor output model (D0-06DD1).

• Wiring Clearance: Ensure adequate space around the unit for ventilation and wiring, as the terminal blocks can become crowded when fully loaded.

• Communication Limits: Port 1 is fixed at 9600 baud, while Port 2 is more flexible. Ensure your HMI or peripheral devices are compatible.

• Battery Backup: While the memory is non-volatile, the Real-Time Clock requires a battery (optional) to maintain time during power outages.

5. Product Applications

The D0-06DR is ideal for small to mid-sized industrial automation tasks, including:

• Material Handling: Conveyor systems, sorting machines, and elevators.

• Packaging Machinery: Labeling machines, wrapping stations, and filling equipment.

• Pumping Stations: Controlling water pumps and monitoring tank levels via analog expansion cards.

• Building Automation: Lighting control, HVAC systems, and security gate monitoring.
