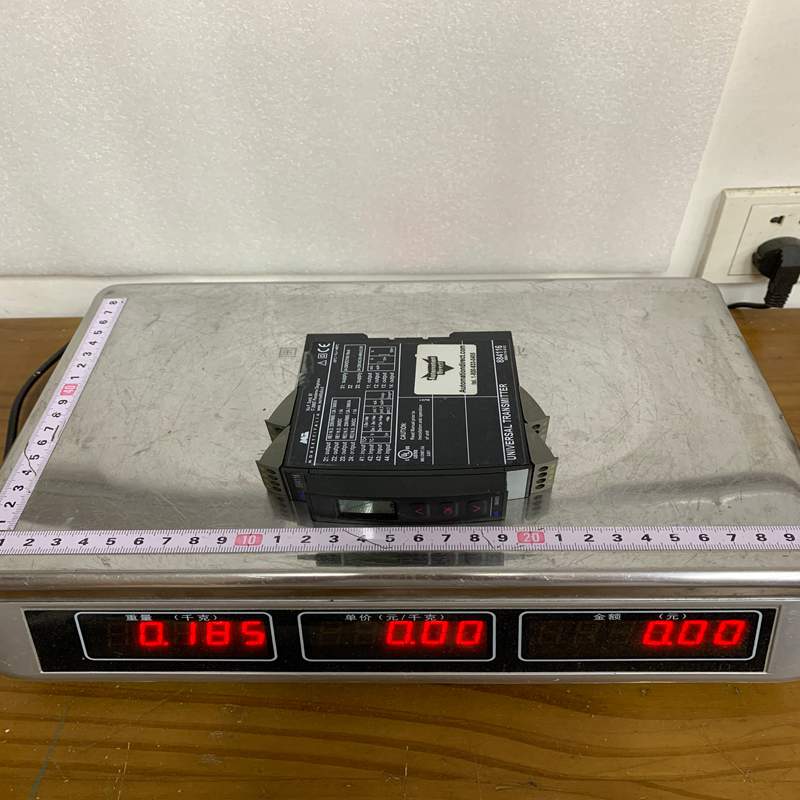

AUTOMATIONDIRECT 884116 Industrial Control Accessory

Product Overview

The 884116 (commonly distributed by industrial automation channels such as AutomationDirect and integrated into various process automation architectures including ABB control environments) is a high-precision universal signal conditioner, isolator, and transmitter.

It converts a wide range of process input signals (mA, V, RTD, thermocouples, potentiometers) into standardized analog outputs while providing galvanic isolation and dual relay switching capabilities.

Technical Specifications

Key Advantages

• Universal Input Flexibility: Accepts virtually any standard process input (mA, V, RTD, TC, linear resistance) in a single module, significantly reducing spare parts inventory.
• High Isolation & Noise Immunity: 2.3 kV AC 4-way isolation breaks ground loops and protects downstream PLC/DCS analog input channels from severe electrical noise and surges.
• Built-in Dual Relay Alarms: Features two programmable relays for local limit alarm switching, window comparator control, or sensor error tripping directly from the unit without extra relay cards.
• SIL 2 Compliance: Meets international functional safety standards for deployment in safety-critical process loops.
• Wide Universal Power Supply: Accepts both high-voltage AC and low-voltage DC power inputs, streamlining control cabinet power distribution.

Important Usage & Installation Precautions

• Detachable Programming Unit: Configuration of input ranges, scaling, and trip thresholds requires an optional front clip-on display/programming module (e.g., model 884501). Without the panel, front LEDs provide basic status only.
• Relay Contact Ratings: Do not exceed the maximum contact rating (250 V AC / 2 A). For switching heavy inductive loads (such as large solenoid valves or motor contactors), use external interposing relays or RC suppression networks.
• Thermal Dissipation: When installing multiple units side-by-side on a DIN rail in high ambient temperatures, maintain adequate ventilation or spacing to prevent thermal buildup.
• Cold Junction Compensation (CJC): When configuring for thermocouple inputs, ensure the CJC sensor mode is properly set to maintain temperature measurement accuracy.
• Power & Signal Separation: Route field sensor cables separately from high-voltage AC power and motor leads to minimize electromagnetic interference.

Applications

• Temperature Signal Conversion & Alarm: Converts RTD (Pt100) or thermocouple signals from reactor vessels/tanks into standard 4–20 mA signals for PLCs while using the internal relays for local high-temperature alarm horns.
• Ground Loop Elimination: Resolves voltage potential differences and ground loop noise between field instrumentation and centralized DCS/PLC control systems.
• Legacy System Upgrades: Converts obsolete signal standards (e.g., 0–5 V) into modern 4–20 mA or 0–10 V loops during plant modernization projects.
• Valve Position & Potentiometer Tracking: Translates rotary potentiometer or linear sensor feedback from control valves into standardized signals for automated process control.
