Automation Direct C0-11DRE-D + 198088051 8-Input/6-Output Relay Module

Description

Automation Direct C0-11DRE-D + 198088051 8-Input/6-Output Relay Module

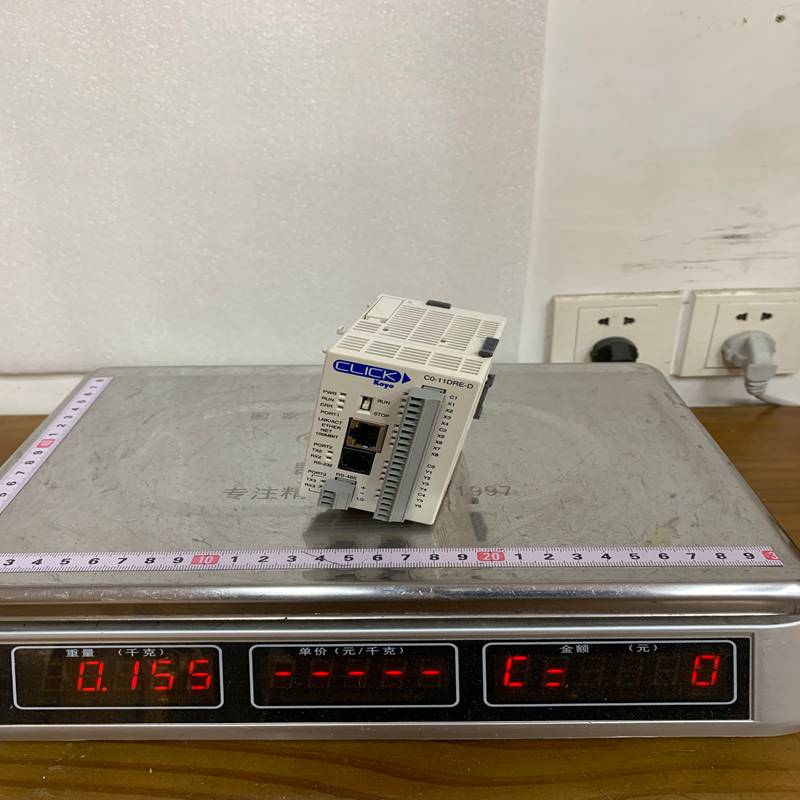

Product Dimensions：

The AutomationDirect C0-11DRE-D is a powerful, low-cost micro PLC from the CLICK Ethernet Standard series. The reference number 198088051 typically refers to a internal manufacturer tracking code or a specific distributor assembly ID for this unit.

Product Detailed Description

The C0-11DRE-D is a stackable micro-brick PLC that integrates a CPU, I/O, and communication ports into a single compact unit. As an “Ethernet Standard” model, it features enhanced processing speed, a real-time clock (RTC), and battery backup compared to the Basic series. It is designed for simple control tasks that require reliable Ethernet connectivity and the ability to drive high-voltage loads directly via relay outputs.

Technical Parameters

Product Advantages

• Exceptional Value: Provides high-end features like high-speed counting and PID control at a fraction of the cost of traditional PLCs.
• Versatile Communication: Three built-in ports allow it to simultaneously act as a Modbus TCP server/client while communicating with a local HMI via RS-232 and a VFD via RS-485.
• Simplified Programming: Uses free CLICK programming software which is highly intuitive and features a “drag-and-drop” ladder logic environment.
• Direct AC Control: The 6 relay outputs allow the PLC to switch solenoid valves or small motors directly (up to 240 VAC) without requiring interposing relays.
• Data Logging & RTC: Includes a real-time clock and battery backup (optional battery D2-BAT-1) for timestamping events and preserving retentive data during power loss.

Important Considerations (Precautions)

• Power Supply: This unit requires a separate 24 VDC power supply (such as the C0-00AC or C0-01AC). It cannot be powered directly from an AC wall outlet.
• Relay Life: Mechanical relays have a finite lifespan (approx. 500k cycles resistive). For high-frequency switching applications, consider a transistor-output model like the C0-11DD1E-D.
• Software Version: Because this is an Ethernet model, you must use CLICK Programming Software version V2.00 or later for configuration.
• Inductive Loads: When switching inductive loads (like solenoids), always install external surge suppression (diodes for DC or varistors for AC) to protect the relay contacts from arcing.

Product Applications

• Pumping Stations: Controlling pump sequences based on level sensors and reporting data over Ethernet to a SCADA system.
• Packaging Machinery: High-speed counting for product tracking and relay control for heat-sealing elements.
• Building Automation: Managing lighting, HVAC schedules, and small access control systems.
• Material Handling: Controlling small conveyor belts where Modbus communication is needed to interface with Variable Frequency Drives (VFDs).
