AMCI SD17060B-25 Stepper Motor Driver

Description

AMCI SD17060B-25 Stepper Motor Driver

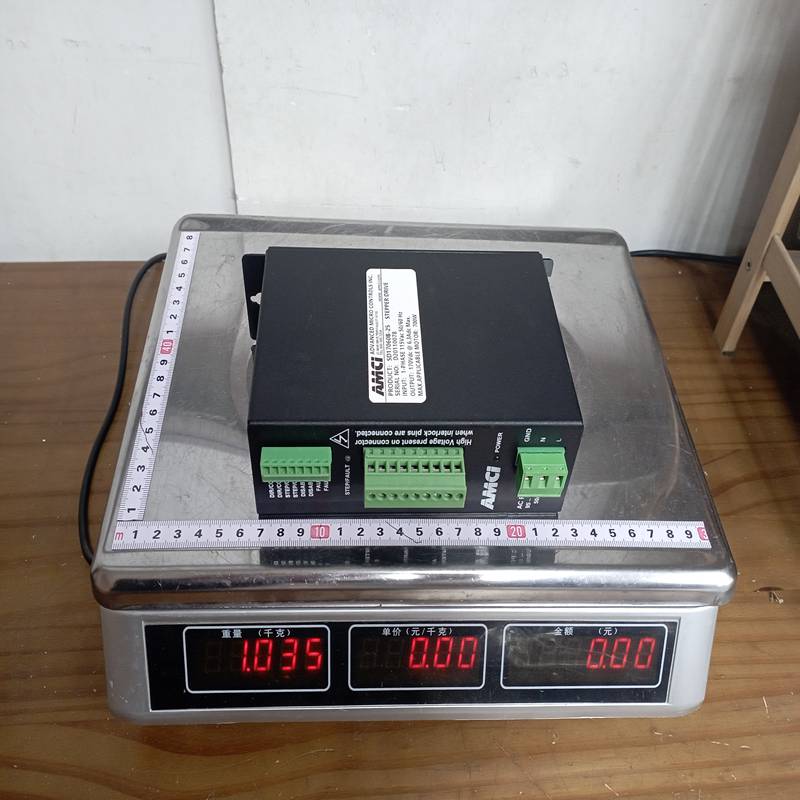

Product Dimensions：

The AMCI SD17060B-25 is a high-performance, AC-powered microstepping driver designed by Advanced Micro Controls Inc. (AMCI). It is specifically engineered to provide smooth, precise control for 2-phase stepper motors in demanding industrial environments.

Key Product Specifications

The following table summarizes the primary technical parameters of the SD17060B-25:

Product Advantages

• Integrated Power Supply: Unlike DC-input drivers, the SD17060B connects directly to a standard AC outlet, eliminating the need for a separate, bulky DC power supply.

• High Torque Performance: The high-voltage bus (derived from the 120VAC input) allows the motor to maintain high torque even at significantly higher speeds compared to low-voltage DC drives.

• Anti-Resonance Technology: It features sophisticated circuitry to minimize motor vibrations and mid-range instability, ensuring ultra-smooth motion.

• Compact Design: Despite its power, the unit features a space-saving footprint, making it ideal for crowded control panels.

• Reliability: Built with industrial-grade protection against over-temperature, over-current, and short circuits.

Critical Precautions (Notes)

Warning: Improper installation can lead to equipment damage or electrical shock.

• Heat Dissipation: Ensure the driver is mounted in a well-ventilated area. If multiple units are used, maintain a minimum 1-inch clearance between them.

• Wiring: Never connect or disconnect the motor leads while the driver is powered. This will likely blow the output transistors.

• Grounding: Ensure the chassis is properly grounded to the electrical system to prevent EMI (Electromagnetic Interference) issues.

• Voltage Limits: Do not exceed 132 VAC. Using a step-up transformer or a 240V line will permanently damage the unit.

Common Applications

The SD17060B-25 is versatile and used across various precision-driven industries:

1. Packaging Machinery: High-speed labeling and filling systems.

2. CNC Machining: Driving axes for milling, routing, and laser cutting.

3. Material Handling: Precise conveyor control and automated sorting.

4. Medical Equipment: High-resolution positioning for imaging and laboratory automation.

5. Semiconductor Manufacturing: Wafer handling and assembly robots.
