Allen-Bradley 825-PIOD I/O Module

Description

Allen-Bradley 825-PIOD I/O Module

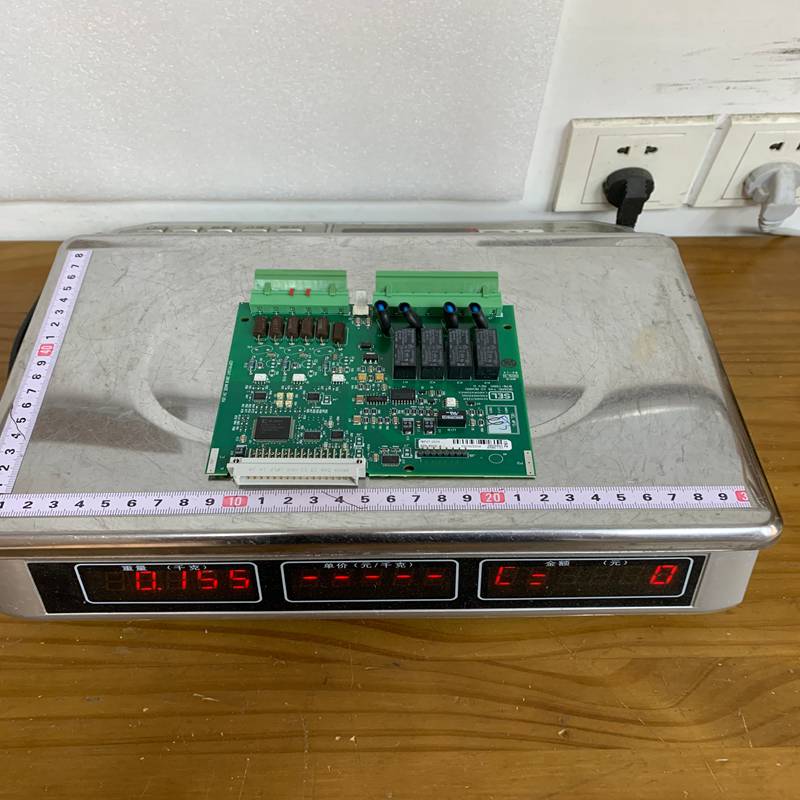

Product Dimensions：

The Allen-Bradley 825-PIOD is an Expansion I/O Module specifically designed for use with the 825-P Modular Protection System. This system is a sophisticated motor protection relay used primarily for large, high-voltage motors where monitoring and control of external inputs/outputs are required for comprehensive protection schemes.

Product Detailed Description

The 825-PIOD serves as an interface module that expands the capabilities of the core 825-P relay. It provides additional Digital Inputs and Relay Outputs to the system. This allows the protection system to not only monitor motor electrical parameters (like current and voltage) but also to incorporate logic from external devices (like pushbuttons or limit switches) and control external equipment (like contactors or alarms).

Technical Parameters

Product Advantages

• Enhanced Control Logic: Allows for the integration of custom interlocking and control schemes directly within the motor protection relay, reducing the need for an external PLC for basic motor logic.
• Modular Scalability: Users can add this module only when needed, keeping the base system cost-effective for simpler applications while allowing for expansion in complex ones.
• Simplified Wiring: By centralizing I/O at the motor protection relay, the amount of field wiring back to a central control room is often reduced.
• Seamless Integration: Because it is part of the 825-P family, the I/O points are automatically recognized by the system firmware, making configuration straightforward through the setup software.

Important Considerations (Precautions)

• Voltage Compatibility: Verify the control voltage for the digital inputs. Applying 240V to a 120V rated input will damage the module.
• Relay Contact Ratings: Ensure the output relay contacts are not overloaded. For high-current solenoids or large contactors, use an interposing relay to protect the 825-PIOD’s internal contacts.
• Power Down During Install: Always remove power from the 825-P base unit before attaching or removing the expansion module to prevent electronic “glitches” or damage to the communication bus.
• Firmware Version: Ensure the main 825-P unit’s firmware supports expansion modules; older revisions may require an update to recognize the 825-PIOD.

Product Applications

• Advanced Motor Starting: Used to manage complex starting sequences, such as Star-Delta or Autotransformer starting, by controlling the transition contactors.
• Local Fault Indication: Utilizing the relay outputs to drive local “Warning” or “Trip” pilot lights on the motor control center (MCC) door.
• Remote Interlocking: Taking an input from a remote “Emergency Stop” or a process interlock (like a low-flow switch) to trip the motor immediately via the 825-P logic.
• Process Automation: Using inputs to monitor the status of auxiliary equipment (like cooling fans or lubrication pumps) before allowing the main motor to start.
