Allen-Bradley 6200P-NS3C1 Control Panel

Description

Allen-Bradley 6200P-NS3C1 Control Panel

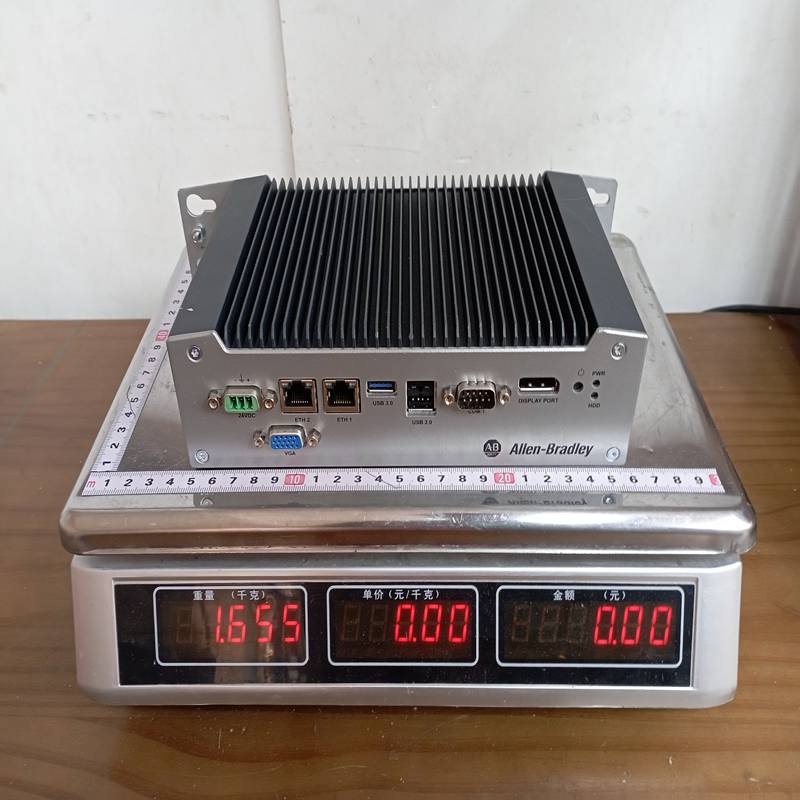

Product Dimensions：

The Allen-Bradley 6200P-NS3C1 is a high-performance Industrial Personal Computer (IPC) from the VersaView 6200P series. These units are designed to handle demanding visualization and data processing tasks in rugged industrial environments.

Product Description

The 6200P-NS3C1 is a Non-Display (Box) Industrial PC. Unlike panel PCs, this unit is designed to be mounted in a control cabinet or on a DIN rail, connecting to external monitors via DisplayPort or HDMI. It serves as the “brain” of a system, providing the computing power of a standard PC but with industrial-grade durability and longevity.

Technical Specifications

Product Advantages

• Industrial Ruggedness: Built without internal fans (fanless design) to prevent dust intake and mechanical failure, ensuring a longer lifecycle than consumer-grade PCs.

• Versatile Connectivity: Equipped with dual Gigabit Ethernet ports, allowing for network segmentation (e.g., one port for the office network and one for the machine network).

• High Performance: The Intel Core i3 processor provides enough overhead to run complex HMI software (like FactoryTalk View), data logging, and edge computing applications simultaneously.

• Compact Footprint: The “Non-Display” design is space-efficient, making it ideal for crowded electrical cabinets.

Safety & Maintenance Precautions

• Voltage Regulation: Ensure a stable 24V DC power source. Voltage spikes or drops outside the specified range can damage the internal circuitry.

• Thermal Management: While fanless, the unit relies on its heat-sink chassis. Ensure adequate clearance around the device for natural convection cooling.

• Grounding: Properly ground the chassis to the cabinet to prevent Electrostatic Discharge (ESD) and Electromagnetic Interference (EMI) issues.

• Software Updates: Use the Windows 10 IoT “Lockdown” features to prevent unauthorized software installations or accidental updates that could disrupt production.

Typical Applications

• HMI/SCADA Stations: Serving as the central server for FactoryTalk View SE or other SCADA software.

• Data Aggregation: Collecting data from PLCs via EtherNet/IP and pushing it to cloud platforms or local databases (IIoT Gateway).

• Machine Vision: Processing high-speed images from industrial cameras for quality inspection.

• Edge Computing: Running analytics at the “edge” of the network to reduce latency and bandwidth usage.
