Allen-Bradley 22A-A4P5N104 AC Variable Frequency Drive

Description

Allen-Bradley 22A-A4P5N104 AC Variable Frequency Drive

Product Dimensions：

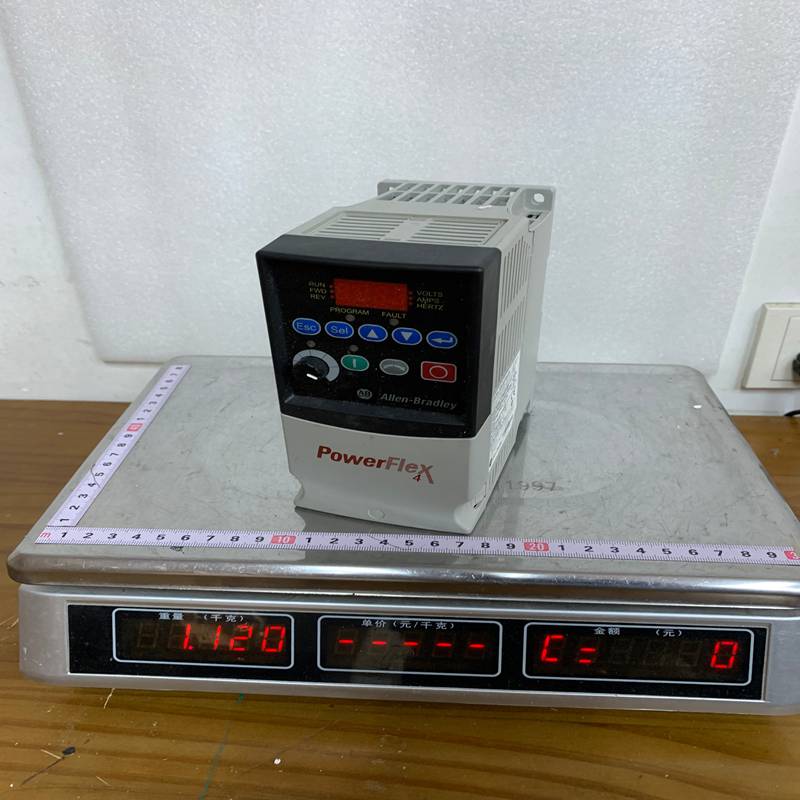

The Allen-Bradley 22A-A4P5N104 is a high-performance AC drive from the PowerFlex 4 family. It is designed to provide global OEMs and end-users with a compact, space-saving, and cost-effective solution for speed control of three-phase motors.

Product Detailed Description

The 22A-A4P5N104 is an adjustable frequency AC drive that converts single-phase AC input into three-phase AC output. It belongs to Frame A, the smallest frame size in the PowerFlex 4 lineup, making it ideal for tight control cabinets. It features a fixed digital keypad and an LED display for easy local configuration and real-time status monitoring.

Technical Parameters

Product Advantages

• Compact Footprint: The Frame A design allows for high-density mounting, significantly reducing the required panel space for small machines.
• Versatile Control: Offers both simple V/Hz control and Sensorless Vector Performance, which provides high torque even at low speeds and improved speed regulation.
• Zero Stacking: Multiple PowerFlex 4 drives can be mounted side-by-side with no clearance required between them, further optimizing cabinet space.
• Integrated Interface: The built-in keypad and 4-digit LED display allow for immediate setup and diagnostics without the need for external tools.
• Robust Overload: Capable of handling 150% overload for 60 seconds and 200% for 3 seconds, providing excellent protection for heavy-duty starting loads.

Important Considerations (Precautions)

• Input Phase: This specific model requires Single-Phase input power. Connecting it to 3-phase input or exceeding the 240V limit may cause hardware failure.
• Residual Voltage: After disconnecting the power, wait at least 3 minutes for the internal capacitors to discharge to safe levels before performing any maintenance.
• Grounding: If the drive is installed on an ungrounded or resistive grounded system, the MOV-to-ground jumper must be removed to prevent internal damage.
• Environment: Avoid mounting the drive in environments with excessive dust, metallic particles, or corrosive gases, as the IP20 rating does not provide sealed protection.

Product Applications

The 22A-A4P5N104 is commonly used in light industrial and OEM machinery:

• Conveyor Systems: Managing the speed of small transport belts and rollers.
• HVAC Systems: Control of small fans and centrifugal pumps to optimize energy consumption.
• Material Handling: Powering small mixers, agitators, and packaging equipment.
• Machine Tools: Speed control for grinders, drills, and small lathes.
• General OEM Equipment: Providing high-reliability motor control in various custom-built control panels.
