Allen-Bradley 1783-SFP100LX/A Single-Mode Fiber SFP Optical Module

Description

Allen-Bradley 1783-SFP100LX/A Single-Mode Fiber SFP Optical Module

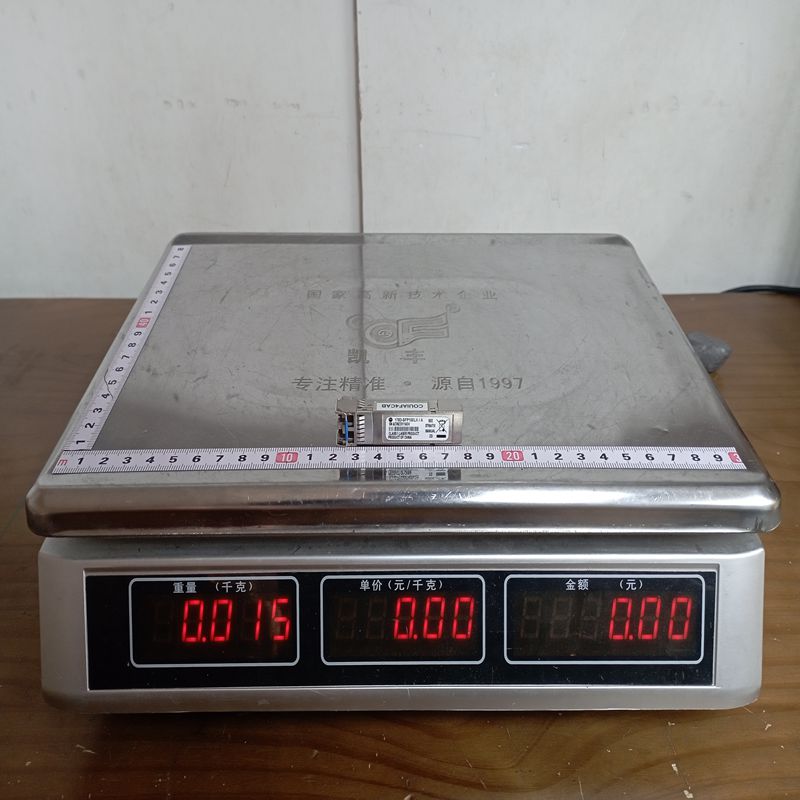

Product Dimensions：

Here is the detailed product information for the Allen-Bradley 1783-SFP100LX/A. This component is a Small Form-factor Pluggable (SFP) transceiver module designed for use with Stratix managed switches.

## Product Overview

The 1783-SFP100LX/A is a fiber optic transceiver that provides a high-speed, long-distance communication interface for industrial Ethernet networks. It allows for the conversion of electrical signals into optical signals, enabling data transmission over single-mode fiber (SMF) cables.

## Technical Specifications

## Key Advantages

• Extended Range: Unlike copper cabling (limited to 100m) or multi-mode fiber, this module supports distances up to 10 km, making it ideal for large-scale industrial sites.

• Industrial Ruggedness: Specifically designed to withstand extreme temperatures and electromagnetic interference (EMI) common in factory environments.

• Hot-Swappable: Can be installed or removed without powering down the switch, minimizing system downtime during maintenance or upgrades.

• Plug-and-Play: Automatically recognized by Allen-Bradley Stratix switches, ensuring seamless integration within the Integrated Architecture.

## Important Considerations & Precautions

• Fiber Compatibility: Ensure you are using Single-Mode Fiber. Using Multi-Mode fiber with this LX module will result in significant signal loss and connection instability.

• Laser Safety: This is a Class 1 Laser product. Never look directly into the optical bore or the end of a connected fiber cable, as infrared light can damage your eyesight.

• Cleanliness: Always keep the protective dust plugs in place when the module is not in use. Even microscopic dust particles can block the signal on a 1310nm wavelength.

• Handling: Use an ESD (Electrostatic Discharge) wrist strap when handling the module to prevent static damage to the internal circuitry.

## Product Applications

The 1783-SFP100LX/A is typically used in scenarios where data must travel between distant locations within a facility or across a campus:

1. Water/Wastewater Treatment: Connecting remote pumping stations to a central control room.

2. Oil & Gas: Linking wellheads or monitoring stations spread over a large geographical area.

3. Mining: Providing network connectivity through long tunnels where copper cabling is impractical.

4. Infrastructure: Connecting roadside cabinets or signaling systems in transportation networks.
