Allen-Bradley 1771-WI Terminal Adapter

Description

Allen-Bradley 1771-WI Terminal Adapter

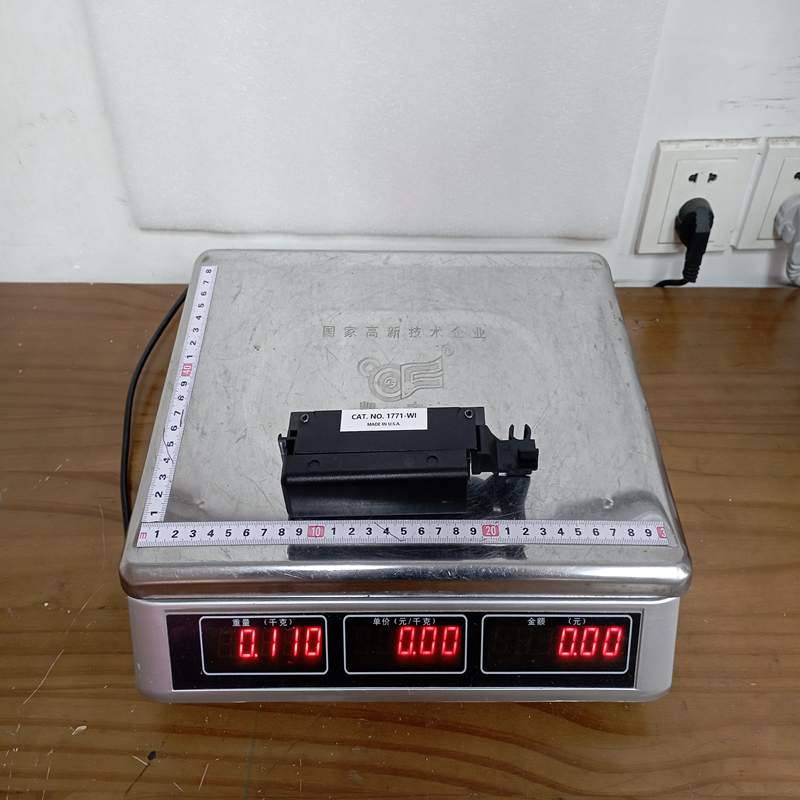

Product Dimensions：

The Allen-Bradley 1771-WI is a dedicated Field Wiring Arm belonging to the legacy PLC-5 / 1771 I/O platform. It is a critical hardware accessory designed specifically to establish secure, low-resistance electrical connections between field sensors and Allen-Bradley thermocouple or analog input modules.

Product Detailed Description

The 1771-WI is an 18-terminal wiring arm that acts as the physical interface for field wiring. In the 1771 I/O architecture, the wiring arm clips directly onto the chassis slot rather than the module itself. This clever design allows the actual I/O module (such as the 1771-IXE Thermocouple Input Module) to be hot-swapped or replaced without disconnecting a single field wire, radically lowering maintenance downtime.

Technical Parameters

Product Advantages

• Module Swapping Without Rewiring: Since the 1771-WI features a swing-arm design fixed to the chassis, you can slide out a failed I/O module and insert a new one seamlessly. Field wiring remains undisturbed.
• Gold-Plated Reliability: Specially designed with gold contact plating to maximize signal integrity. This minimizes micro-ohm contact resistance, which is absolutely essential when dealing with millivolt signals from thermocouples.
• Mismatched Module Prevention: The wiring arm can be mechanically keyed to match only a specific type of I/O module, preventing an operator from accidentally inserting a high-voltage AC module into a slot wired for low-voltage thermocouples.

Important Considerations & Precautions

• Cold Junction Compensation (CJC): When used specifically with thermocouple modules, remember that the 1771-WI wiring arm acts as the cold junction. Ensure the CJC thermistors embedded on the module side are making proper thermal contact with the arm for accurate temperature translation.
• Shield Grounding: Analog and thermocouple signals are highly susceptible to electromagnetic interference (EMI). Ensure that cable shields are properly terminated and grounded at a single point (typically the chassis ground bar) rather than floating or looped.
• Torque Tuning: Over-tightening terminal screws can strip the threads, while under-tightening will lead to intermittent open-circuits or erratic temperature readings. Stick closely to the 7–9 lb·in torque specification.

Product Applications

The 1771-WI wiring arm is predominantly utilized in heavy industrial environments where legacy Allen-Bradley PLC-5 systems are still handling critical thermal and process operations:

• Metal Processing & Foundries: Connecting high-temperature thermocouples monitoring blast furnaces, casting molds, and heat-treatment ovens.
• Petrochemical Plants: Interfacing with temperature sensors on distillation columns, cracking units, and storage tanks.
• Glass Manufacturing: Transporting millivolt data from glass melt-tank sensors where exact thermal control prevents process crystallization.
• Legacy System Support: Maintaining and scaling older automated lines utilizing 1771 chassis without upgrading the entire system infrastructure to ControlLogix.
