Allen-Bradley 1771-IXE Thermocouple/Analog Input Module

Description

Allen-Bradley 1771-IXE Thermocouple/Analog Input Module

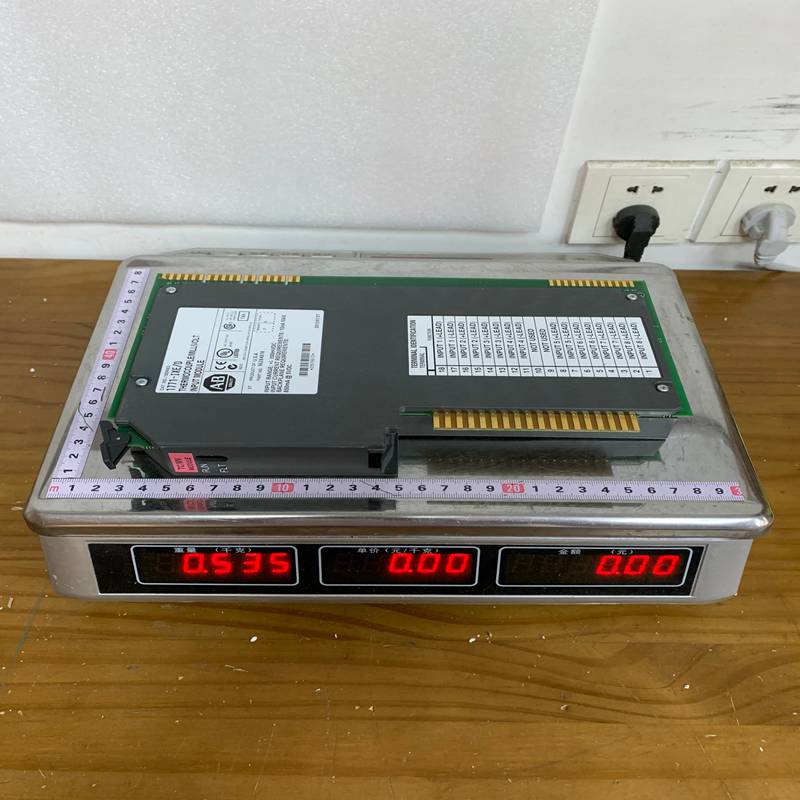

Product Dimensions：

The Allen-Bradley 1771-IXE is a high-resolution Thermocouple/Millivolt Input Module from the legacy PLC-5 family. It is designed to interface temperature sensors or low-voltage millivolt signals directly with a PLC-5 universal I/O chassis.

Product Detailed Description

The 1771-IXE is an intelligent block-transfer module that converts analog signals from up to 8 thermocouple or millivolt sensors into digital data. It features on-board signal conditioning, scaling, and cold-junction compensation (CJC), which eliminates the need for external transmitters. The module supports a wide variety of thermocouple types (B, E, J, K, R, S, T) and can also be configured for high-accuracy millivolt measurements.

Technical Parameters

Product Advantages

• Direct Interfacing: Connects thermocouples directly to the PLC without requiring external signal converters, reducing wiring complexity and cost.
• On-board Intelligence: Performs linearizing and scaling of thermocouple signals into degrees Celsius or Fahrenheit internally, freeing up the PLC processor for other tasks.
• High Density: Eight channels per slot allow for efficient use of space in the 1771 I/O chassis.
• Diagnostic Capabilities: Includes status indicators (LEDs) to signal module health and fault conditions, such as open-circuit detection for sensors.
• Legacy Reliability: Proven track record in thousands of industrial installations worldwide for decades.

Important Considerations (Precautions)

• Cold-Junction Compensation (CJC): For accurate temperature readings, the 1771-NJC cold-junction compensation thermistor must be correctly installed on the wiring arm.
• Shielding & Noise: Thermocouple signals are very low voltage (mV) and highly susceptible to noise. Always use shielded, twisted-pair thermocouple extension wire and keep it separate from high-power cables.
• Block Transfer: Data is moved between the module and the processor using BTR (Block Transfer Read) and BTW (Block Transfer Write) instructions. Ensure these are programmed correctly in the PLC-5 logic.
• Obsolescence: The 1771 series is a legacy platform. While parts are available through resellers, consider a migration plan to ControlLogix (1756) for long-term sustainability.

Product Applications

The 1771-IXE is primarily used in thermal processing environments:

• Ovens & Furnaces: Real-time temperature monitoring and control in industrial heat-treating applications.
• Plastic Injection Molding: Monitoring barrel and nozzle temperatures to ensure consistent melt quality.
• Chemical Reactors: Tracking temperature gradients in high-pressure or exothermic reactions.
• Boiler Control: Measuring steam and flue gas temperatures in power plants.
• Cryogenics: Utilizing Type T thermocouples for low-temperature monitoring.
