Allen-Bradley 1715-OB8DE 8-Point Digital Output Module

Description

Allen-Bradley 1715-OB8DE 8-Point Digital Output Module

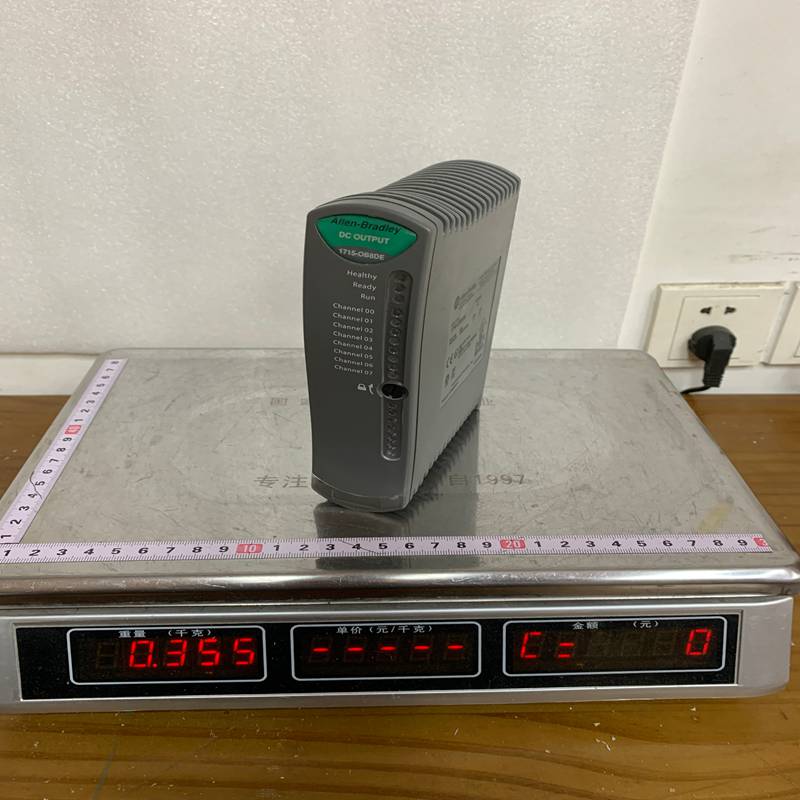

Product Dimensions：

The Allen-Bradley 1715-OB8DE is a high-availability 8-Channel Digital Output Module designed for the 1715 Redundant I/O System. It is specifically engineered for critical applications where system uptime is paramount and fault tolerance is required.

Product Detailed Description

The 1715-OB8DE is a “Digital Output 24V DC 8-Channel Diagnostic” module. Its standout feature is its ability to operate in a redundant configuration. When paired with another identical module in a 1715 redundant adapter base, the system ensures that the output remains controlled even if one module fails. The “DE” suffix indicates enhanced diagnostics, allowing the system to monitor the health of the output circuit and the field-side load.

Technical Parameters

Product Advantages

• Fault Tolerance: Supports N+1 redundancy. In a redundant pair, if one module experiences a hardware fault, the secondary module takes over seamlessly without interrupting the field signal.
• Advanced Diagnostics: Capable of detecting “Line Faults” (open or short circuits) even when the output is in the OFF state, allowing for proactive maintenance before a failure occurs.
• Hot-Swappable: Supports “Removal and Insertion Under Power” (RIUP), meaning you can replace a faulty module without shutting down the controller or the remaining healthy I/O modules.
• SIL Rating Compatibility: Often used in systems requiring SIL 2 safety integrity levels when configured according to Rockwell Automation’s safety guidelines.

Important Considerations & Precautions

• Configuration: This module must be used with the 1715-AENTR redundant adapter and the appropriate 1715-TBDD or 1715-TBDD2 termination assembly.
• Minimum Load: To utilize the diagnostic features (like open-load detection) effectively, the connected load must meet the minimum current requirements specified in the technical manual.
• Polarity: Ensure the 24V DC field power is wired with correct polarity. While the module has protection, incorrect wiring can lead to diagnostic errors or lack of output control.
• Firmware: Ensure the module firmware is synchronized with the 1715-AENTR adapter for stable redundant communication.

Product Applications

The 1715-OB8DE is used in “Mission Critical” environments where a signal failure could result in significant financial loss or equipment damage:

• Oil & Gas: Controlling critical isolation valves on offshore platforms or pipelines.
• Power Generation: Managing auxiliary systems and emergency trip signals in power plants.
• Chemical Processing: Operating solenoid valves for batch reactors where a process interruption would spoil the product.
• Emergency Shutdown (ESD): Serving as a highly available interface for non-safety-critical but essential shutdown sequences.
