ABB UMC22-FBP.01SAJ510000R0400 Control Unit

Description

ABB UMC22-FBP.01SAJ510000R0400 Control Unit

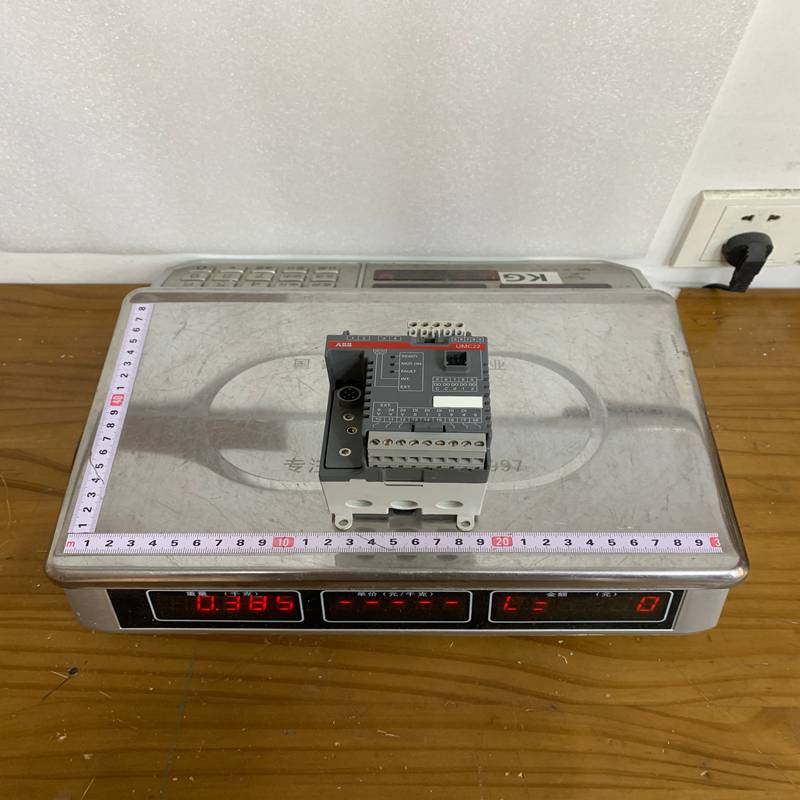

The ABB UMC22-FBP.01 (Order Code: SAJ510000R0400) is a versatile and compact Universal Motor Controller. It is part of the ABB FieldBusPlug (FBP) range, designed to provide comprehensive motor protection, control, and monitoring in a single device. It acts as an intelligent interface between the motor starter and the higher-level control system.

Product Detailed Description

The UMC22-FBP.01 is an intelligent motor management system that combines the functions of an electronic motor protection relay, a control unit, and a communication interface. It is typically installed in Motor Control Centers (MCC) to protect three-phase motors against common faults while providing real-time operational data via fieldbus protocols (like PROFIBUS, DeviceNet, or Modbus) when used with the appropriate ABB FieldBusPlug.

Technical Parameters

Product Advantages

• Comprehensive Protection: Provides advanced protection including electronic overload, phase failure, phase unbalance, locked rotor, and earth fault detection.
• Reduced Wiring: By integrating control logic and protection in one unit, it significantly reduces the amount of wiring required in the control cabinet.
• Fieldbus Neutrality: The FBP concept allows the device to connect to various fieldbus systems by simply swapping the communication plug, making it highly adaptable to different factory standards.
• Predictive Maintenance: Monitors motor operating hours and start cycles, allowing maintenance teams to perform service based on actual usage rather than fixed schedules.
• Diagnostic Clarity: Features clear LED indicators and detailed error messaging (via bus or operator panel) to drastically reduce troubleshooting time.

Important Considerations (Precautions)

• Current Range Scaling: For motor currents above 63 A, external current transformers must be used in conjunction with the UMC22.
• Supply Stability: The unit requires a stable 24 V DC supply. Large voltage fluctuations can cause communication drops or unexpected relay tripping.
• Configuration: The device must be correctly parameterized (set the motor’s rated current, trip class, etc.) using either the ABB control panel or the configuration software before the motor is started for the first time.
• Isolation: Always ensure the control power is disconnected before installing or removing the FieldBusPlug to avoid damage to the communication port.

Product Applications

The UMC22-FBP.01 is widely used in industries where motor uptime is critical:

• Oil & Gas / Chemical: Used in MCCs for pumps, fans, and compressors where detailed diagnostics are required for safety and efficiency.
• Water & Wastewater: Managing submersible pumps and treatment plant motors with remote monitoring capabilities.
• Mining & Minerals: Protecting heavy-duty conveyors and crushers from overload and mechanical jams.
• Food & Beverage: Coordinating complex conveyor systems and mixing motors in automated production lines.
