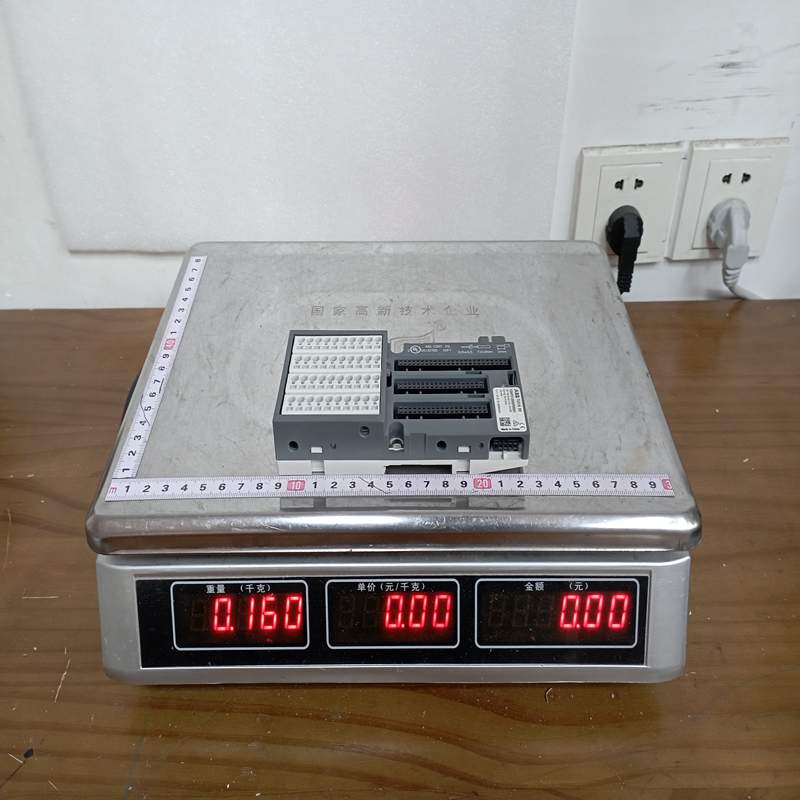

ABB TU516 1SAP212000R0001 Terminal Base

Description

ABB TU516 1SAP212000R0001 Terminal Base

The ABB TU516 (1SAP212000R0001) is a high-reliability I/O Terminal Unit from ABB’s flagship AC500 Programmable Logic Controller (PLC) platform. It serves as the physical and electrical foundation for mounting AC500-eCo and standard AC500 expansion modules.

Product Detailed Description

The TU516 is a passive base unit designed to simplify the wiring and integration of I/O modules. It features spring terminals, which allow for rapid, tool-free wiring while ensuring excellent vibration resistance. The module acts as a bridge, linking the field signals (sensors, actuators) to the active electronic I/O module via its internal backplane bus.

Technical Parameters

Product Advantages

• Vibration-Proof Spring Terminals: The push-in spring connection ensures gas-tight, vibration-resistant contact, eliminating the need for periodic screw tightening in high-vibration industrial environments.
• Pre-Wiring Capability: The terminal unit can be mounted and completely wired before the active electronic I/O module is plugged in. This protects sensitive electronics during the mechanical construction phase.
• Easy Module Replacement: If an active I/O module needs to be replaced, it can be unplugged from the TU516 without disturbing the field wiring, drastically reducing maintenance downtime (hot-swap functionality depends on the controller master module).
• Clear Identification: Features distinct terminal labeling and dedicated slots for marker strips, reducing the risk of wiring errors during installation.

Important Considerations & Precautions

• Module Compatibility: Ensure the specific active I/O module you intend to use matches the TU516 footprint and pinning configuration. Consult the ABB AC500 system manual for validated combinations.
• Current Limits: Do not exceed the maximum current capacity of 8 A per power supply grouping on the terminal unit. Overloading can cause thermal damage to the internal bus tracks.
• Wire Stripping: Ensure wires are stripped to the manufacturer’s exact recommended length (typically 10 mm to 11 mm). Under-stripping causes poor contact, while over-stripping leaves exposed conductors that risk short circuits.
• Isolation: When mixing 24 V DC and 230 V AC signals in adjacent modules, ensure appropriate segregation and grounding protocols are followed as per local electrical codes.

Product Applications

The TU516 is utilized in a wide array of automated control systems wherever the ABB AC500 PLC platform is deployed:

• Factory Automation: Decentralized I/O stations on automotive assembly lines, conveyor networks, and packaging machinery.
• Renewable Energy: Wind turbine pitch control panels and solar tracking control cabinets requiring vibration-resistant wiring.
• Marine Automation: Shipboard control applications, such as steering gear, ventilation, and auxiliary machinery monitoring, where continuous engine vibrations are present.
• Infrastructure and HVAC: Pumping stations, water treatment systems, and large-scale building environmental controls.
