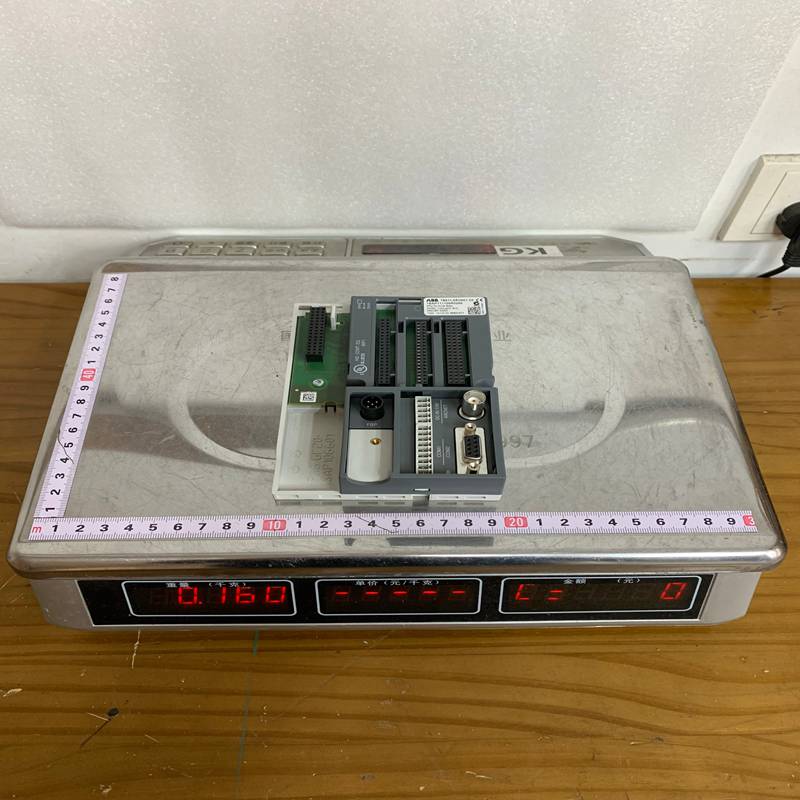

ABB TB511-ARCNET Communication Board

Description

ABB TB511-ARCNET Communication Board

The ABB TB511-ARCNET is a specialized communication interface module designed for the AC500 Programmable Logic Controller (PLC) platform. It allows the AC500 CPU to communicate over an ARCNET (Attached Resource Computer Network) fieldbus, which is known for its high-speed, deterministic performance in industrial environments.

Product Detailed Description

The TB511-ARCNET is a “Communication Coupler” that plugs directly into the left side of an AC500 CPU (such as the PM57x, PM58x, or PM59x). ARCNET is a token-passing network protocol, which ensures that every device on the network has a guaranteed time slot to transmit data, making it highly reliable for real-time control applications.

Technical Parameters

Product Advantages

• Determinism: The token-passing mechanism eliminates data collisions, ensuring that critical control signals are delivered with consistent, predictable timing.
• Seamless CPU Integration: As a plug-in coupler, it requires no external power wiring; it draws power and exchanges data directly through the AC500 internal bus.
• Easy Configuration: Fully supported within the Automation Builder (CoDeSys-based) software environment, allowing for straightforward network mapping and variable linking.
• Robustness: ARCNET is historically one of the most stable industrial protocols, offering excellent resistance to electromagnetic interference (EMI).

Important Considerations (Precautions)

• Node Addressing: Each TB511 on the network must have a unique station address (Node ID). Duplicate addresses will cause network instability or failure to join the “reconfiguration” cycle.
• Bus Termination: Correct termination (typically 93 \Omega for coaxial ARCNET) is mandatory at both ends of the physical bus to prevent signal reflections.
• CPU Limits: Check the maximum number of communication couplers supported by your specific AC500 CPU model. Most CPUs support up to 4 couplers on the left side.
• Cabling: Ensure the cable length and type comply with ARCNET standards. Using incorrect cable impedance can significantly degrade the 2.5 Mbit/s signal.

Product Applications

The TB511-ARCNET is typically used in complex automation architectures:

• Peer-to-Peer Communication: High-speed data exchange between multiple AC500 PLCs in a distributed control system.
• Legacy System Integration: Connecting modern AC500 controllers to existing ARCNET-based plant networks or older ABB systems.
• Machine-to-Machine (M2M): Coordinating synchronized movements or state-sharing across several independent machines on a production line.
• Infrastructure: Used in tunnel ventilation, water treatment, or power distribution where deterministic communication over medium distances is required.
