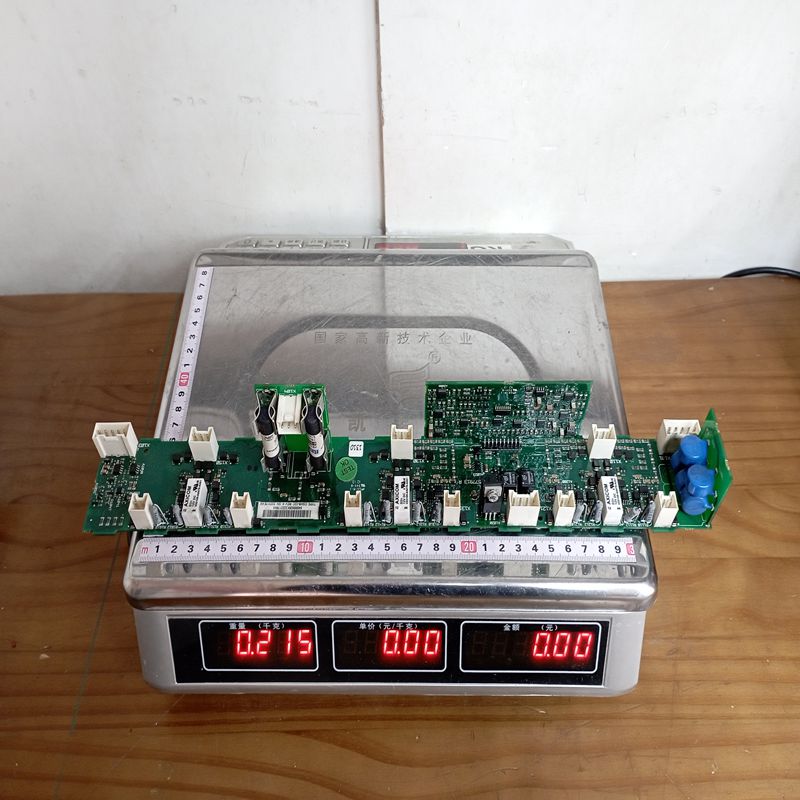

ABB SDCS-PIN-51 3BSE004940R1 Output Module

Description

ABB SDCS-PIN-51 3BSE004940R1 Output Module

The ABB SDCS-PIN-51 with part number 3BSE004940R1 is a critical component, typically functioning as a Measurement Card or Signal Conditioning Module within ABB drive systems, such as the DCS500 or DCS800 series.

📋 Product Details and Function

• Manufacturer: ABB (Asea Brown Boveri)

• Part Number: 3BSE004940R1

• Model/Type Designation: SDCS-PIN-51

• General Function: The SDCS-PIN-51 card primarily acts as a Measurement Card or Analog Input Module (also sometimes listed as an “Output module” due to its role in signal processing) in a Variable Speed Drive (VSD) or industrial control system.

• Key Role: It is responsible for high-precision signal conversion and robust electrical isolation, which is essential for maintaining data integrity and feeding crucial measurement data (like current, voltage, or feedback from sensors) into the drive’s main control unit.

⚙️ Product Parameters (Specifications)

Exact detailed specifications typically require consulting the official ABB product manual for the specific drive series it is used in (e.g., DCS800). However, based on general industry knowledge and product listings, here are the typical parameters:

⭐ Product Advantages

• High Precision: Excels in providing high-precision signal conversion, ensuring accurate data for the drive’s control algorithms.

• Robust Isolation: Offers robust electrical isolation, which is crucial for protecting the sensitive control electronics from electrical noise and high-voltage transients common in industrial environments.

• System Integration: Designed specifically for seamless integration into ABB’s DC Drive systems (DCS series), ensuring reliable and optimized performance.

• Reliability: As an original ABB spare part, it maintains the high quality and durability required for continuous operation in demanding industrial applications.

⚠️ Precautions (Important Considerations)

• Electrostatic Discharge (ESD): As a sensitive electronic circuit board, it must be handled with proper ESD precautions (e.g., using anti-static bags and wrist straps) to prevent damage.

• Compatibility: Always confirm the revision level (e.g., Rev F, Rev C) and part number (3BSE004940R1) to ensure it is the correct spare part for your specific drive model and firmware version. Using an incorrect revision can lead to system faults or failure.

• Installation: Installation should be performed by qualified technical personnel familiar with the ABB drive system and its safety procedures.

• Power Safety: Before installation or removal, ensure the main drive power and all auxiliary power sources (including external control power) are completely disconnected and that all residual stored energy (e.g., in DC link capacitors) has discharged.

🎯 Product Applications

The SDCS-PIN-51 Measurement Card is an essential internal component used in Industrial DC Drive Systems. Its primary applications are where highly accurate signal measurement is required to control large DC motors and processes:

• DC Drive Control: Used in high-power DC Drive applications (like the ABB DCS800) to measure motor current, voltage, speed, and other critical parameters for closed-loop control.

• Process Industries: Found in demanding process control environments, including:

  • Metals Industry: Rolling mills, coilers, tension control.

  • Paper and Pulp: Winders, section drives.

  • Cranes and Hoists: Lifting and transport systems.

• General Industrial Automation: Used in any automation system requiring precise and isolated measurement of analog process variables to feed into a central control board.
