ABB SDCS-CON-3A DC Speed ​​Controller Main Control Board

Description

ABB SDCS-CON-3A DC Speed ​​Controller Main Control Board

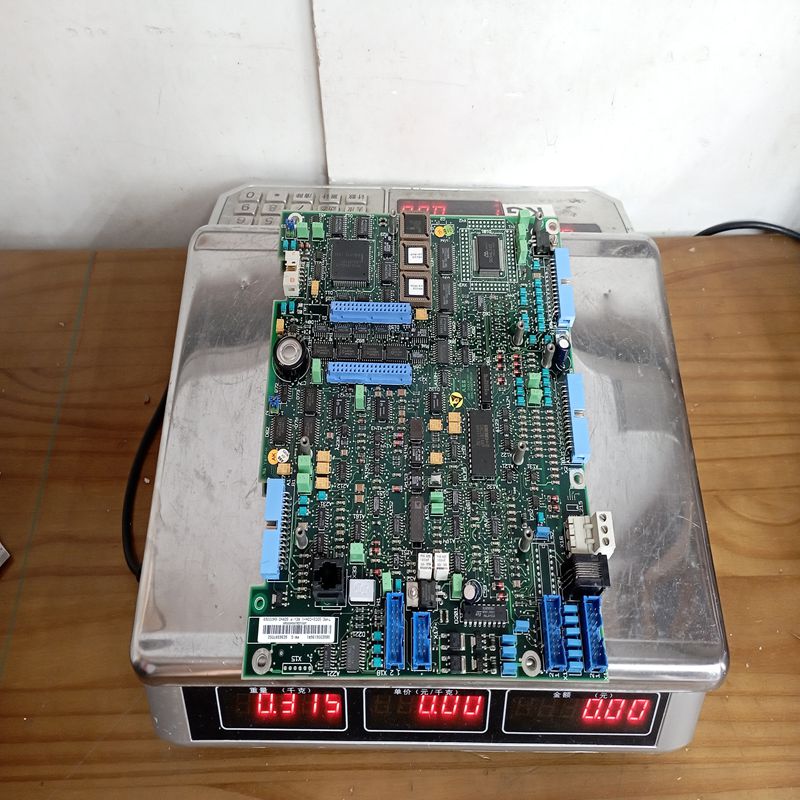

The SDCS-CON-3A is the main control circuit board (or control unit) for the ABB DCS400 series of compact DC drive systems. It handles the processing, control logic, regulation, and communication for the DC drive, allowing it to accurately control the speed and torque of a DC motor.

📝 Product Details (Product Description)

• Type: Control Board / Control Unit

• Family: Part of the ABB DCS400 series of DC Thyristor Power Converters (DC Drives).

• Function: It contains the main processing unit and necessary interfaces (digital and analog I/O) to perform the high-level control and regulation tasks for the drive, such as current, speed, and field regulation.

• Component: It often works in conjunction with other boards like the SDCS-PIN-3A (Power Interface Board) and SDCS-FIS-3A (Field Exciter Board) within the DCS400 drive module.

📊 Product Parameters (Key Specifications)

Since the SDCS-CON-3A is a component board, its technical data is integrated into the overall specifications of the DCS400 drive system. However, its own specifications often include:

✨ Product Advantages (Key Benefits)

• High Performance Digital Control: Provides precise and dynamic control of the DC motor’s speed and torque, leading to better process control and product quality.

• Compact Integration: Being the core of the DCS400, it enables a compact and space-saving drive unit suitable for machine builders and smaller installations.

• Comprehensive Diagnostics: The digital nature of the board allows for extensive internal diagnostics, simplifying troubleshooting and reducing downtime.

• Flexible I/O Structure: Provides a range of configurable digital and analog I/Os to easily integrate with PLCs, HMIs, and other control systems.

• Application Macros: The associated software often includes predefined application macros, which simplify configuration for common industrial tasks, reducing startup time.

⚠️ Precautions (Safety and Operational Notes)

• Electrostatic Discharge (ESD): As a sensitive electronic control board, it must always be handled with appropriate ESD precautions (e.g., grounded wrist straps) to prevent damage.

• Power Down: Always ensure the main power and control power to the DCS400 unit are completely disconnected and locked out before installing, removing, or servicing the SDCS-CON-3A board.

• Firmware/Software Compatibility: If replacing the board, ensure the firmware version is compatible with the other components in the drive system and the application software.

• Correct Installation: The board must be securely seated in its designated slot within the DCS400 module to ensure reliable electrical contact and mechanical stability.

• Documentation: Refer to the official ABB DCS400 hardware and operating manuals for specific wiring, configuration, and troubleshooting procedures.

🏭 Product Applications (Typical Uses)

The DCS400 drive system, controlled by the SDCS-CON-3A board, is ideal for a wide range of industrial applications requiring reliable and precise DC motor control.

• Processing Lines: Control of winders, unwinder, tension control, and line sections in industries like paper, film, and textiles.

• Material Handling: Conveyors, cranes, and hoists where smooth starting, stopping, and speed regulation are critical.

• Extruders and Mixers: Providing precise speed and torque control for plastics and rubber processing.

• Metal Processing: Control of rolling mill stand drives or other ancillary equipment.

• Pumps and Fans: Applications requiring adjustable speed DC motor control.
