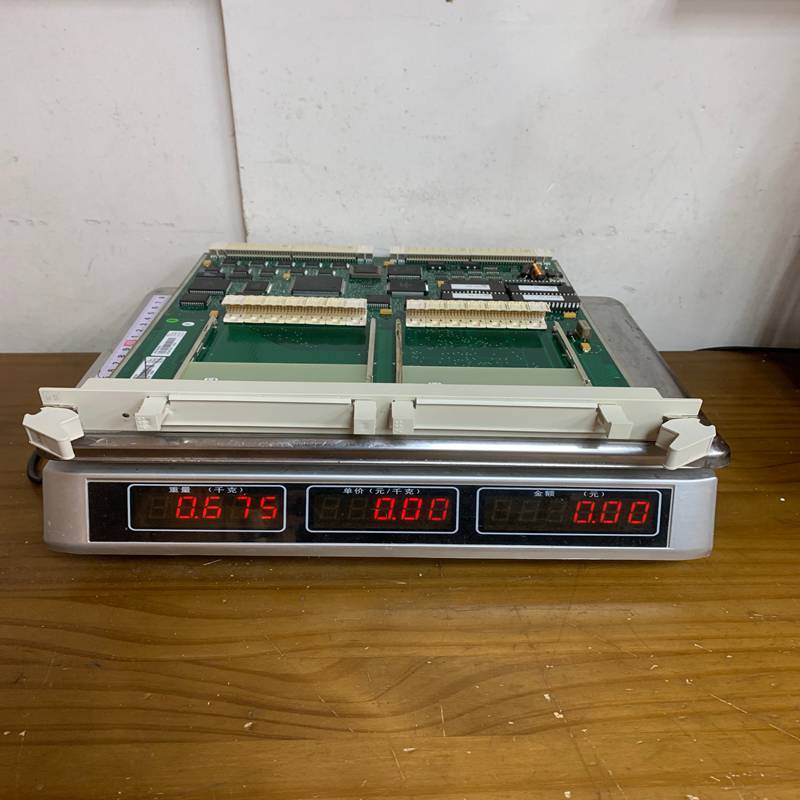

ABB SC520 3BSE003816R1 Submodule Carrier

Description

ABB SC520 3BSE003816R1 Submodule Carrier

The ABB SC520 (Part Number: 3BSE003816R1) is a high-performance Submodule Carrier used primarily within the ABB Advant Controller 450 (AC450) and other Master series control systems. It acts as a bridge, allowing the integration of various communication and specialized submodules into the main controller rack.

1. Product Description

The SC520 is a carrier module designed to house and interface up to two plug-in submodules. It serves as a physical and electrical interface between the controller’s backplane (S100 I/O bus or communication bus) and the specific submodules (such as the CI522 for Advant Fieldbus 100).

By using the SC520, engineers can customize the controller’s functionality—adding communication protocols or high-speed processing capabilities—without replacing the entire CPU unit.

2. Technical Specifications

3. Key Product Advantages

• Modular Flexibility: Allows for easy expansion of the system. You can swap submodules (like communication interfaces) without disturbing the carrier’s wiring.

• Space Efficiency: It consolidates two submodules into a single rack slot, maximizing the density of the control cabinet.

• High Reliability: Built to industrial standards for continuous operation in harsh environments (heat, vibration, and electrical noise).

• Seamless Integration: Fully compatible with the ABB Advant OCS (Open Control System) architecture, ensuring plug-and-play recognition by the system software.

4. Product Applications

The SC520 is typically used in large-scale industrial automation environments, including:

• Communication Bridging: Hosting CI522 submodules to connect the AC450 controller to Advant Fieldbus 100 (AF100) networks.

• Power Plants: Managing high-speed data exchange in turbine control or boiler management systems.

• Oil & Gas: Used in distributed control systems (DCS) for offshore platforms and refineries.

• Pulp & Paper: Supporting the complex I/O requirements of paper machine control.

5. Important Considerations & Precautions

Caution: Always ensure the controller power is switched off before inserting or removing the SC520 carrier or its submodules to prevent electrical damage to the backplane.

• Static Discharge: Use an ESD (Electrostatic Discharge) wrist strap when handling the board, as the components are sensitive to static.

• Firmware Compatibility: Ensure that the submodules plugged into the SC520 are compatible with the version of the Advant Controller software you are running.

• Slot Constraints: Note that some submodules may have specific slot requirements (Slot 1 vs. Slot 2); consult the AC450 hardware manual for specific configurations.

• Cooling: Ensure the rack fans are operational, as the SC520 and its submodules can generate significant heat when fully loaded.
