ABB SA801F Auxiliary Module

Description

ABB SA801F Auxiliary Module

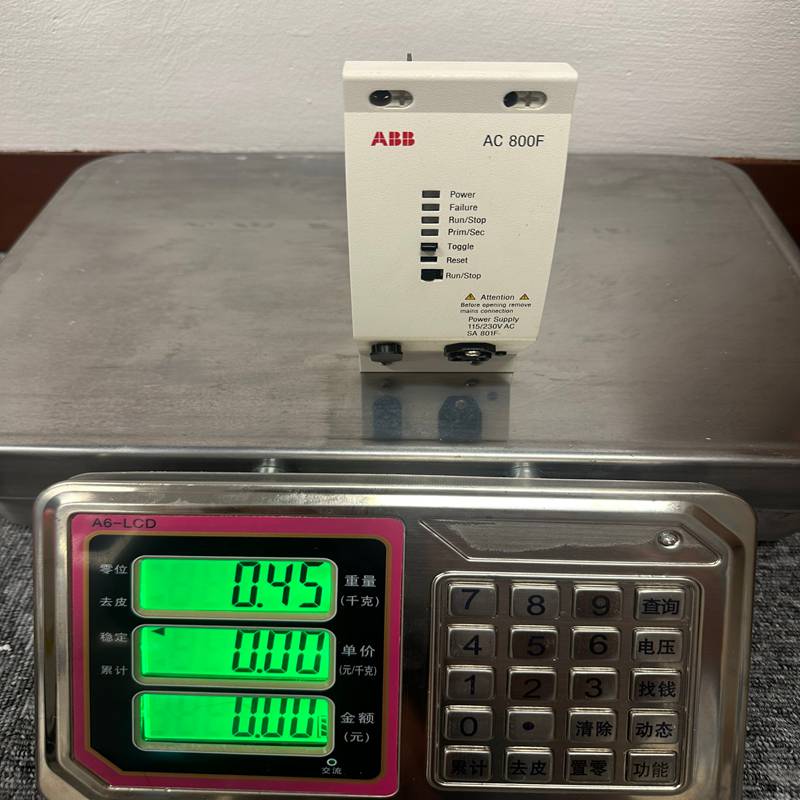

The ABB SA801F is a high-performance power supply module belonging to the Freelance AC 800F controller series. It is designed to provide reliable power to the CPU and I/O modules within the Freelance distributed control system (DCS) environment.

1. Product Detailed Description

The SA801F acts as the primary power source for the AC 800F station. It converts external supply voltage into the internal regulated voltages required by the backplane. Its robust design is specifically tailored for harsh industrial environments, ensuring that the control system remains operational even under fluctuating electrical conditions.

Key features include:

• Redundancy Support: Can be used in redundant configurations to increase system availability.

• Diagnostic LEDs: Front-panel indicators for quick status monitoring (e.g., Power OK, Overload).

• Compact Form Factor: Plugs directly into the AC 800F backplane, saving cabinet space.

2. Technical Specifications (Product Parameters)

3. Product Advantages

• High Reliability: Built with industrial-grade components to ensure a long Mean Time Between Failures (MTBF).

• Seamless Integration: Perfectly compatible with the Freelance 800F hardware ecosystem, requiring no additional wiring for the internal bus.

• Advanced Diagnostics: Real-time monitoring allows the DCS to alert operators before a power failure occurs.

• Ease of Maintenance: Modular design allows for “Hot Swap” capabilities (in redundant setups), meaning you can replace the module without shutting down the process.

4. Precautions & Maintenance

• Ventilation: Ensure adequate airflow around the controller rack. Overheating is a primary cause of shortened lifespan for power modules.

• Grounding: The AC 800F baseplate must be properly grounded to the industrial earth to prevent EMI (Electromagnetic Interference) issues.

• Voltage Verification: Always verify that the input voltage matches the module’s rating before powering on for the first time.

• Static Discharge: Use an ESD (Electrostatic Discharge) wrist strap when handling the module to avoid damaging internal CMOS components.

5. Product Applications

The SA801F is utilized across various industries that rely on the ABB Freelance DCS for process automation:

• Chemical & Pharmaceutical: Powering controllers that manage sensitive batch processes.

• Water & Wastewater: Ensuring continuous operation of pumps and filtration systems.

• Food & Beverage: Managing automated production lines where downtime is costly.

• Power Plants: Small to medium-sized power generation facilities for auxiliary control.
