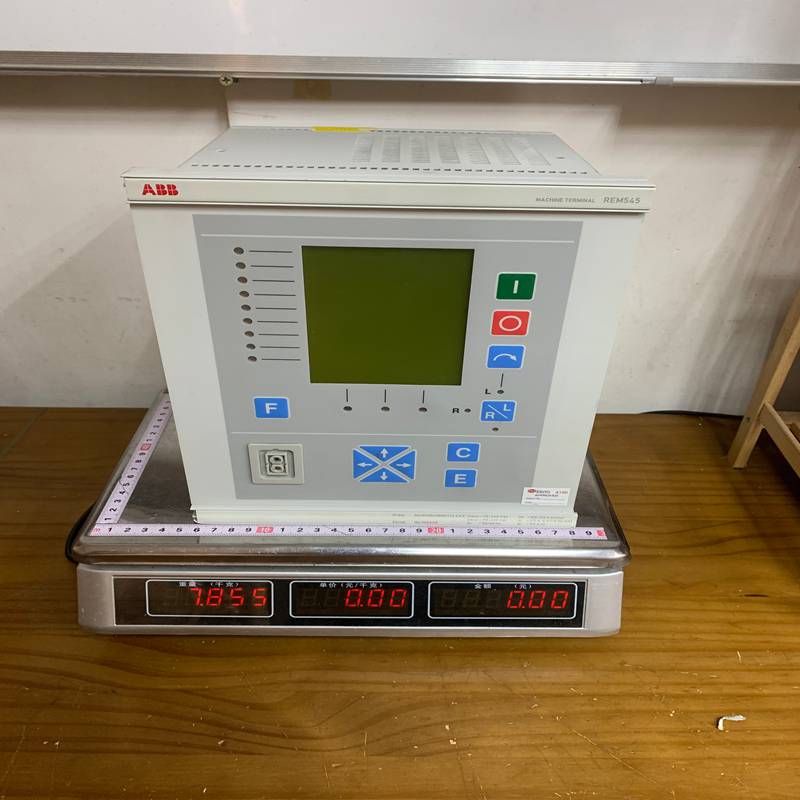

ABB REM545BM223AAAA Machine Protection Terminal Control Module

Description

ABB REM545BM223AAAA Machine Protection Terminal Control Module

The ABB REM545BM223AAAA is a high-performance Machine Terminal within the RE500 series, specifically designed for the protection, control, measurement, and supervision of medium and large synchronous and asynchronous motors.

## Product Overview

The REM545 is a comprehensive multi-function relay. It integrates all the necessary functions for motor protection into a single unit, reducing the need for multiple discrete devices. The “BM223AAAA” suffix denotes a specific hardware configuration, typically involving specific I/O counts, communication protocols, and power supply voltages.

## Key Technical Parameters

While specific sub-codes can vary, the general specifications for the REM545 series are as follows:

## Product Advantages

• Integrated Protection & Control: Combines motor protection with extensive I/O for controlling breakers and disconnectors, simplifying panel wiring.

• High Reliability: Built to withstand harsh industrial environments with robust electromagnetic compatibility (EMC) standards.

• Flexible Configuration: Uses the CAP505 or PCM600 software tools, allowing users to customize logic to specific plant requirements.

• Advanced Diagnostics: Records fault data, event logs, and disturbance recordings to help engineers analyze trips quickly.

• Condition Monitoring: Tracks motor runtime and start counts to assist in predictive maintenance.

## Critical Precautions (Safety & Handling)

• Electrostatic Discharge (ESD): This device contains sensitive electronic components. Always use a grounding strap when handling the internal circuit boards.

• CT Shorting: Never open the secondary circuit of a Current Transformer (CT) while the primary is energized. This generates lethal voltages.

• Firmware Compatibility: Ensure that any configuration software used is compatible with the specific firmware version of the REM545 to avoid data corruption.

• Environmental Limits: Do not exceed the rated operating temperature (typically -10°C to +55°C) to prevent premature component failure.

## Typical Applications

The REM545 is primarily used in heavy industries such as oil and gas, mining, water treatment, and power generation. Typical applications include:

• Large Induction Motors: Protecting pumps, fans, and compressors.

• Synchronous Motors: Management of excitation and power factor.

• Automatic Transfer Schemes: Managing motor loads during power source transitions.

• Substation Automation: Acting as a gateway for motor data to be sent to a SCADA or DCS system.
