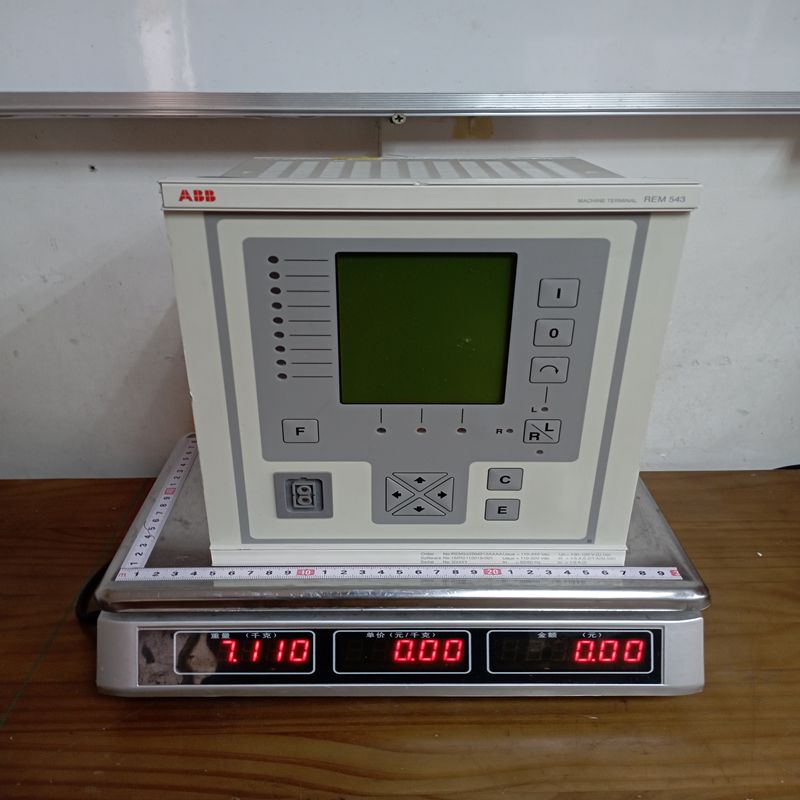

ABB REM543 REM543BM212AAAA Ethernet port module

Description

ABB REM543 REM543BM212AAAA Ethernet port module

The ABB REM543 is a member of the REM543 product family, which consists of sophisticated bay control and protection relays designed primarily for medium-voltage primary substations in utility and industrial power systems. The specific code, REM543BM212AAAA, defines the exact hardware configuration, including the type of housing, I/O modules, communication interfaces, and specific functions enabled.

1. Product Details and Parameters (Product Details & Parameters)

2. Product Advantages (Product Advantages)

The REM543 series offers several key benefits over traditional single-function relays:

• Integration and Consolidation: It combines protection, control, monitoring, and measurement into a single device (Integrated Protection and Control IED). This reduces wiring, panel space, and maintenance costs.

• Enhanced Reliability: The sophisticated algorithms and continuous self-monitoring improve system reliability and reduce unnecessary outages.

• Advanced Communication (IEC 61850): Full support for the IEC 61850 standard allows for seamless integration into modern Substation Automation Systems (SAS), enabling fast GOOSE messaging and simplified configuration.

• Modularity and Flexibility: The modular hardware structure allows for easy expansion or modification of I/O boards, making it adaptable to different bay configurations and future changes.

• User-Friendly Operation: The high-resolution graphical HMI provides clear visual status of the bay and facilitates local control and fault analysis.

• Extensive Disturbance Recording: Detailed fault and event recorders help in post-fault analysis and root cause determination.

3. Application Areas (Product Applications)

The ABB REM543BM212AAAA is specifically designed for controlling and protecting feeders, bays, and transformers in medium-voltage power systems.

Typical applications include:

• Utility Substation Feeders: Protection and control of outgoing and incoming medium-voltage lines (MV switchgear).

• Industrial Power Systems: Used in industrial facilities (e.g., steel, chemical, paper) to protect critical power distribution circuits.

• Distribution Automation: As a key Intelligent Electronic Device (IED) in smart grid applications utilizing IEC 61850 communication.

• Transformer Protection: Can be used for comprehensive protection of medium-sized power transformers.

• Generation Plants: Control and protection of auxiliary circuits and generator feeders.

4. Important Considerations (Notes and Important Considerations)

• Configuration Complexity: Due to its advanced features and integration capabilities, the initial configuration and parameter setting of the REM543 require specialized knowledge of protection principles and the use of ABB’s proprietary configuration software (e.g., PCM600).

• Firmware Management: Like all advanced IEDs, the relay requires proper management of its firmware versions and configuration files to ensure optimal performance and security.

• Commissioning and Testing: Thorough testing is crucial during commissioning. This includes primary and secondary injection tests to verify the correct operation of all protection functions and control logic.

• Cyber Security: When connected to an industrial network (IEC 61850), proper cyber security measures must be implemented to protect the device from unauthorized access.

• Specific Model Code: The full code REM543BM212AAAA must be accurately matched when ordering spare parts or replacement units, as even a small difference can mean a different I/O configuration or function set.
