ABB REF615E_1G Feeder Protection and Control Relay

Description

ABB REF615E_1G Feeder Protection and Control Relay

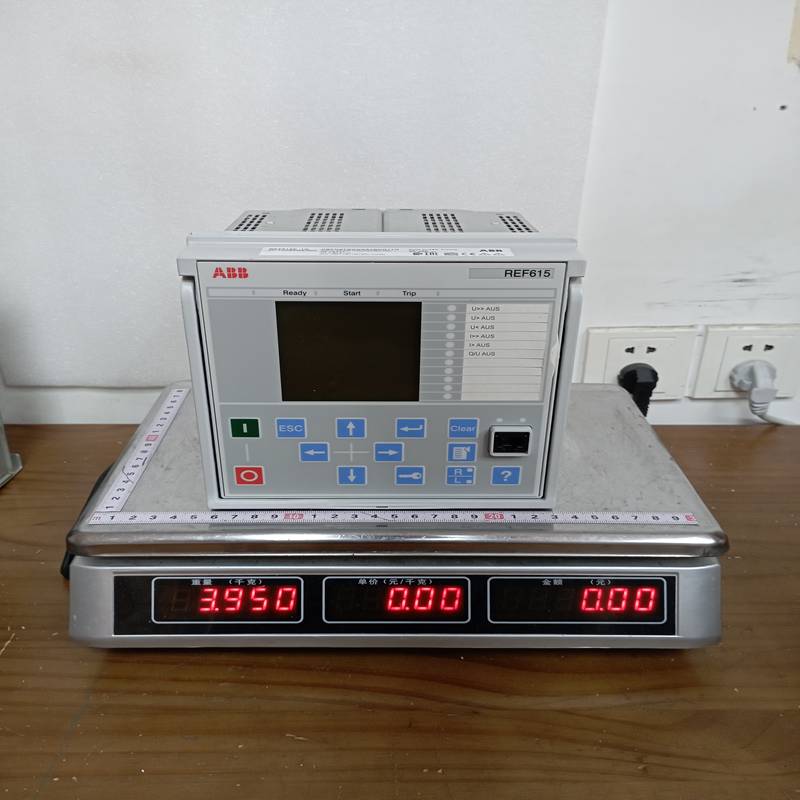

The ABB REF615E_1G is a dedicated feeder protection and control relay belonging to the globally recognized Relion® 615 series. It is engineered for the protection, control, measurement, and supervision of utility and industrial power distribution systems, including radial, looped, and meshed networks.

Product Detailed Description

The REF615E_1G is a compact and versatile Medium Voltage (MV) protection relay. The “E” configuration typically denotes a specific functional application package (such as advanced directional overcurrent and earth-fault protection, voltage, and frequency protection), while the “1G” represents the specific hardware generation and revision profile.

It natively supports the IEC 61850 communication standard for substation automation, enabling high-speed horizontal station-to-station communication (GOOSE messaging) and seamless integration into smart grids.

Technical Parameters

Product Advantages

• Advanced Protection Capability: Offers comprehensive overcurrent, earth-fault, thermal overload, arc flash, and optional directional/voltage protection within a single compact unit.
• Draw-out Design: Employs a plug-in/draw-out construction. This allows for rapid replacement or testing of the relay unit without disturbing the underlying terminal wiring, significantly minimizing system downtime.
• Web HMI Integration: Features a built-in web browser-based Human-Machine Interface (HMI) for effortless parameterization, monitoring, and event-log viewing without requiring complex proprietary software.
• Native IEC 61850 Compliance: Simplifies substation architecture by substituting hardwired inter-relay signals with Ethernet-based GOOSE messaging.
• Large Graphical Display: Offers a clear, customizable single-line diagram (SLD) mimic directly on the front panel to view breaker and switch positions instantly.

Important Considerations & Precautions

• CT Secondary Circuit Integrity: Never open-circuit a Current Transformer (CT) secondary path while the primary circuit is energized. High, lethal voltages can build up across open CT terminals.
• Configuration Matching: The REF615 must be configured using ABB’s PCM600 software. Ensure the application configuration (.pcmsv file) strictly matches the physical physical wiring diagram of your switchgear panel.
• Firmware Lifecycle: Verify that the relay’s firmware version is updated to patch known communication or safety bugs, especially when deploying inside an encrypted network.
• Dielectric Testing: Disconnect communication cables and sensitive electronic links before conducting any high-voltage insulation or dielectric tests on the switchgear panel.

Product Applications

The REF615E_1G is widely deployed across medium-voltage utility and industrial infrastructure:

• Utility Distribution: Radial or looped feeder circuits in primary and secondary substations.
• Industrial Plants: Protecting internal power networks in chemical plants, steel mills, pulp and paper facilities, and manufacturing complexes.
• Renewable Energy Integration: Feeder protection networks for wind farms and large-scale solar power generation plants connecting to the grid.
• Infrastructure Systems: Main incoming and outgoing feeder control in airports, railways, and data center power plants.
