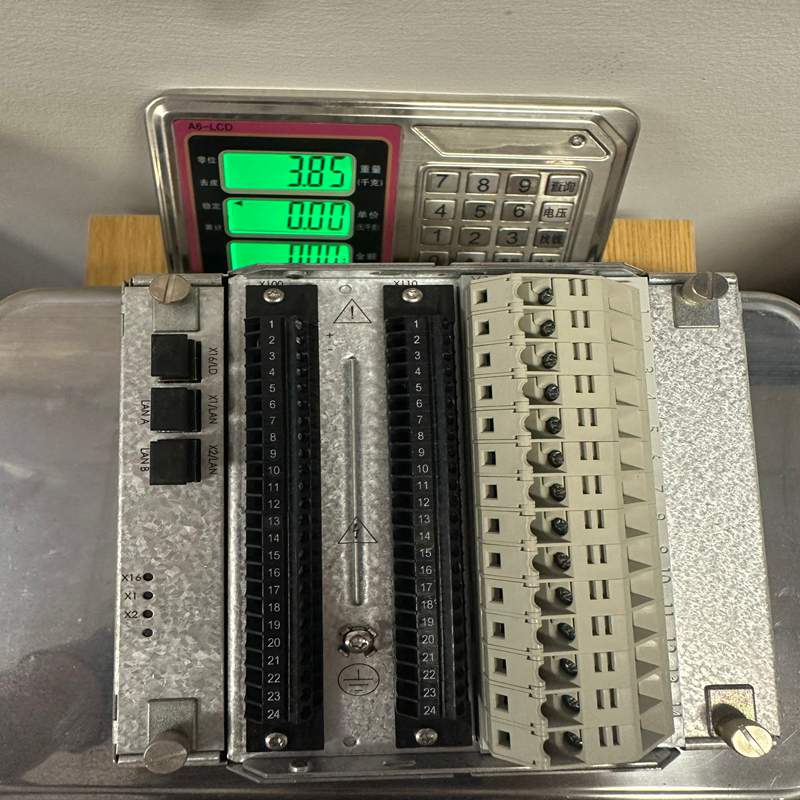

ABB RED615E-1G Feeder Protection and Control Relay

The ABB RED615E-1G is a dedicated line differential protection and control relay belonging to the Relion® 615 series. It is engineered for the protection, control, measurement, and supervision of overhead lines and cable networks in utility and industrial power distribution systems.

The RED615 is specifically optimized for phase-segregated line differential protection, making it ideal for absolute selectivity in complex network topologies.

Product Detailed Description

The RED615E-1G acts as the primary safety gate for medium-voltage power lines. By utilizing high-speed communication (usually via fiber-optic links) between the local and remote ends of a protected line, it continuously compares the electrical currents entering and leaving the line segment. If a discrepancy is found (indicating a fault within the zone), it trips the circuit breakers instantly to isolate the damaged line, while keeping the rest of the grid stable.

The “E” variant typically specifies a hardware configuration with advanced functionality, and the “1G” variant represents specific protocol options and standard configurations matching global utility standards.

Technical Parameters

Product Advantages

• Absolute Fault Selectivity: The unit provides unit protection via line differential metrics, meaning it only trips for faults strictly located between the local and remote relays, preventing false trips from external grid disturbances.
• Native IEC 61850 Implementation: Fully leverages horizontal GOOSE messaging for fast peer-to-peer communication between substation devices, reducing hardwired connections.
• Integrated Web HMI: Allows authorized engineers to access configuration, event logs, and disturbance recordings remotely through a standard web browser without specialized software.
• High-Speed Auto-Reclosing: Includes integrated multi-shot auto-reclosing functionality (79), which restores power automatically on overhead lines after temporary faults (like a tree branch strike).
• Cybersecurity Toolkit: Features robust security capabilities including role-based access control (RBAC), activity logging, and secure communication channels aligned with IEEE 1686.

Important Considerations & Precautions

• Communication Channel Stability: Because line differential protection relies on comparing real-time data between two distant ends, the communication link (fiber optic or pilot wire) must be highly stable with deterministic signal delays.
• CT Saturation: Ensure that the Current Transformers (CTs) on both ends of the protected line are matched in specification. Severe CT saturation during high external faults can lead to a false differential current reading.
• Firmware Coordination: When deployed in a pair (local end and remote end), ensure both RED615 relays have compatible firmware versions to prevent protocol mismatch errors over the protection communication link.
• Electrostatic Discharge (ESD): During installation or when handling plug-in card modules, use proper grounding gear to avoid destroying internal microprocessors.

Product Applications

• Substation Feeders: Protecting overhead lines and underground cables in utility distribution grids.
• Industrial Ring Networks: Securing closed-loop or looped distribution systems in critical industrial plants (e.g., chemical, oil & gas, large manufacturing).
• Distributed Generation Integration: Managing the grid connection point for wind farms, solar fields, and small hydro plants where bi-directional fault currents are common.
• Mesh Network Protection: Protecting complex utility topologies where standard overcurrent protection cannot provide adequate speed or selectivity.
