ABB RDCO-03 Communication Module

Description

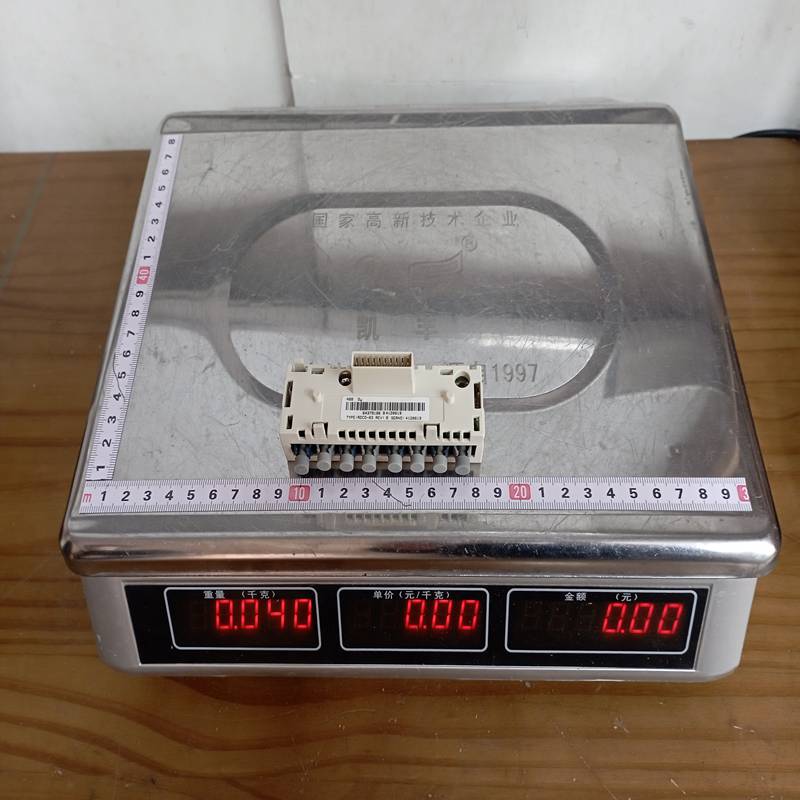

ABB RDCO-03 Communication Module

The ABB RDCO-03 is an optical DDCS (Distributed Drives Communication System) communication adapter module. It is primarily used to provide fiber optic connectivity for ABB high-performance industrial drives, enabling them to communicate with controllers, other drives, or monitoring systems over long distances with zero interference.

## 1. Product Overview

The RDCO-03 module features two pairs of fiber optic channels (transmitter and receiver). It is designed to be plugged directly into the drive’s control unit, facilitating high-speed, deterministic communication using the proprietary ABB DDCS protocol.

## 2. Technical Specifications

## 3. Key Advantages

• Total Noise Immunity: Because it uses fiber optics, the signal is completely immune to electromagnetic interference (EMI) and radio frequency interference (RFI), which is common in high-power industrial environments.

• Galvanic Isolation: Provides physical electrical isolation between the drive and the controller, protecting sensitive electronics from ground loops or high-voltage surges.

• High-Speed Real-time Control: Supports deterministic data exchange, making it ideal for synchronized drive applications where timing is critical.

• Easy Installation: Compact “snap-on” design requires no external power wiring; it draws power directly from the drive’s control unit.

## 4. Common Applications

The RDCO-03 is most frequently found in heavy-duty industrial sectors using the ACS800 or ACS600 series drives:

• Master-Follower Configurations: Linking multiple drives to share load or synchronize speeds (e.g., in paper mills or cranes).

• Controller Interfacing: Connecting drives to an ABB AC 800M controller or other PLC systems via optical links.

• PC Tool Connection: Used to connect a PC for advanced commissioning and monitoring using DriveWindow software.

• I/O Expansion: Linking the drive to remote optical I/O stations.

## 5. Important Considerations & Precautions

Caution: Fiber optic cables are fragile. Handling them incorrectly is the #1 cause of communication failure in these modules.

• Bending Radius: Never bend the optical fiber cables tighter than the manufacturer’s specified radius (usually 30-50mm). Kinking the cable will snap the internal core.

• Cleanliness: Always keep the dust caps on the RDCO-03 ports when not in use. Even a microscopic speck of dust on the lens can cause data loss.

• Channel Mapping: Ensure you connect the “T” (Transmitter) of the module to the “R” (Receiver) of the opposite device.

• Compatibility: Verify that your drive’s firmware supports DDCS communication before installation.
