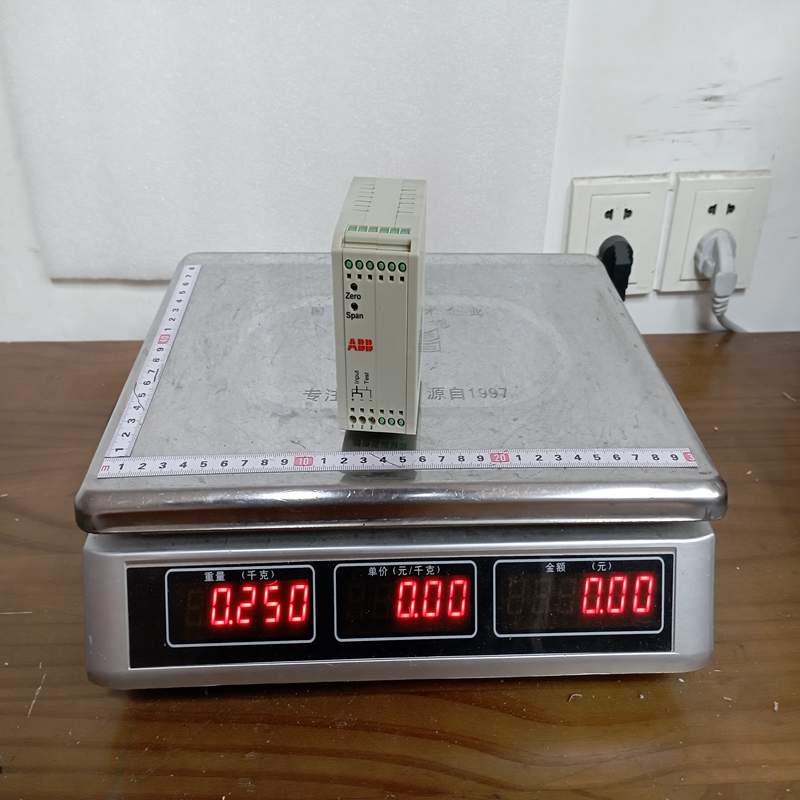

ABB PXA45-1015 I/P Current to Pneumatic Converter

Description

ABB PXA45-1015 I/P Current to Pneumatic Converter

The ABB PXA45-1015 is a high-precision, high-density I/P (Current-to-Pneumatic) Converter module. It belongs to the legacy but highly reliable PXA45 series, engineered primarily for control room environments or cabinet installations where bridging electronic automation systems (DCS/PLC) and pneumatic field devices is required.

Product Detailed Description

The PXA45-1015 functions as an electro-pneumatic transducer. It converts a standard electronic control signal (typically 4 to 20 mA) into a proportional pneumatic output pressure (typically 0.2 to 1.0 kgf/cm² or 3 to 15 psi).

Unlike rugged, field-mounted I/P positioners that sit directly on top of control valves, the PXA45-1015 is designed as a plug-in rack module. This architecture allows users to consolidate multiple converters into a single centralized rack file, simplifying mass air supply lines and signal wiring.

Technical Parameters

Product Advantages

• Space-Saving Density: The plug-in card design maximizes cabinet space. Dozens of channels can be managed within a single 19-inch rack enclosure.
• Auto-Sealing Pneumatic Ports: When a module is pulled out of its slot for maintenance or replacement, the rack’s integrated pneumatic connectors automatically seal. This prevents air pressure drops across the rest of the manifold and allows for hot-swapping.
• High Vibration Resistance: Utilizing a robust force-balance mechanism with a specialized nozzle-flapper assembly, the module remains highly accurate and stable even in environments with structural vibrations.
• Excellent Dynamic Response: Low air consumption coupled with a high air delivery capacity ensures fast, real-time response to transient changes in the 4–20 mA control loops.

Important Considerations & Precautions

• Instrument Air Quality: The supply air must strictly conform to instrument-grade standards (clean, dry, and entirely oil-free). Particulates or moisture will easily clog the ultra-fine nozzle-flapper mechanism, leading to output drift or total failure.
• Orientation Calibration: The mechanical force-balance system inside the module is sensitive to gravity. Ensure the rack file is mounted perfectly upright, and perform zero/span calibration after the module is locked into its final mounting position.
• Supply Pressure Regulation: Keep the air supply strictly regulated at 1.4 kgf/cm^2. Variations in supply pressure will negatively affect the accuracy of the output signal.
• Input Impedance/Polarity: Verify the loop impedance capability of your PLC/DCS analog output card. Ensure proper wiring polarity, as reverse polarity will result in zero pressure output.

Product Applications

The PXA45-1015 is widely used in heavy industries where pneumatic actuators are preferred for their speed, torque, and fail-safe characteristics:

• Petrochemical & Refining: Centralized cabinet control for remote pneumatic control valves across process lines.
• Power Generation: Regulating secondary air dampers, water feed valves, and steam control loops.
• Pulp & Paper Mills: Managing tension and precise fluid flow control loops in highly automated paper machines.
• Legacy System Upgrades: Serving as the key interfacing layer when retrofitting modern digital DCS systems into older plants with well-established pneumatic infrastructure.
